Enhance your ride and go farther with the flexible external battery for Gain.
Enhance your ride and go farther with the flexible external battery for Gain.
Orbea

Orbea X20 Range Extender Kit

£449.00
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Orbea X20 Range Extender Kit

Season:2023

Brand:Orbea

Code:Y0470000

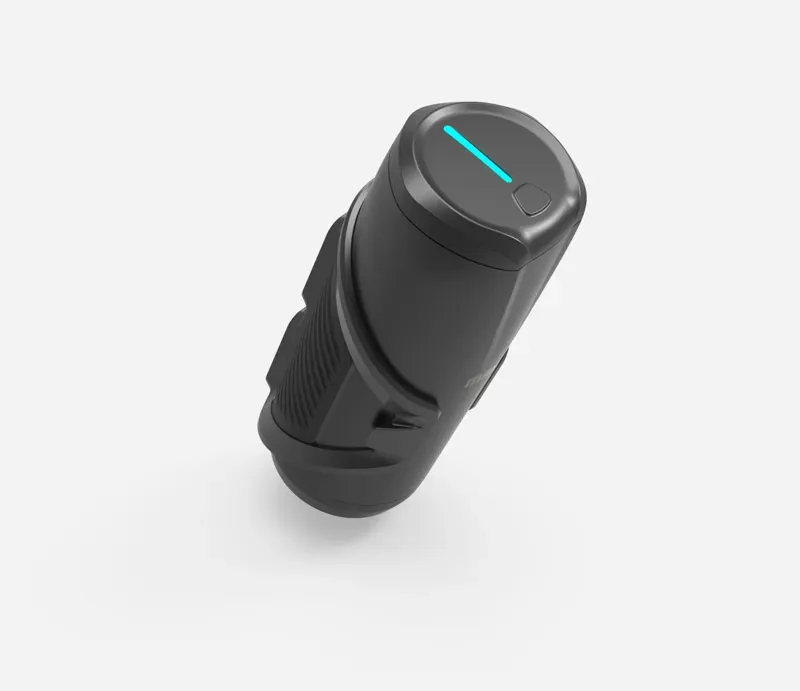

Enhance your ride and go farther with the flexible external battery for gain.

The X20 Range Extender makes bigger challenges and longer adventures possible.

When attached to Gain, the Range Extender supplements the bike's main internal battery, which has a current capacity of 250W / h, and adds an additional 171W / h. This brings the total battery capacity to 426W / h, giving a 70% boost to the internal battery's charge.

Flexible!

The X20 Range Extender can be added in seconds, or removed and left at home.

Features:
  • The X20Range Extender is compatible with Gain M models from 2023
  • The X20 Range Extender gives you another 171Wh offering nearly 70% of additional boost
Specifications:
  • Weight: 1,100 g
  • Waterproofness IP67
  • Capacity: 171 Wh
  • Nominal voltage: 36 v
  • Rated capacity: 4.73 Ah
  • Max. charging current: 2.51 A
  • Max. discharging current: 12 A
  • Dimensions: 195 x 75 mm (Height x Diameter)
  • Operational temperature: 60 °C / -20 °C
  • Storage temperature: -10 °C / 20 °C"

Box contents

  • X20 Range Extender
  • Bottle cage
  • Connector
  • Rubber mounting strap
  • Screws
  • Mounting Washers
Sizing Information
Mountain/Leisure Bikes

Rider Height (ft/in)Rider Height (cm)Orbea Mountain Bike Size
4'11" - 5'3"150 - 160 cmXS
5'3" - 5'6"160 - 168 cmS
5'6" - 5'9"168 - 175 cmM
5'9" - 6'0"175 - 183 cmL
6'0" - 6'3"183 - 191 cmXL
6'3" - 6'7"191 - 200 cmXXL

Road/Gravel Bikes

Rider Height (ft/in)Rider Height (cm)Orbea Road Bike Size
4'10" - 5'1"147 - 155 cm47-49cm
5'1" - 5'4"155 - 163 cm49-51cm
5'4" - 5'7"163 - 170 cm51-53cm
5'7" - 5'9"170 - 175 cm53-55cm
5'9" - 6'0"175 - 183 cm55-57cm
6'0" - 6'2"183 - 188 cm57-59cm
6'2" - 6'5"188 - 196 cm59-61cm
6'5" - 6'8"196 - 203 cm61-63cm


Please note that this is a general guideline, and you should always refer to the specific bike's geometry chart to ensure a proper fit. Please visit Orbea for more information
