In the spirit of urban functionality and easy use, we have developed a new transportation concept to complement the way your life interacts with your environment. The vibe is a sophisticated accessory that echoes your sense of style without overshadowing it - a sleek, fun, reliable tool that can be easily maneuvered into apartments or workplaces.
In the spirit of urban functionality and easy use, we have developed a new transportation concept to complement the way your life interacts with your environment. The vibe is a sophisticated accessory that echoes your sense of style without overshadowing it - a sleek, fun, reliable tool that can be easily maneuvered into apartments or workplaces.
Orbea

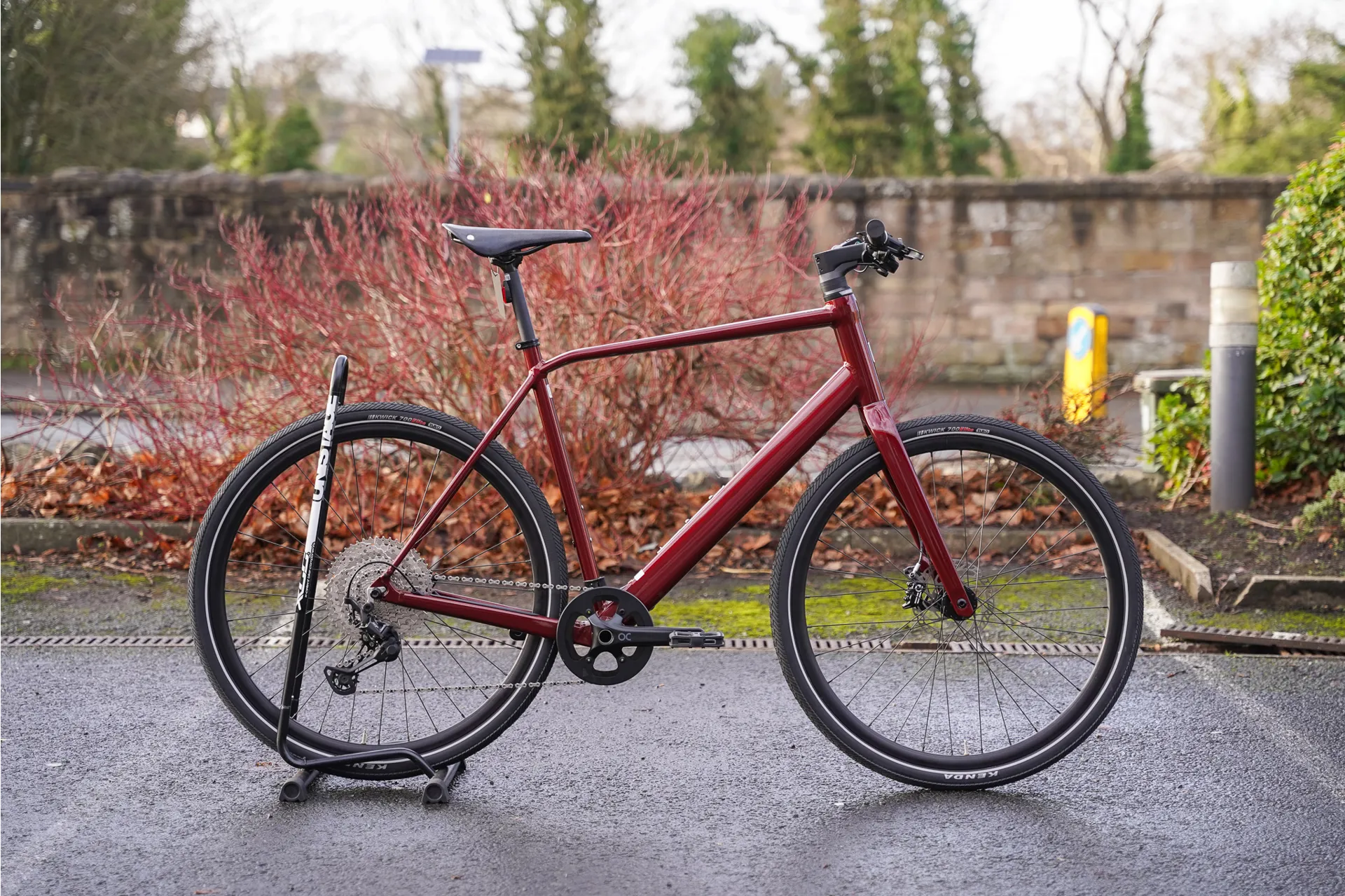

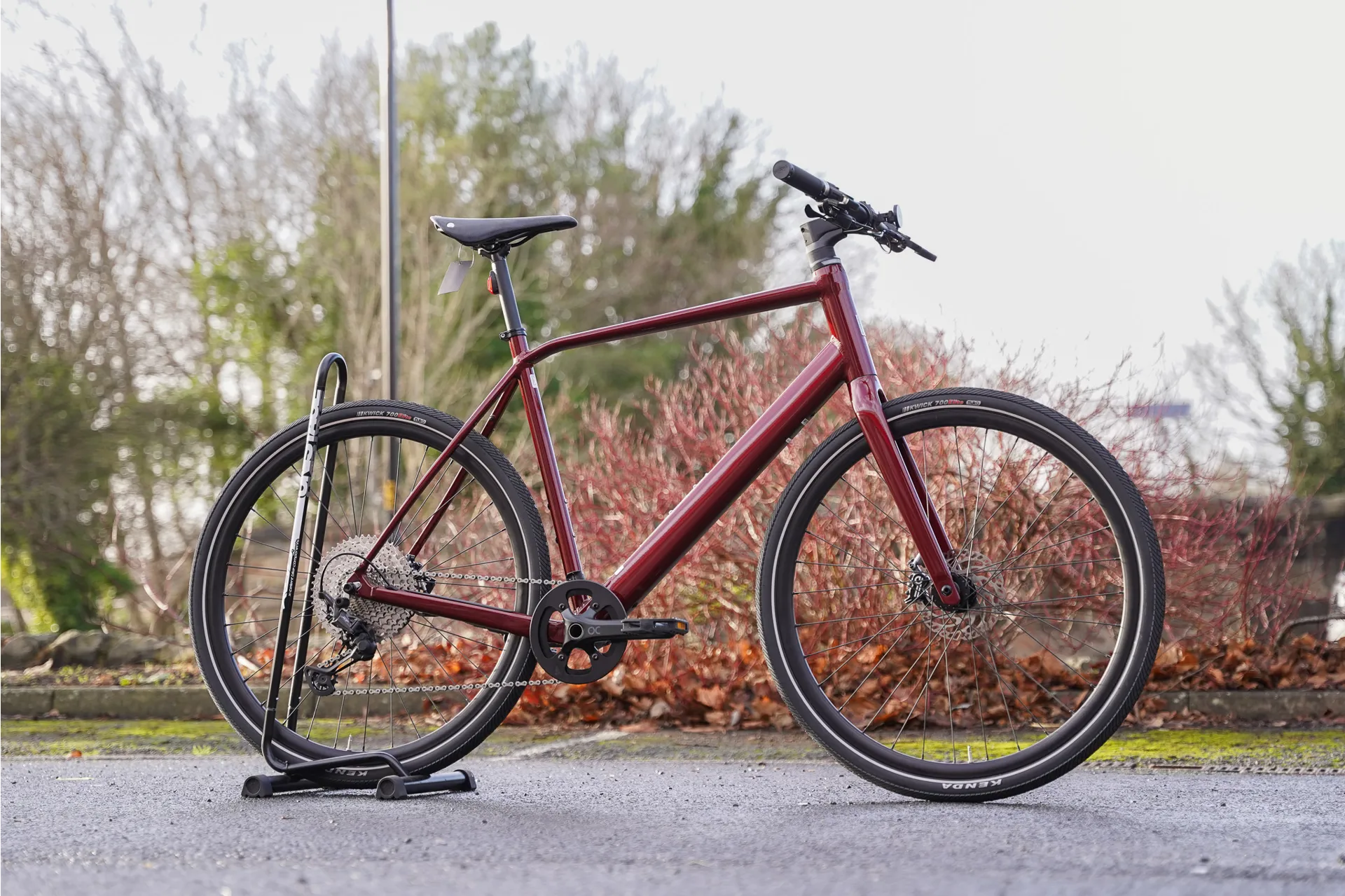

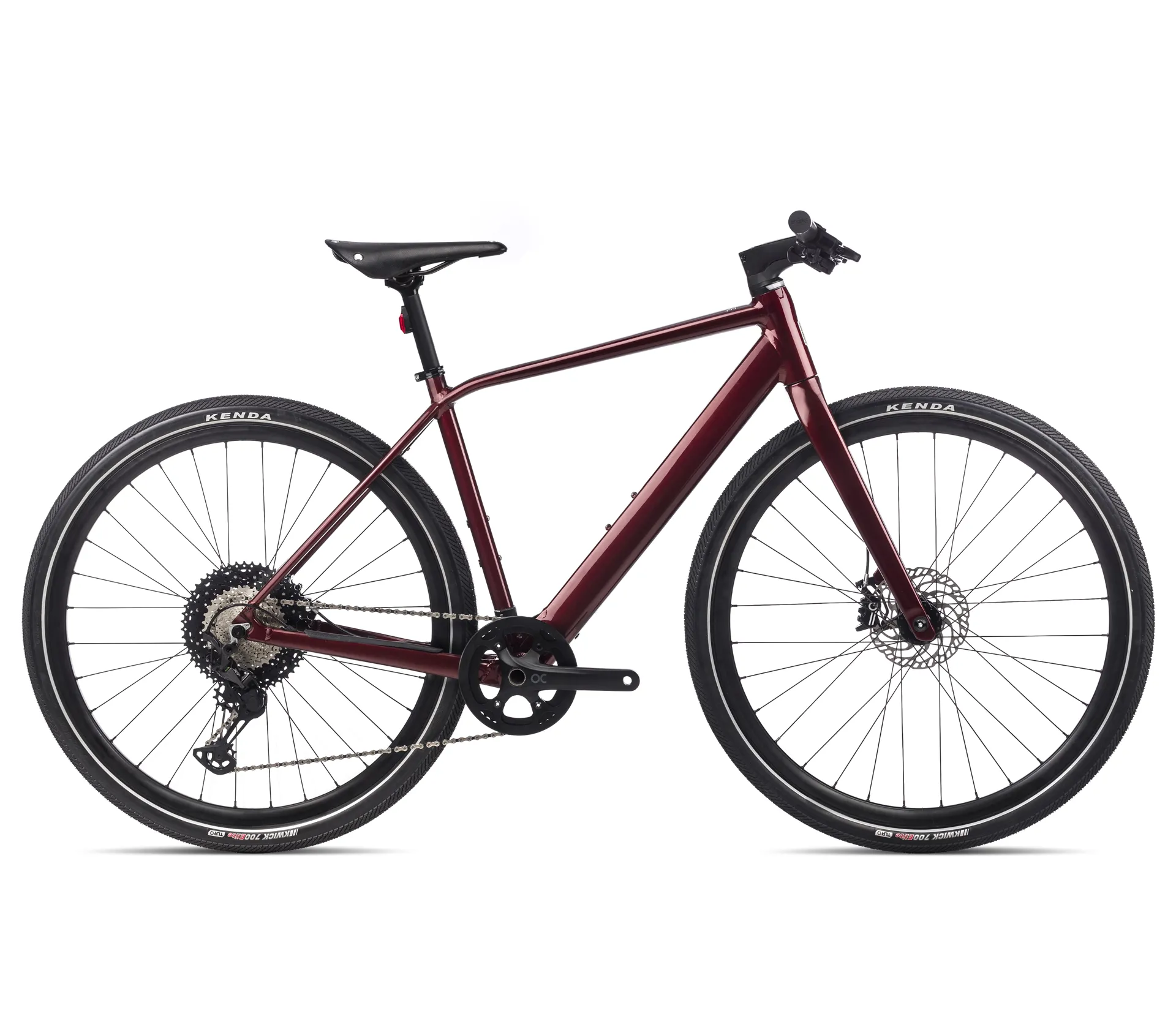

Orbea Vibe H10 XL Metallic Dark Red

£1,956.35 £3,099.00 37% off
Size Guide
Earn
in Customer Rewards when you buy this item today
Sign Up
Sign In
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Orbea Vibe H10 XL Metallic Dark Red

Season:2021

Brand:Orbea

Code:6446260

Orbea 2021 Vibe H10 Small Rust Red

EBIKEMOTION X35 MOTOR:
The heart of Vibe, the rear hub motor is the key to the Enough Energy concept. The sophisticated drive system provides enough smooth and reliable assistance at levels designed to amplify your input as discreetly as possible. And since the motor is at the hub, you’ll experience almost drag-free pedaling when Vibe is not providing a push.

BATTERY:
The battery is one of the most noticeable components of an eBike system, so every step has been taken to find the lightest, smallest and most discreet unit. Vibe’s Enough Energy concept provides you enough battery power, not more. It eliminates the need for a bulky, high-output battery that needs to be removed from the bike.

INTEGRATION:
Vibe controls and interfaces are integrated or hidden without losing sight of easy usability and access for maintenance. From the system cables to electronic controls, all cables are routed so they’re almost invisible. The grips are simple and functional; the iWOC TRIO controller is in an easy-to-reach location, and the sleek Knog Oi bell is easily accessible.

Orbea Vibe H10 2021 E-bike Key Features:
  • Ebikemotion X35 Power Unit
  • Shimano Gearing
  • Magura Hydaulic Disc Brakes
  • Front & Rear Lights
Technical Information

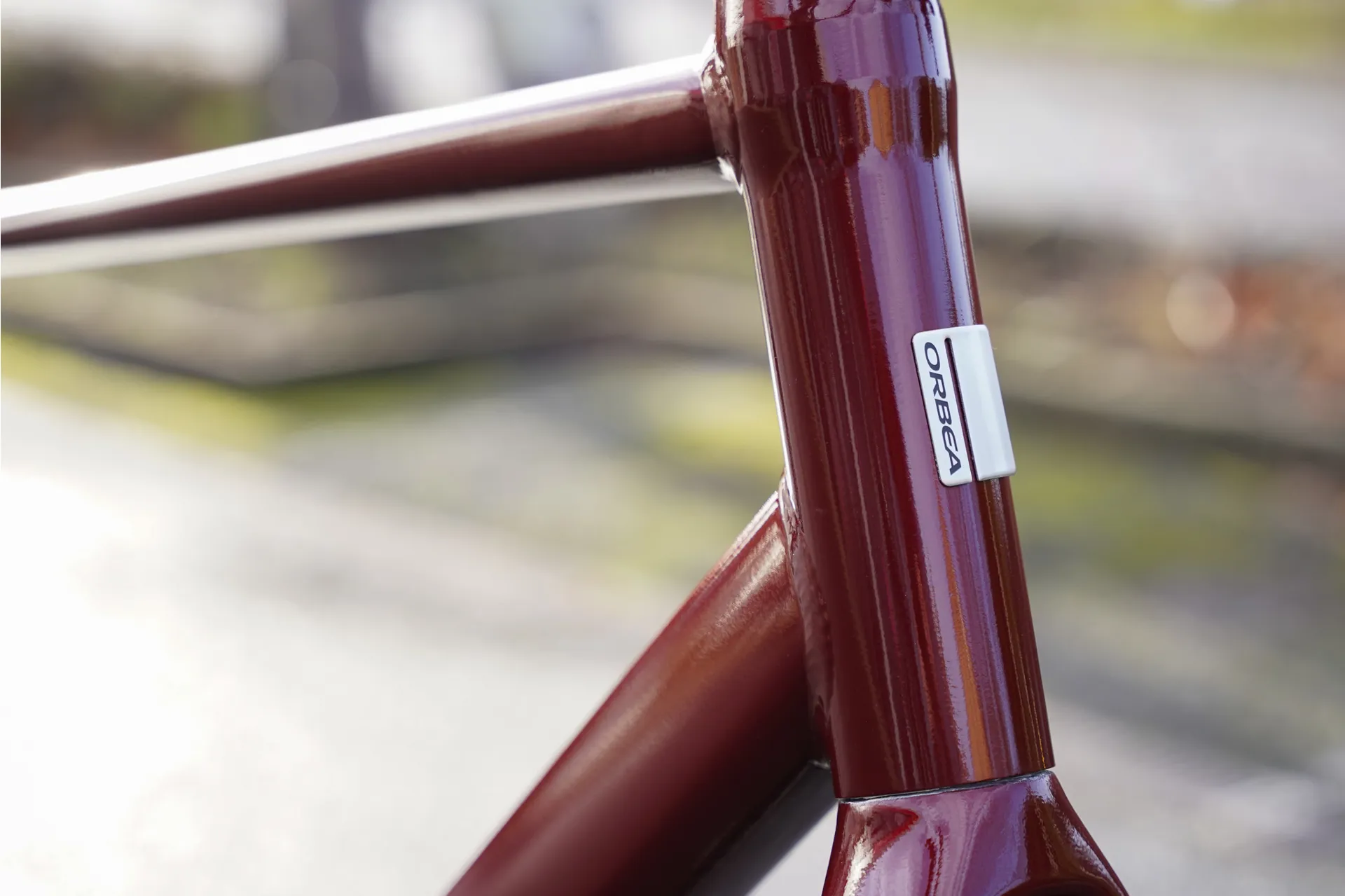

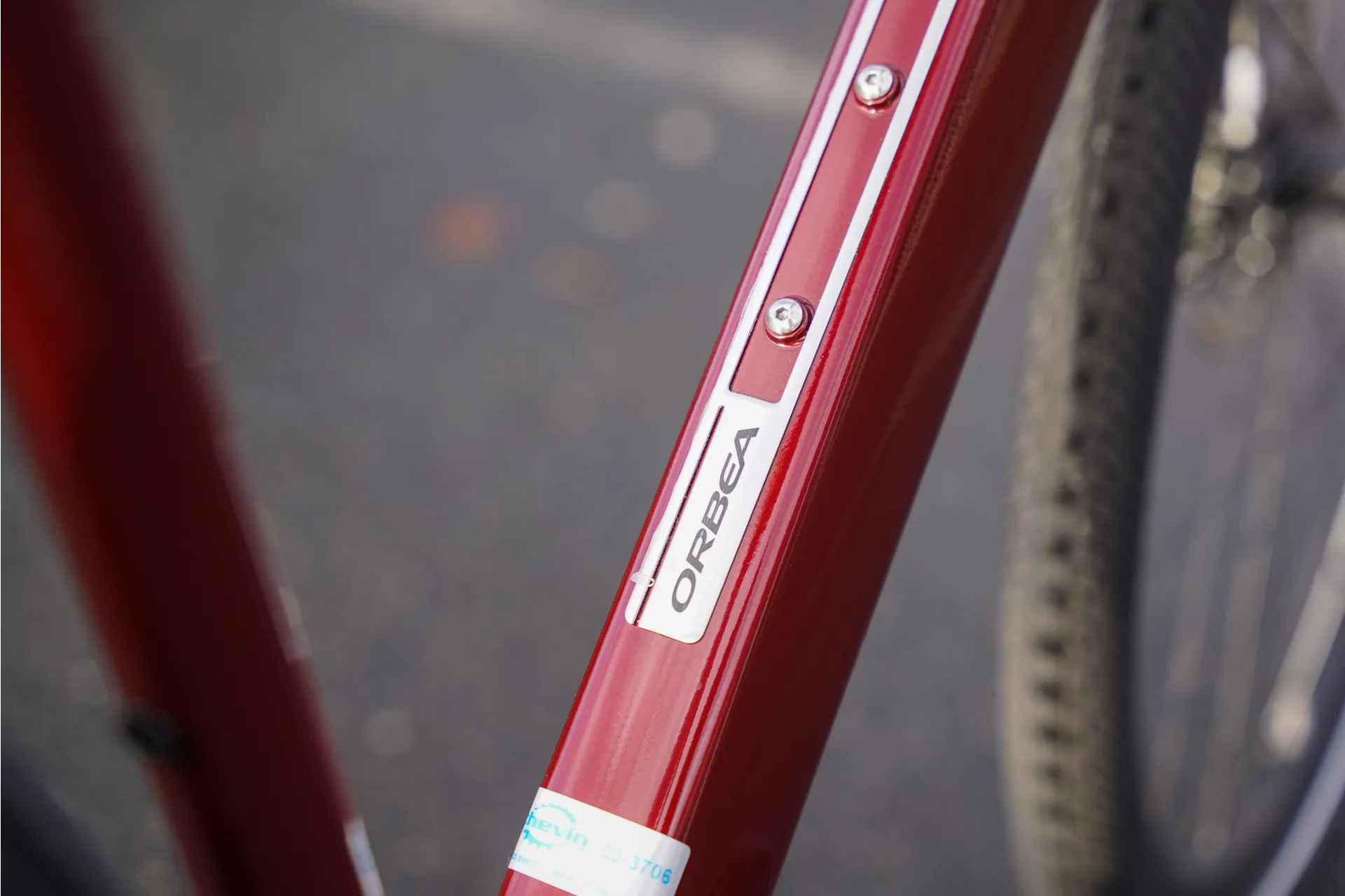

Frame:Orbea Vibe Top Bar Hydro 6061 Hydroform Aluminum 2021, ICR cable routing, Forged BB, 135x9 QR, Flat Mount disc, 700x45 maximun tire, 1" 1/2 semi head set, 41x86,5 Pressfit BB, carrier and fenders compatible
Fork:Orbea Vibe carbon fork, full carbon, 1-1/5, 700x45 maximun tire, flat mount disc mount, Thrue Axle12x100mm, Long mudguards compatible.

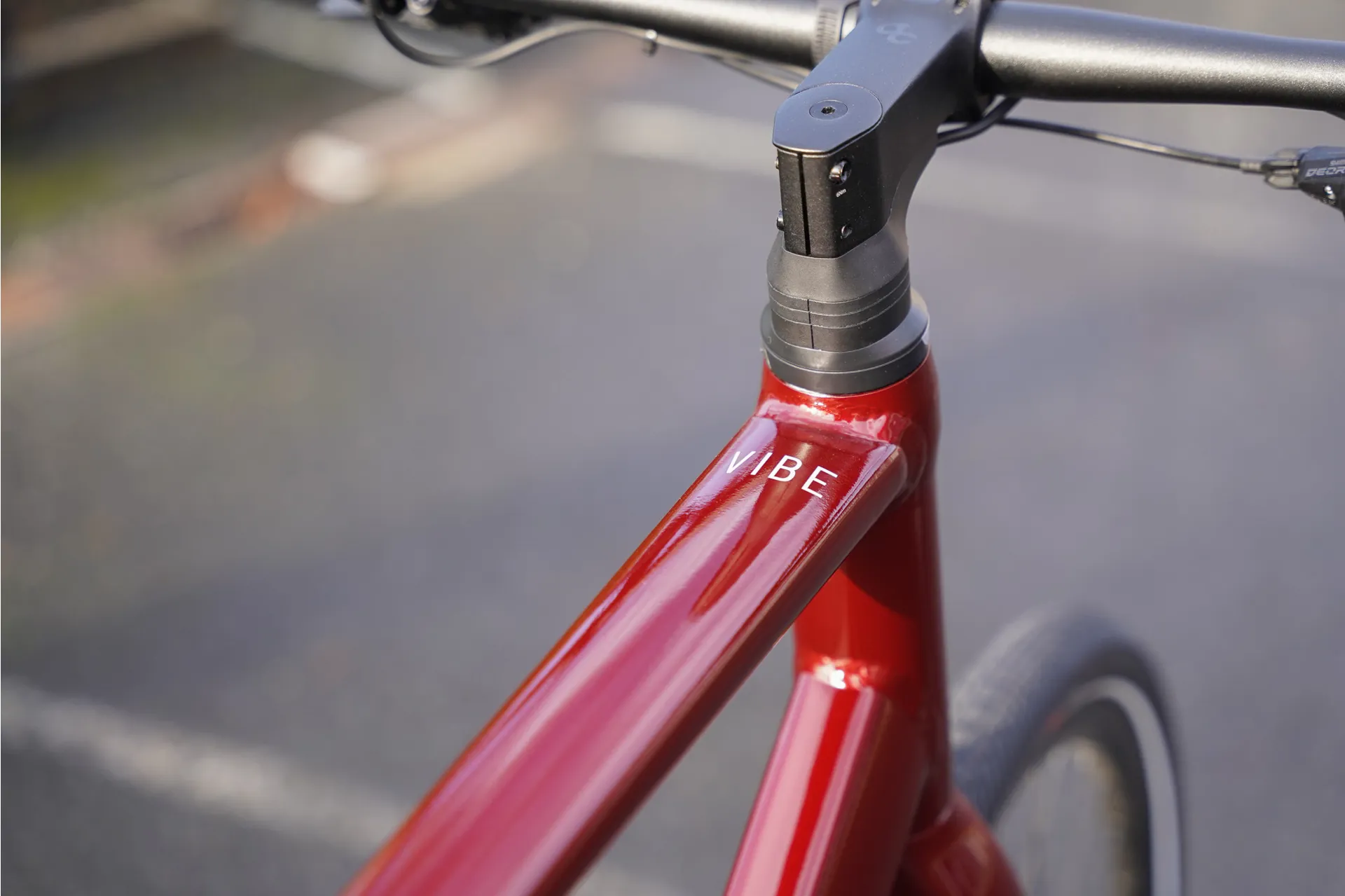

Headset:Acros Alloy 1-1/2" Internal Cable Routing
Stem:OC1 31.8mm interface -6º
Handlebar:Alloy 31.8mm 12mm Rise 700mm

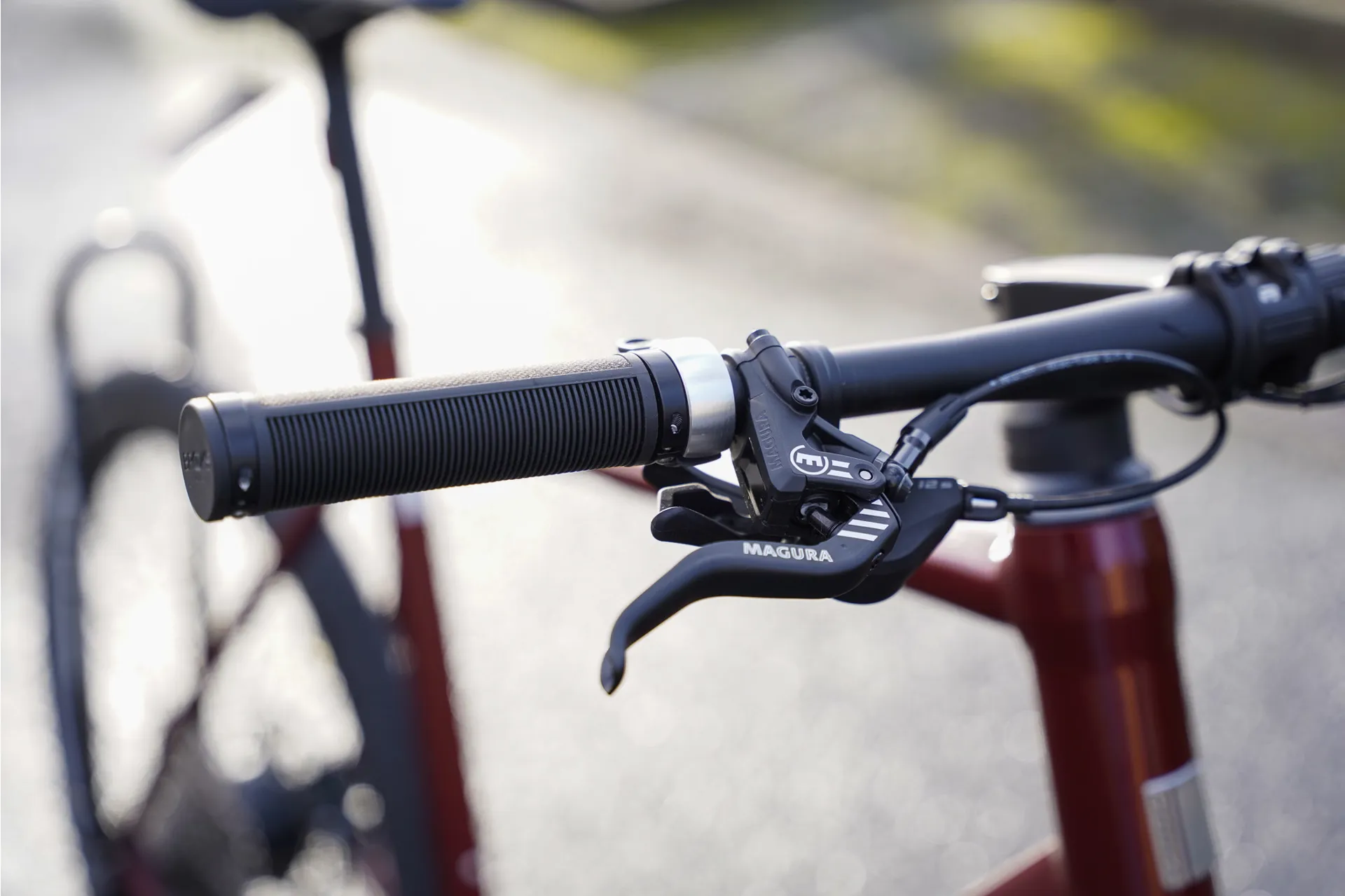

Brakes:Magura MT5 E-STOP Hydraulic Disc Easy Route Connection

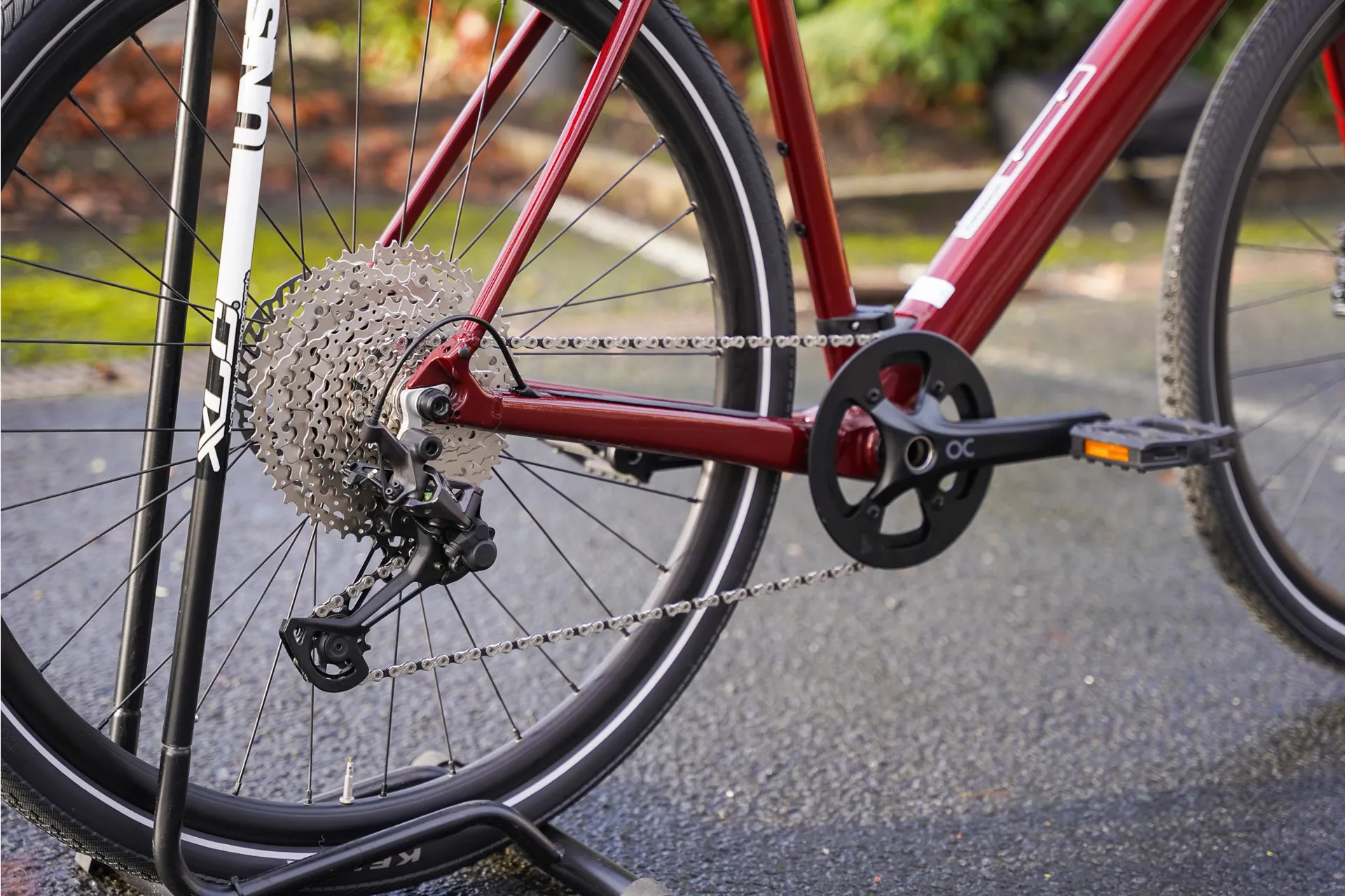

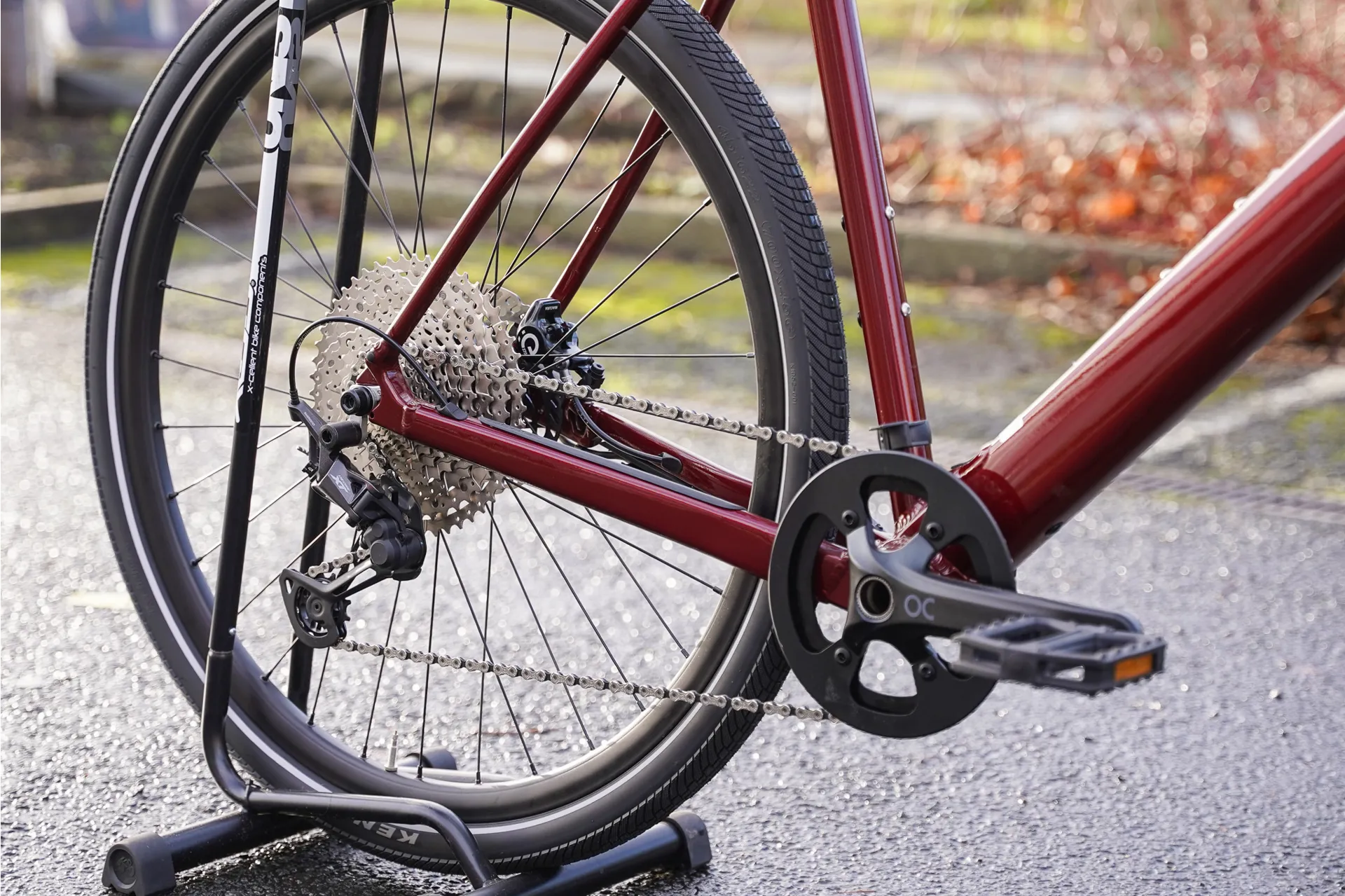

Rear Derailleur:Shimano XT M8100 SGS Shadow Plus
Shifters:Shimano Deore M6100
Cassette:Sun Race CSMZ80 11-51t 12-Speed Metalic E-bike
Chain:KMC X12
Pedals:VP-537 Black
Crankset:OC 42t, w/Chainguard
Wheels:Orbea OC1
Front Hub:Orbea Thru Axle 12x100mm M12x2 P1 Hollow
Seatpost:OC 27.2 Offset 0, for integrated light
Saddle:Brooks Cambium C15 283x140
Front Light:Front position light, on head tube, COB Led, On/Off, 60 Lumen, ECE50.
Rear light:Lezyne FENDER STVZO seatpost mounting 11 lumens
Battery:Mahle 36V/6.9A 248Wh ANT+
Motor:Mahle motor hub X35 Plus 25kmh
Charger:Mahle X35

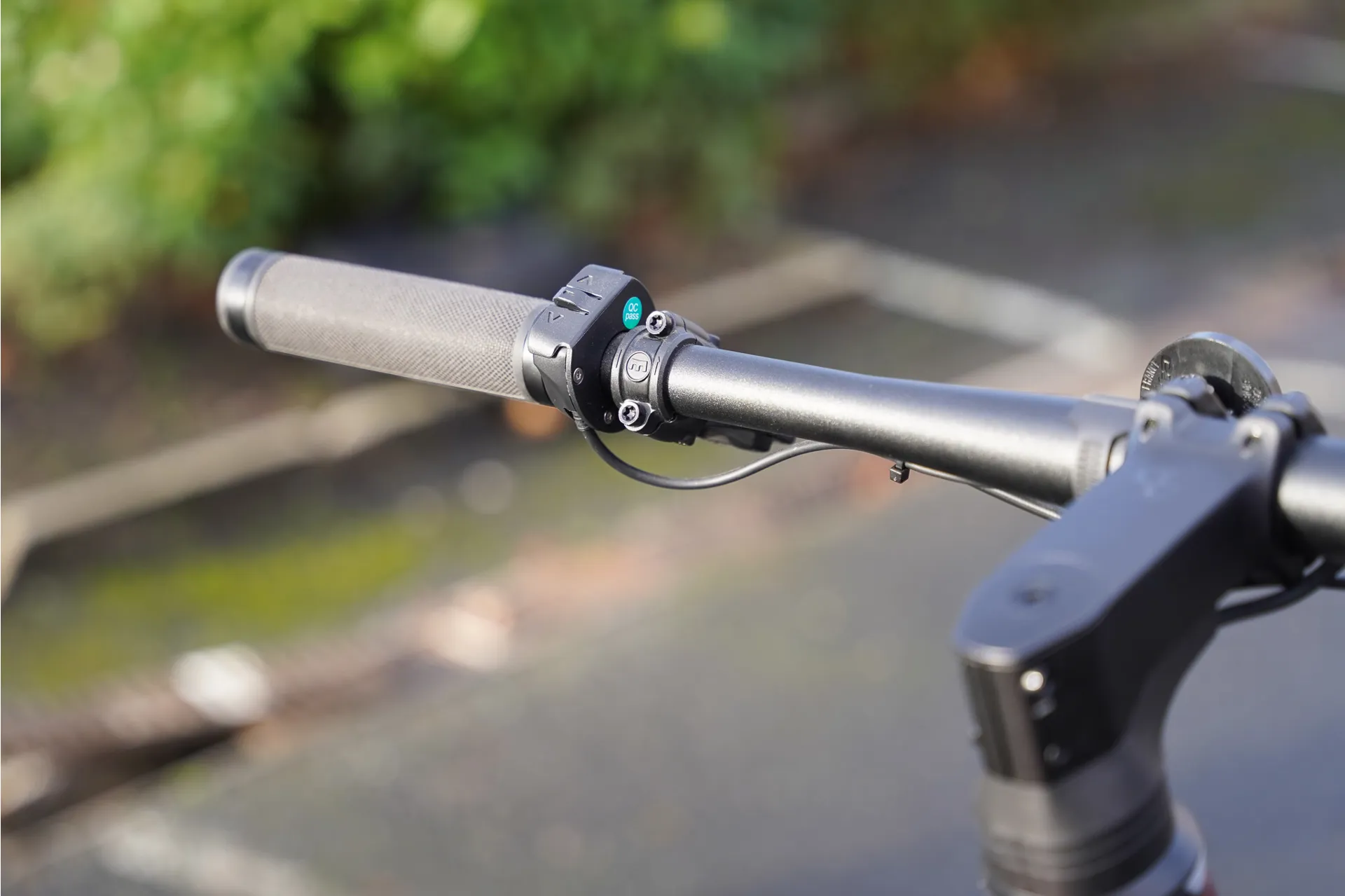

Remote:Mahle iWoc TRIO
Bell:Knog OI Classic
Grips:Brooks Comfort Cambium 130mm

Sizing Information
Mountain/Leisure Bikes

Rider Height (ft/in)Rider Height (cm)Orbea Mountain Bike Size
4'11" - 5'3"150 - 160 cmXS
5'3" - 5'6"160 - 168 cmS
5'6" - 5'9"168 - 175 cmM
5'9" - 6'0"175 - 183 cmL
6'0" - 6'3"183 - 191 cmXL
6'3" - 6'7"191 - 200 cmXXL

Road/Gravel Bikes

Rider Height (ft/in)Rider Height (cm)Orbea Road Bike Size
4'10" - 5'1"147 - 155 cm47-49cm
5'1" - 5'4"155 - 163 cm49-51cm
5'4" - 5'7"163 - 170 cm51-53cm
5'7" - 5'9"170 - 175 cm53-55cm
5'9" - 6'0"175 - 183 cm55-57cm
6'0" - 6'2"183 - 188 cm57-59cm
6'2" - 6'5"188 - 196 cm59-61cm
6'5" - 6'8"196 - 203 cm61-63cm


Please note that this is a general guideline, and you should always refer to the specific bike's geometry chart to ensure a proper fit. Please visit Orbea for more information
