Compact cargo bike designed to safely carry 2 kids, with plenty of heel clearance for the rider even if the kiddos require child seats
Compact cargo bike designed to safely carry 2 kids, with plenty of heel clearance for the rider even if the kiddos require child seats
Tern

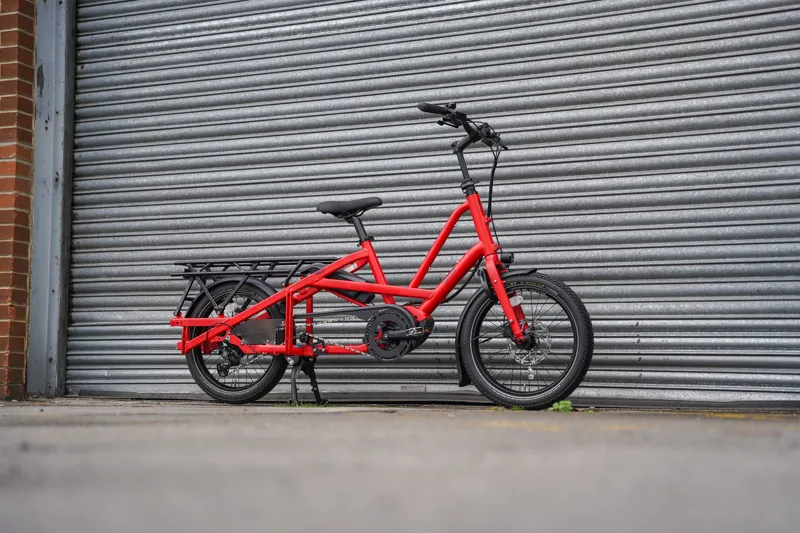

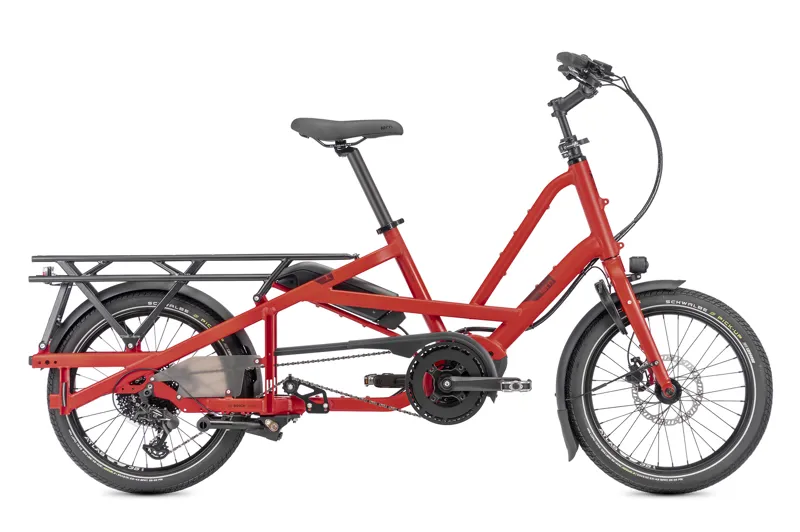

Tern Quick Haul Long D9 Traffic Red 400WH

£3,500.00
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Tern Quick Haul Long D9 Traffic Red 400WH

Season:2025

Brand:Tern

Code:HS87116010

  • Powerful Bosch Cargo Line motor provides up to 85 Nm of torque and up to 400% support
  • Easy-to-use, intuitive Bosch e-bike system helps you stay informed and in control on the road
  • Custom 1 x 9-speed e-bike drivetrain with trigger shifter for faster, more precise shifting
  • Built tough for hauling, rated to a maximum gross vehicle weight of 190 kg (419 lb) with a rear rack load capacity of 90 kg (198 lb)
  • Robust, patented Atlas Kickstand keeps the bike steady for safe loading & unloading of cargo and passengers
  • Create customized setups using our wide range of kid & cargo-carrying accessories
  • Adjusts without tools to fit riders 155 - 185 cm (5'1" - 6'1"), weighing up to 120 kg (265 lb)
  • Third-party tested for safety & meets benchmark German cargo bike standard DIN 79010, with the frame and fork tested well beyond the requirements
Technical Information
General Info
Speeds:
1 x 9
Weight:
29.3 kg (64.6 lb)
Gear Inches:
23" - 89" (1.87 - 7.13 m)
Frame Sizes:
One size
Distance: Seatpost to Handlebar:
60 - 64 cm (23.6 - 25.2 in)
Distance: Saddle to Pedal:
76 - 99 cm (29.9 - 39 in)
Suggested Rider Height:
155 - 185 cm (61 - 72.8 in)
Max Gross Vehicle Weight:
190 kg (418.9 lb)
Max Rider Weight:
120 kg (264.6 lb)
Frame
Frame:

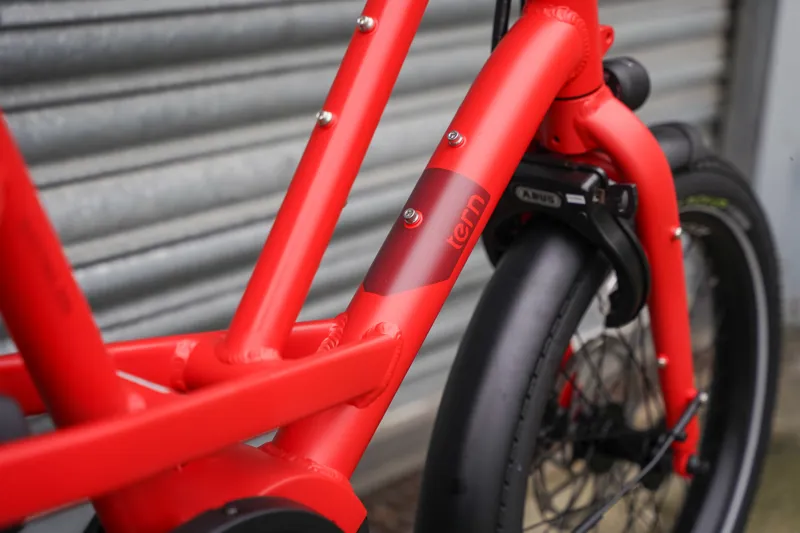

Tern Quick Haul Long, Patented Design, 6061-AL, DIN 79010 certified: 190 kg (419 lb)
Fork:
Cargo, Aluminum alloy, DIN 79010 certified: 190 kg (419 lb)
Cockpit
Stem:
Speedlifter, adjustable, 3D forged stem, 31.8
Headset:
TH, cartridge bearings
Handlebar:
Low riser ergo, 31.8, 6061-AL
Grips/Bar Tape:
Velo ergonomic, lock-on
Saddle:
Velo Comfort
Seatpost:
34.9 mm, 6061-AL, micro-adjust clamp
Seatpost Clamp:
Tern Collar
Brakes
Front Brake:
Tektro hydraulic disc
Rear Brake:
Tektro hydraulic disc

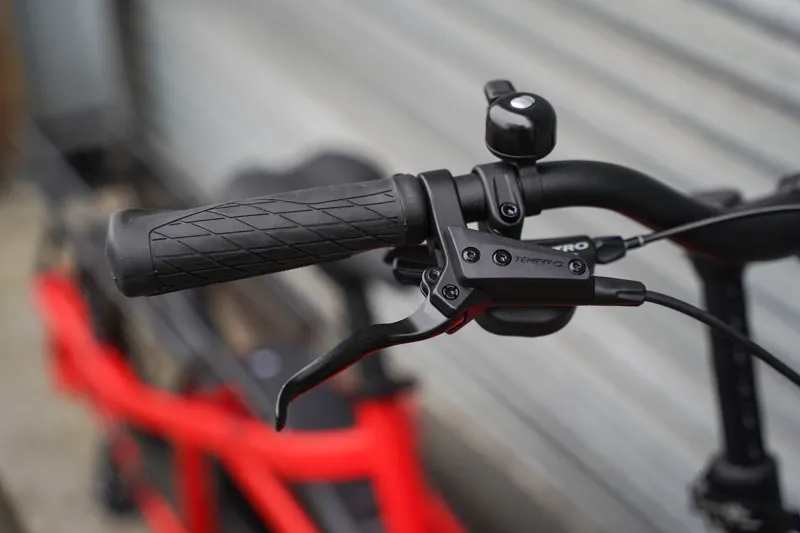

Brake Levers:
Tektro hydraulic disc
Wheels
Front Hub:
Disc, aluminum
Rear Hub:
9 spd, disc, aluminum, Boost
Spokes & Nipples:
Stainless steel
Rims:
Tern Atlas H, cargo
Tyres:

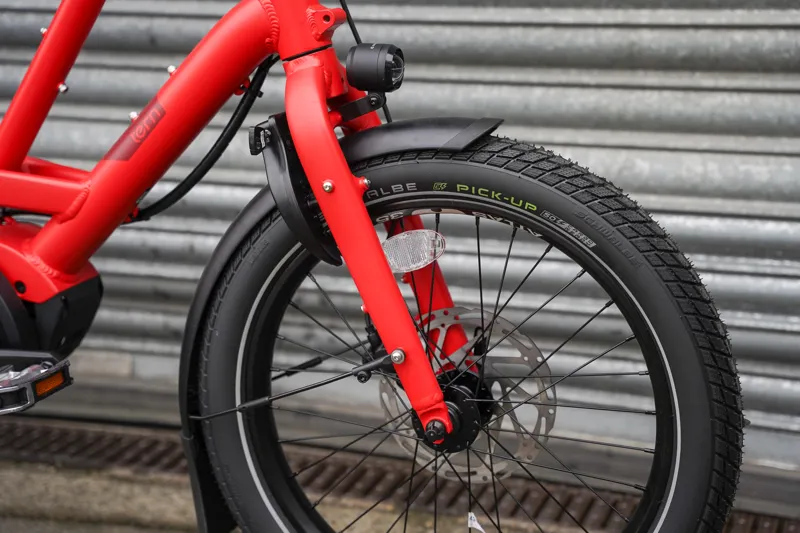

Schwalbe Pick Up, 60-406, Super Defense puncture protection, Reflex
Transmission
Shifter(s):
Tektro, 1 x 9 spd, trigger
Rear Derailleur:
Tektro custom for Tern, 1 x 9 spd
Crankset:

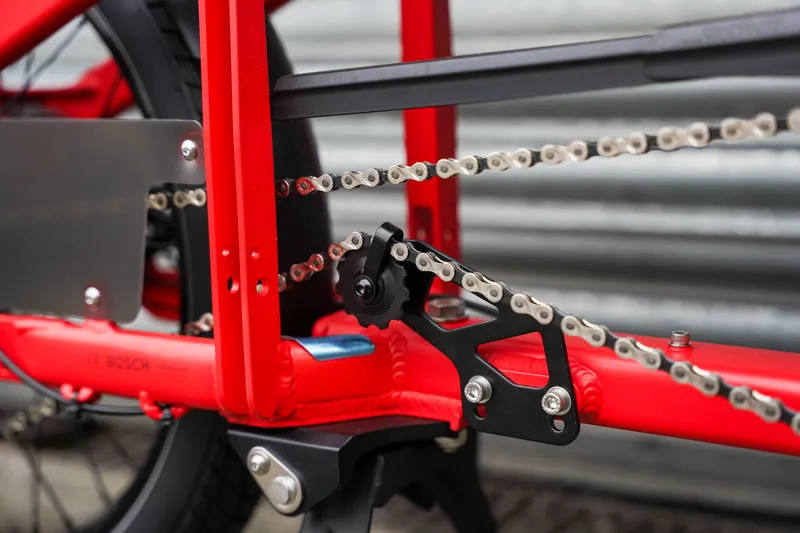

Tern custom, forged 6061-AL crankarm, anti-drop chainring
Cassette/Freewheel:
Tektro 11-42T, 9 spd
Bottom Bracket:
Motor integrated
Chain:
KMC for eBike, 9 spd
Pedals:
Urban with non-slip surface
Shifter Cable & Housing:
SP
E-System
Motor:
Bosch Cargo Line, 400% Assist, 85 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US)
Battery:

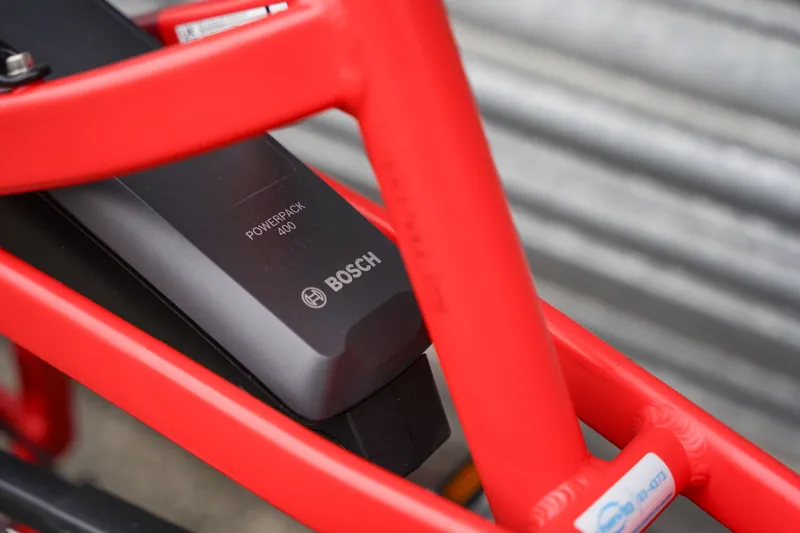

Bosch PowerPack 400
Display:

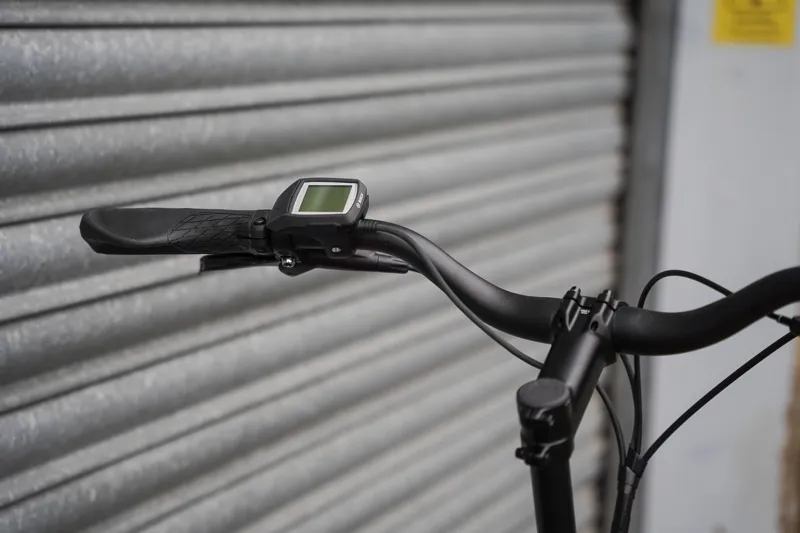

Bosch Purion, 4 mode selectable, walk assist
Range:
400 Wh: 42-85 km (26-53 mi)
Charger:
220V, 4A (EU); 100-240V, 4A (US)
Bells & Whistles
Bell:
Aluminum
Chainguard:
SKS Chainblade
Kickstand:

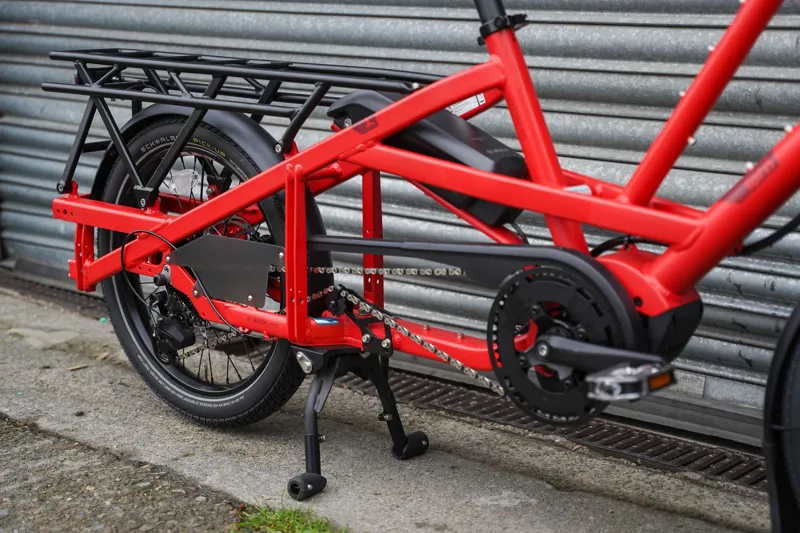

Atlas Kickstand, for cargo
Luggage Socket:
Combo Mount

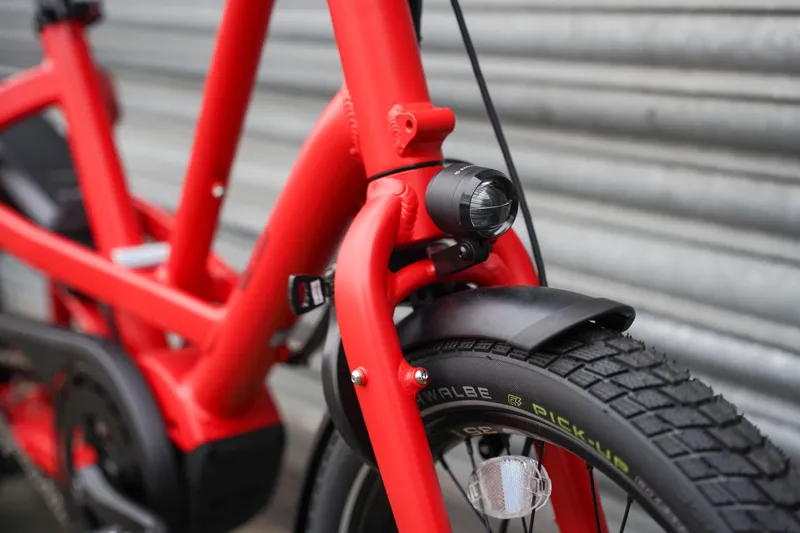

Front Light:
90 lux, StVZO approved
Rear Light:
Herrmans
Fenders:
SplashGuard, stainless hardware
Rack(s):

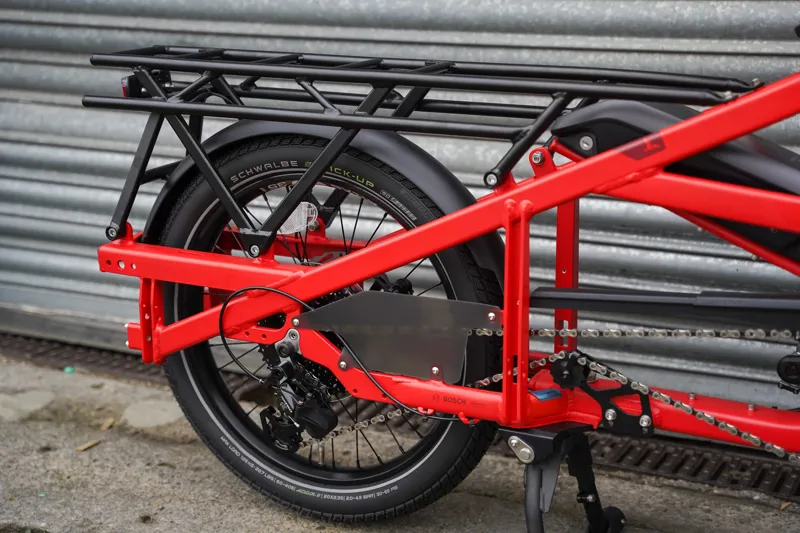

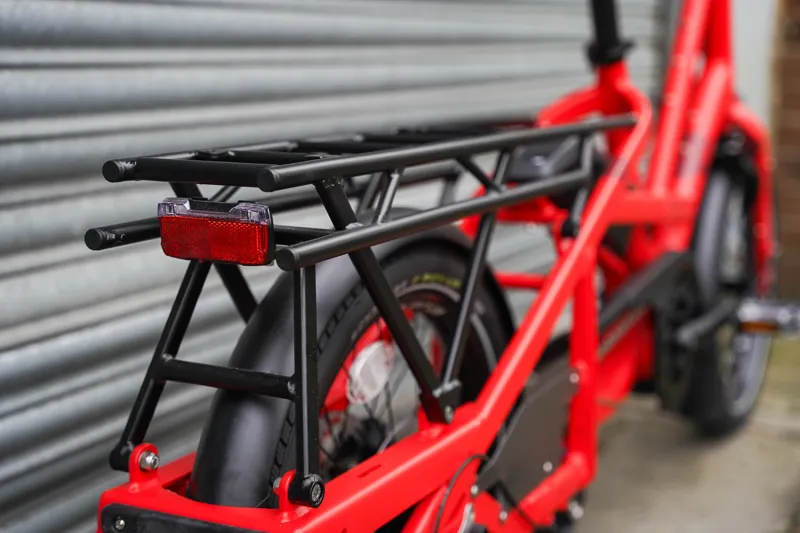

Atlas L, 90 kg (198 lb) capacity
Frame Lock:
ABUS or AXA, keyed-alike with Bosch battery
