The Fuel EXe 9.7 redefines e-mountain biking with a revolutionary motor that tucks away neatly for a ride that's light, lively and just as playful as a traditional mountain bike, with the added benefit of pedal assist to help you crush climbs.
The Fuel EXe 9.7 redefines e-mountain biking with a revolutionary motor that tucks away neatly for a ride that's light, lively and just as playful as a traditional mountain bike, with the added benefit of pedal assist to help you crush climbs.
Trek

Trek Fuel EXe 9.7 eMountain Bike in Lava

£7,400.00
Size Guide
Earn
in Customer Rewards when you buy this item today
Sign Up
Sign In
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

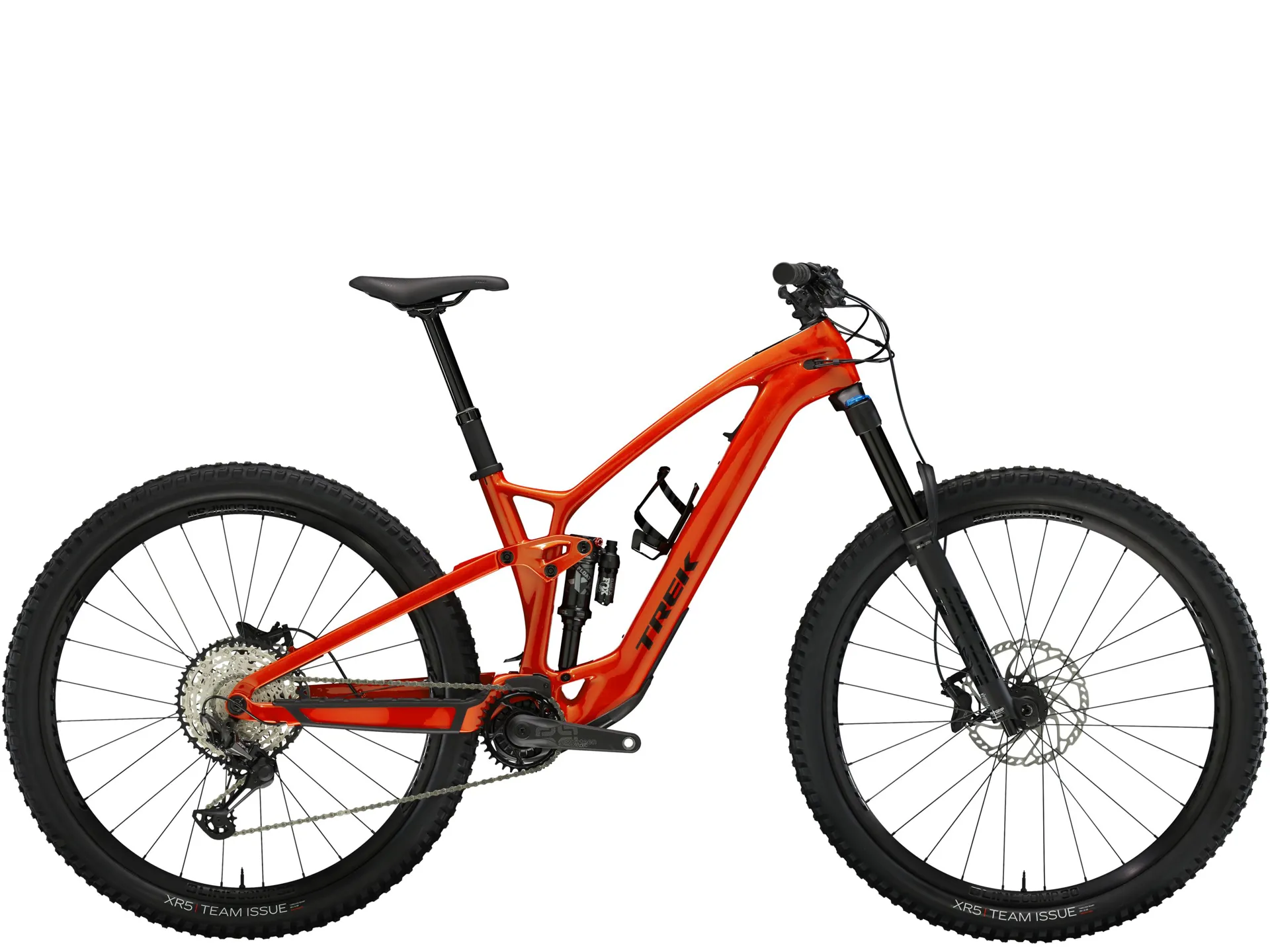

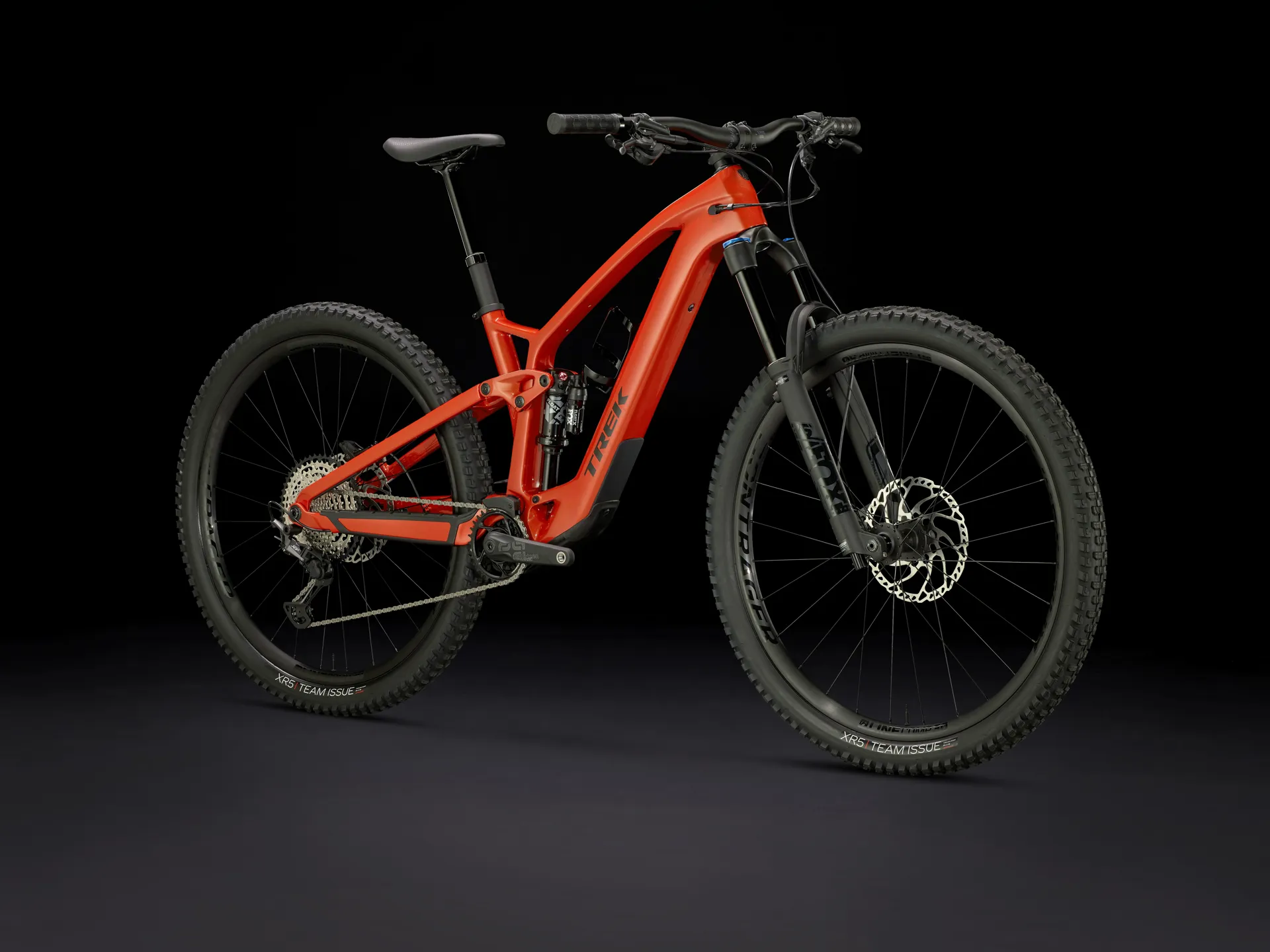

Trek Fuel EXe 9.7 eMountain Bike in Lava

Season:2024

Brand:Trek

Code:41519RED

The Fuel EXe 9.7 redefines e-mountain biking with a revolutionary motor that tucks away neatly for a ride that's light, lively and just as playful as a traditional mountain bike, with the added benefit of pedal assist to help you crush climbs.

An upgraded suspension package pairs with cherry-picked components for snappy shifting and precise modulation on the trail. All that, and a lightweight carbon chassis to keep your ride nimble and stiff with just the right amount of vibration-damping goodness for when the trail gets rowdy.

Features:

  • You'll get a light and playful ride on descents, and just the right amount of assist on the way back up

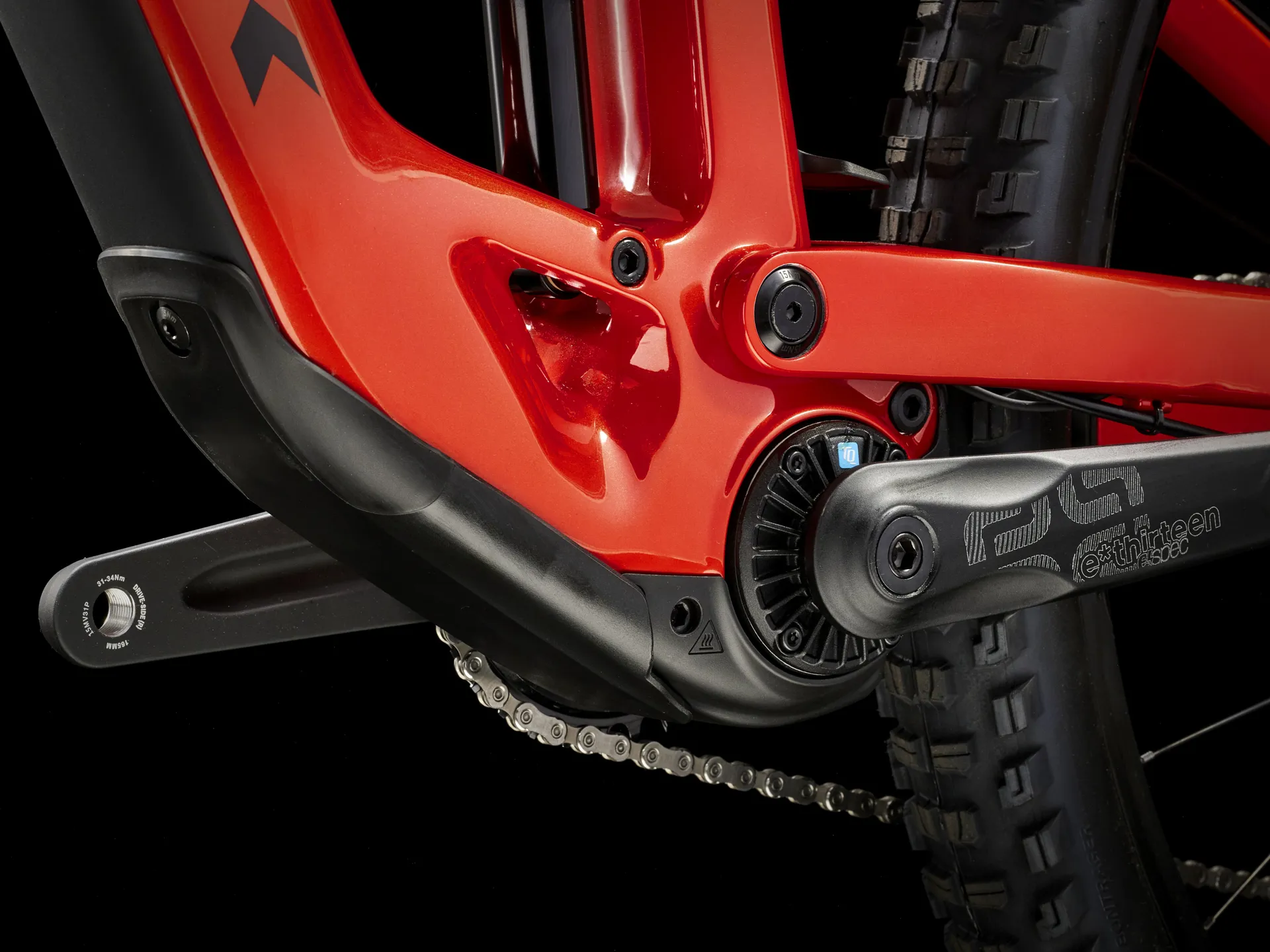

  • Its tiny-but-mighty TQ transmission is tuned for the trail, keeping things quiet so you can stay in the moment, plus it ramps up power with you for a natural ride feel

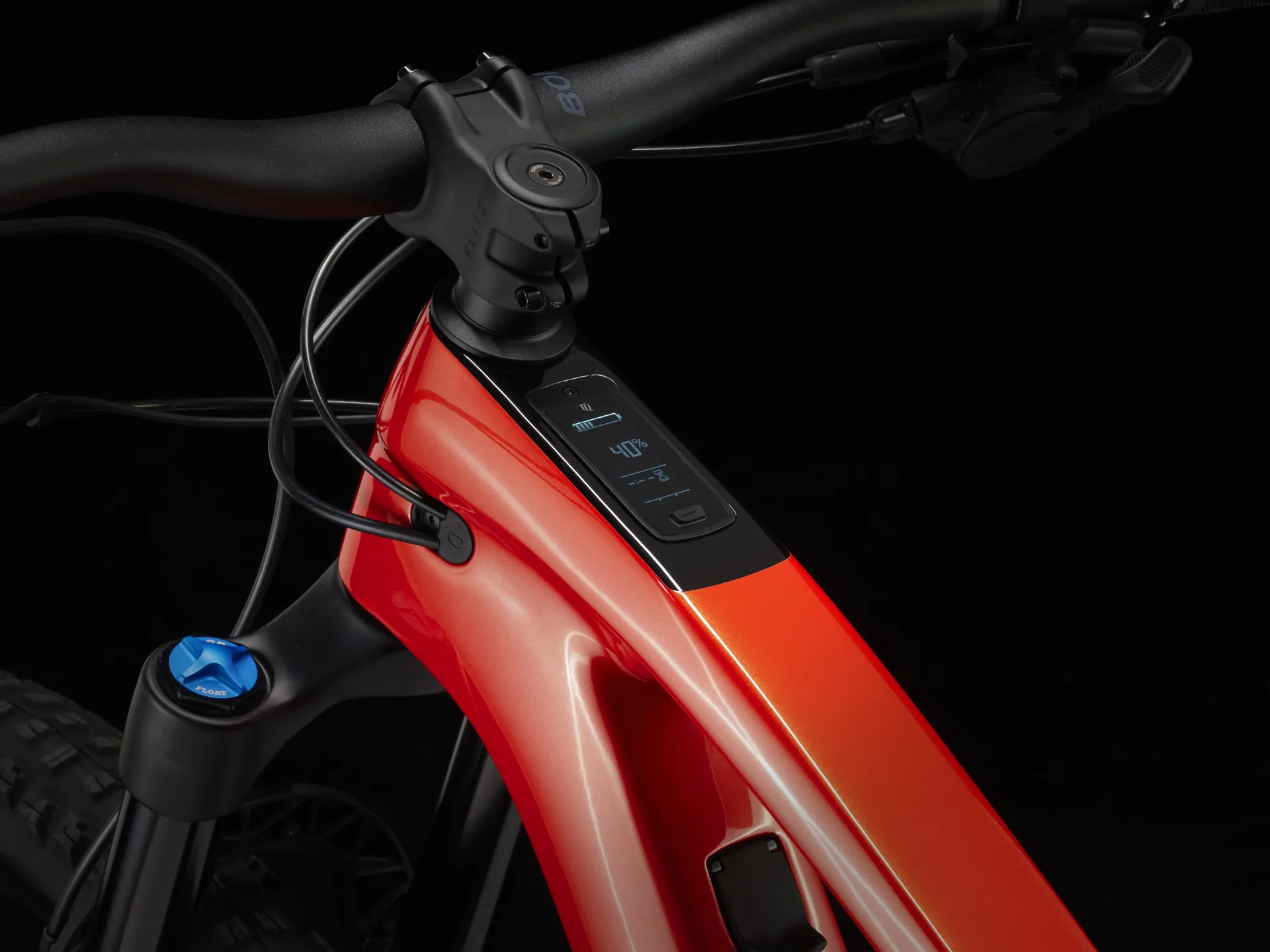

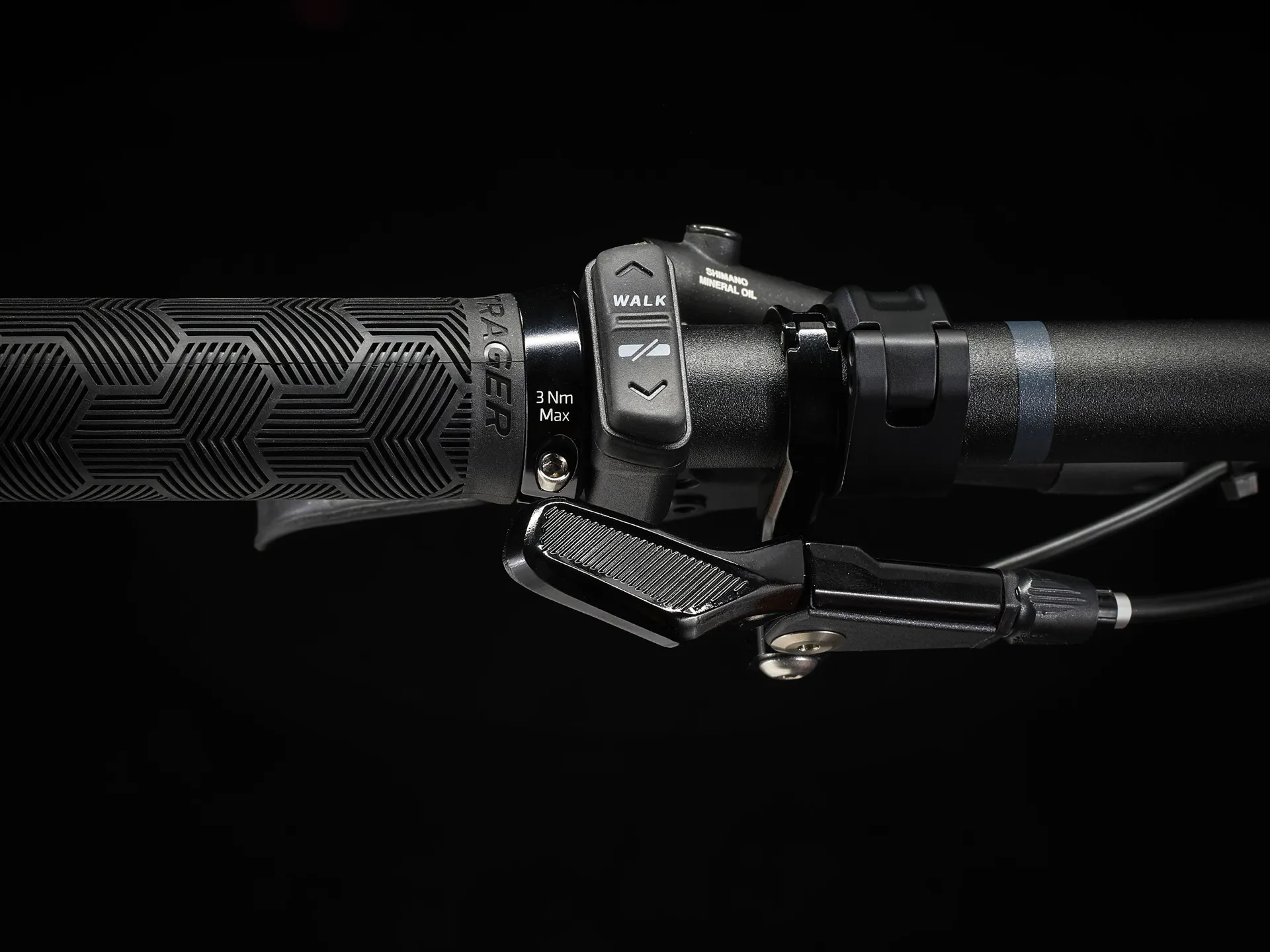

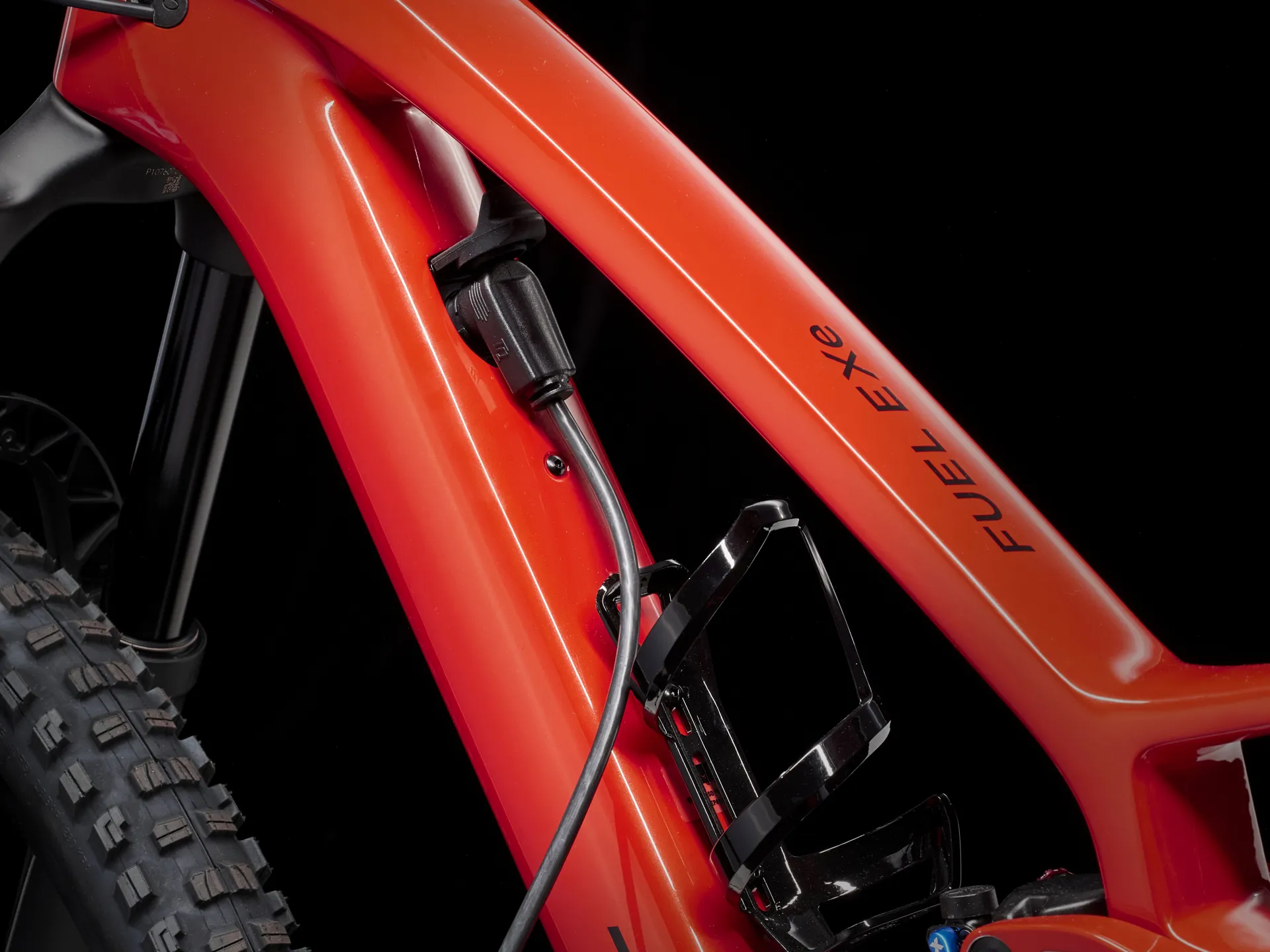

  • The smart charge port, sleek integrated display and discreet controls keep the bike looking and feeling like a traditional mountain bike
  • The battery is simple to remove with an Allen key – no proprietary tools or black magic necessary
  • You'll be able to add on a range extender when you want a little extra fuel in the tank for big days on the bike
Technical Information
  • Frame
    OCLV Mountain Carbon, removable battery, internal routing, alloy rocker link, 34.9 mm seat tube, upper chain guide mount, 55 mm chainline, Mino Link, ABP, Boost148, UDH, 140 mm travel
  • Fork
    Fox Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44 mm offset, Boost110, 15 mm Kabolt axle, 150 mm travel
  • Shock
    Fox Performance Float X, 2-position damper, 205 mm x 60 mm
  • Wheel front
    Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle, 29"
  • Wheel rear
    Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12 mm thru axle, 29"
  • Skewer rear
    Bontrager Switch thru-axle, removable lever
  • Tyre
    Bontrager XR5 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 60 tpi, 29x2.50"
  • Tyre part
    Bontrager TLR sealant, 180 ml/6 oz
  • Shifter
    Shimano SLX M7100, 12-speed
  • Rear derailleur
    Shimano XT M8100, long cage
  • Crank
    E*thirteen E*spec Plus, 165 mm length
  • Chainring
    E*thirteen E*spec, 32T alloy ring, 55 mm chainline
  • Cassette
    Shimano SLX M7100, 10-51T, 12-speed
  • Chain
    Shimano SLX M7100, 12-speed
  • Saddle
    Bontrager Arvada, hollow chromoly rails, 138 mm width
  • Seatpost
    Size: S - TranzX JD-YSP39, 100 mm travel, internal routing, 34.9 mm
    Size: M - TranzX JD-YSP39, 150 mm travel, internal routing, 34.9 mm

    Size: L, XL - TranzX JD-YSP39, 170 mm travel, internal routing, 34.9 mm
  • Handlebar
    Bontrager Line, alloy, 35 mm, 27.5 mm rise, 780 mm width
  • Grips
    Bontrager XR Trail Elite, nylon lock-on
  • Stem
    Bontrager Elite, 35 mm, 0-degree, 45 mm length
  • Brake
    Shimano 4-piston hydraulic disc, M6100 lever, M6120 calliper
  • Brake rotor
    Shimano RT66, 6-bolt, 203 mm
  • Weight
    M - 19.15 kg / 42.22 lbs (with TLR sealant, no tubes)
  • Weight limit
    This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
Sizing Information

Road & Gravel

SizeRider HeightInseam
49156 - 163 cm
(5'1" - 5'4")		74 - 77 cm
(29" - 30")
52163 - 168 cm
(5'4" - 5'6")		76 - 79 cm
(30" - 31")
54168 - 174 cm
(5'6" - 5'9")		78 - 82 cm
(31" - 32")
56174 - 180 cm
(5'9" - 5'11")		81 - 85 cm
(32" - 33")
58180 - 185 cm
(5'11" - 6'1")		84 - 87 cm
(33" - 34")
61185 - 191 cm
(6'1" - 6'3")		86 - 90 cm
(34" - 35")


Mountain & City

SizeRider HeightInseam
XS145 - 155 cm69 - 73 cm
S155 - 165 cm74 - 78 cm
M165 - 176 cm79 - 83 cm
M/L173 - 180 cm81 - 86 cm
L177 - 188 cm84 - 89 cm
XL188 - 195 cm89 - 91 cm

Please note that this is a general guide, and the best way to determine the correct size for a specific model is to consult Trek's website for that particular model. Additionally, factors such as inseam length, riding style, and personal preference may also affect the ideal size for a given rider.
