The Fuel EXe 9.7 redefines e-mountain biking with an entirely new motor that tucks away neatly for a ride that's light, lively and just as playful as a traditional mountain bike.
The Fuel EXe 9.7 redefines e-mountain biking with an entirely new motor that tucks away neatly for a ride that's light, lively and just as playful as a traditional mountain bike.
Trek

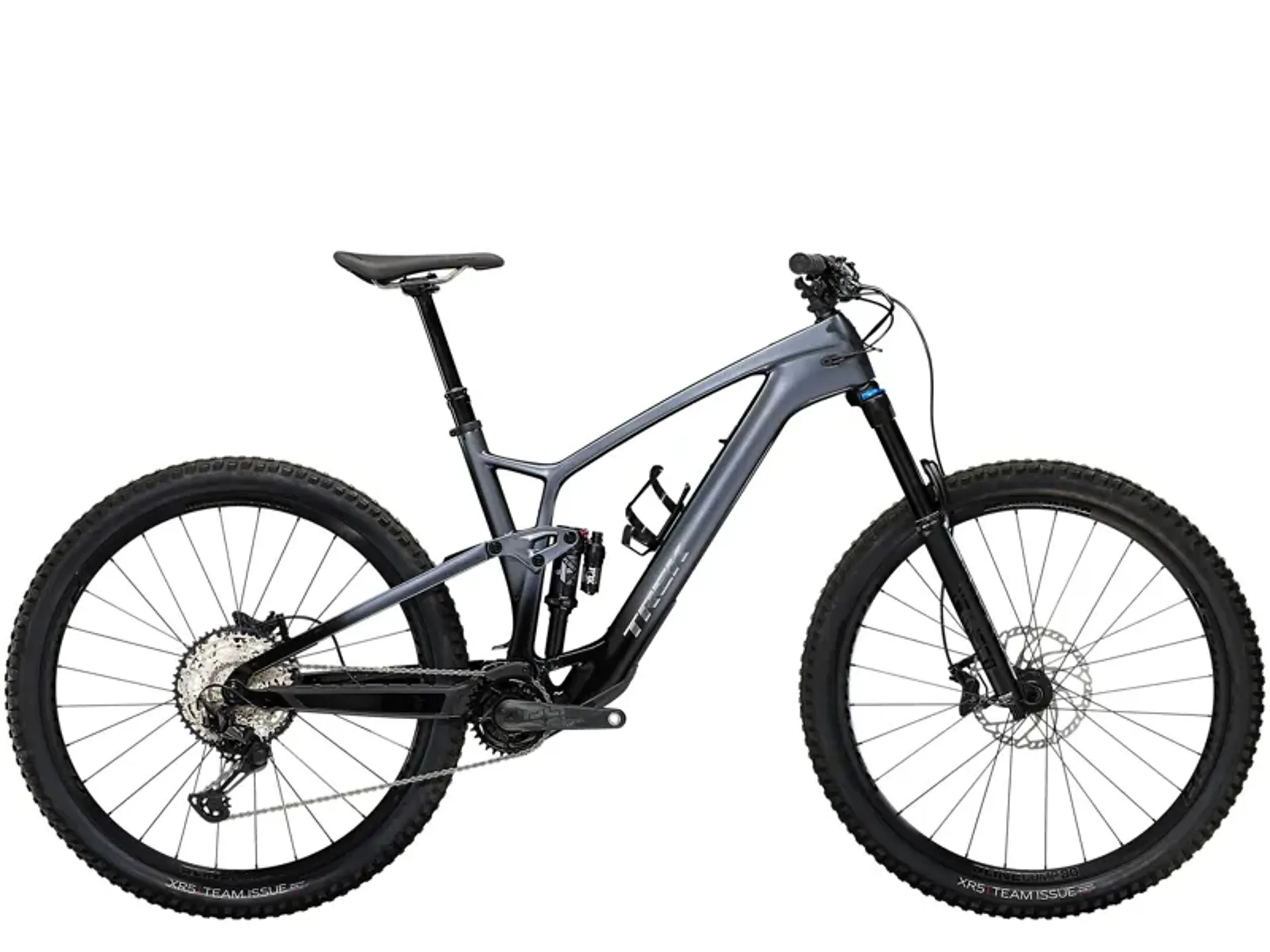

Trek Fuel EXE 9.7 SLX/XT Electric Mountain Bike in Matte Galactic Grey

£7,400.00
Size Guide
Earn
in Customer Rewards when you buy this item today
Sign Up
Sign In
Trek Fuel EXE 9.7 SLX/XT Electric Mountain Bike in Deep Smoke Trek Fuel EXE 9.7 SLX/XT Electric Mountain Bike in Mulsanne Blue Trek Fuel EXE 9.7 SLX/XT Electric Mountain Bike in Baja Yellow Trek Fuel EXE 9.7 SLX/XT Electric Mountain Bike in Matte Pennyflake
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Trek Fuel EXE 9.7 SLX/XT Electric Mountain Bike in Matte Galactic Grey

Season:2023

Brand:Trek

Code:36360GalacticGRYtoBLKFade

The Fuel EXe 9.7 redefines e-mountain biking with an entirely new motor that tucks away neatly for a ride that's light, lively and just as playful as a traditional mountain bike, with the added benefit of pedal-assist to help you crush climbs.

An upgraded suspension package pairs with cherry-picked components for snappy shifting and precise modulation on the trail. All that, and a lightweight carbon chassis to keep your ride nimble and stiff with just the right amount of vibration-damping goodness for when the trail gets rowdy.
Technical Information
  • Frame
    OCLV Mountain Carbon, removable battery, internal routing, alloy rocker link, 34.9 mm seat tube, upper chain guide mount, 55 mm chainline, Mino Link, ABP, Boost148, UDH, 140 mm travel
  • Fork
    Fox Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44 mm offset, Boost110, 15 mm Kabolt axle, 150 mm travel
  • Shock
    Fox Performance Float X, 2-position damper, 205 mm x 60 mm
  • Wheel front
    Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle
  • Wheel rear
    Bontrager Line Comp 30, Tubeless-Ready, Rapid Drive 108, 6-bolt, Boost148, 12 mm thru axle
  • Hub front
    Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle
  • Hub rear
    Bontrager alloy, sealed bearing, 6-bolt, Rapid Drive 108, Shimano MicroSpline freehub, Boost148, 12 mm thru axle
  • Skewer rear
    Bontrager Switch thru-axle, removable lever
  • Rim
    Bontrager Line Comp 30, Tubeless Ready, 28-hole, Presta valve
  • *Tyre
  • Size: S, M, L, XL
    Bontrager XR5 Team Issue, Tubeless Ready, aramid bead, 120 tpi, 29x2.50"
  • Size: S, M, L, XL
    Bontrager XR5 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 60 tpi, 29x2.50"
  • Tyre part
    Bontrager TLR sealant, 180 ml/6 oz
  • Rim strip
    Bontrager TLR
  • Shifter
    Shimano SLX M7100, 12-speed
  • Rear derailleur
    Shimano XT M8100, long cage
  • Crank
    E*thirteen E*spec Plus, 34T, 165 mm length
  • Crank arm
    E*thirteen E*spec Race alloy, 34T, 170 mm length
  • Chainring
    E*thirteen E*spec, 32T alloy ring, 55 mm chainline
  • Cassette
    Shimano SLX M7100, 10-51, 12-speed
  • Chain
    Shimano SLX M7100, 12-speed
  • Saddle
    Bontrager Arvada, austenite rails, 138 mm width
  • *Seatpost
    Size: S
  • Size: S
    TranzX JD-YSP39, 100 mm travel, internal routing, 34.9 mm
  • Size: M
    TranzX JD-YSP39, 150 mm travel, internal routing, 34.9 mm
  • Size: L, XL
    TranzX JD-YSP39, 170 mm travel, internal routing, 34.9 mm
  • Handlebar
    Grips
  • Grips
    Bontrager XR Trail Elite, nylon lock-on
  • Stem
    Brake
  • Brake
    Shimano 4-piston hydraulic disc, M6100 lever, M6120 calliper
  • *Brake rotor
  • Size: S, M, L, XL
    SRAM CenterLine, 6-bolt, round edge, 200 mm
  • Size: S, M, L, XL
    Shimano RT66, 6-bolt, 203 mm
  • Brake Set
    SRAM Code R 4-piston hydraulic disc
  • Battery
    TQ 360 Wh
  • *Controller
  • Size: S, M, L, XL
    TQ LED display with Bluetooth & ANT+ connectivity
  • Size: S, M, L, XL
    TQ handlebar-mounted
  • Motor
    TQ-HPR50, 50 Nm, 250 watt maximum continuous rated power, 300 watt peak power
  • Electronics
    TQ 4A charger
  • Weight
    M - 19.05 kg / 42 lbs (with TLR sealant, no tubes)
  • Weight limit
    This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
Sizing Information

Road & Gravel

SizeRider HeightInseam
49156 - 163 cm
(5'1" - 5'4")		74 - 77 cm
(29" - 30")
52163 - 168 cm
(5'4" - 5'6")		76 - 79 cm
(30" - 31")
54168 - 174 cm
(5'6" - 5'9")		78 - 82 cm
(31" - 32")
56174 - 180 cm
(5'9" - 5'11")		81 - 85 cm
(32" - 33")
58180 - 185 cm
(5'11" - 6'1")		84 - 87 cm
(33" - 34")
61185 - 191 cm
(6'1" - 6'3")		86 - 90 cm
(34" - 35")


Mountain & City

SizeRider HeightInseam
XS145 - 155 cm69 - 73 cm
S155 - 165 cm74 - 78 cm
M165 - 176 cm79 - 83 cm
M/L173 - 180 cm81 - 86 cm
L177 - 188 cm84 - 89 cm
XL188 - 195 cm89 - 91 cm

Please note that this is a general guide, and the best way to determine the correct size for a specific model is to consult Trek's website for that particular model. Additionally, factors such as inseam length, riding style, and personal preference may also affect the ideal size for a given rider.
