Frame
Size:XS , S

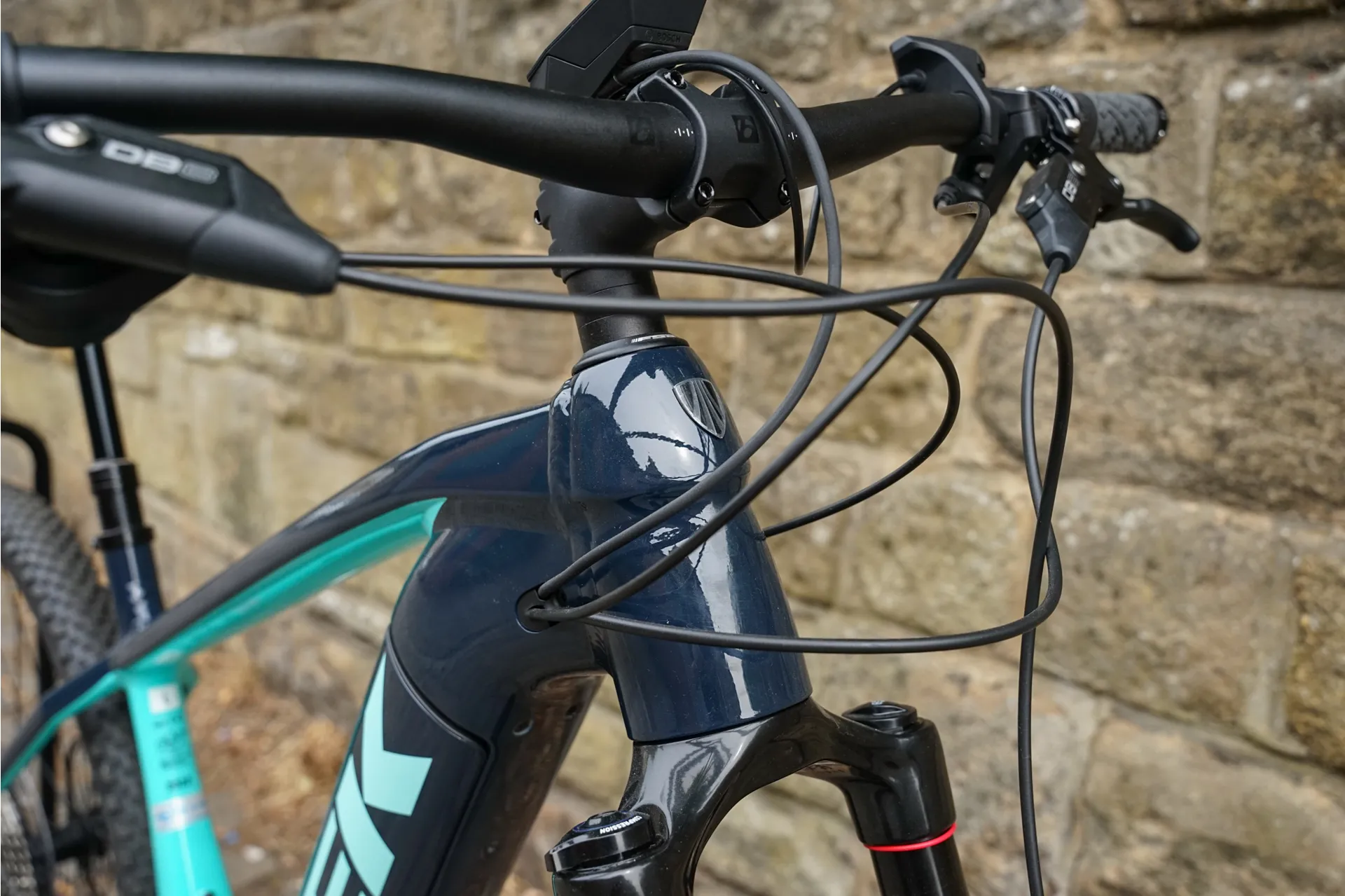

Alpha Platinum Aluminium, curved top tube, Removable Integrated Battery (RIB), tapered head tube, Control Freak internal routing, Motor Armour, Boost148, 12 mm thru axle
Size:M , L , XL
Alpha Platinum Aluminium, Removable Integrated Battery (RIB), tapered head tube, Control Freak internal routing, Motor Armor, Boost148
Fork
Size:XS
RockShox 35 Gold RL, DebonAir spring, Motion Control damper, lockout, tapered steerer, 44 mm offset, oversized crown for eMTB, Boost110, 15 mm Maxle Stealth, 80 mm travel
Size:S , M , L , XL
RockShox 35 Gold RL, DebonAir spring, Motion Control damper, lockout, tapered steerer, 44 mm offset, oversized crown for eMTB, Boost110, 15 mm Maxle Stealth, 120 mm travel
Max compatible fork travel
120mm (XS & S: 100mm)
Wheels
Wheel front
Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle
Wheel rear
Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru axle
Hub front
Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle
Hub rear
Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru axle
Skewer rear
Bontrager Switch thru-axle, removable lever
Rim
Bontrager Line Comp 30, Tubeless-Ready
Spokes
Size:XS , S
DT Swiss Champion, J-Bend, Black
Size:M , L , XL
14g stainless
Tyre
Size:XS , S
Bontrager XR3 Team Issue, Tubeless-Ready, Inner Strength sidewall, aramid bead, 120 tpi, 27.5x2.35"
Size:M , L , XL
Bontrager XR3 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120 tpi, 29x2.40"
Rim strip
Bontrager TLR
Max tyre size
Frame: 29x2.60" or 27.5x2.8" (XS & S: 27.5x2.60") Fork: See manufacturer

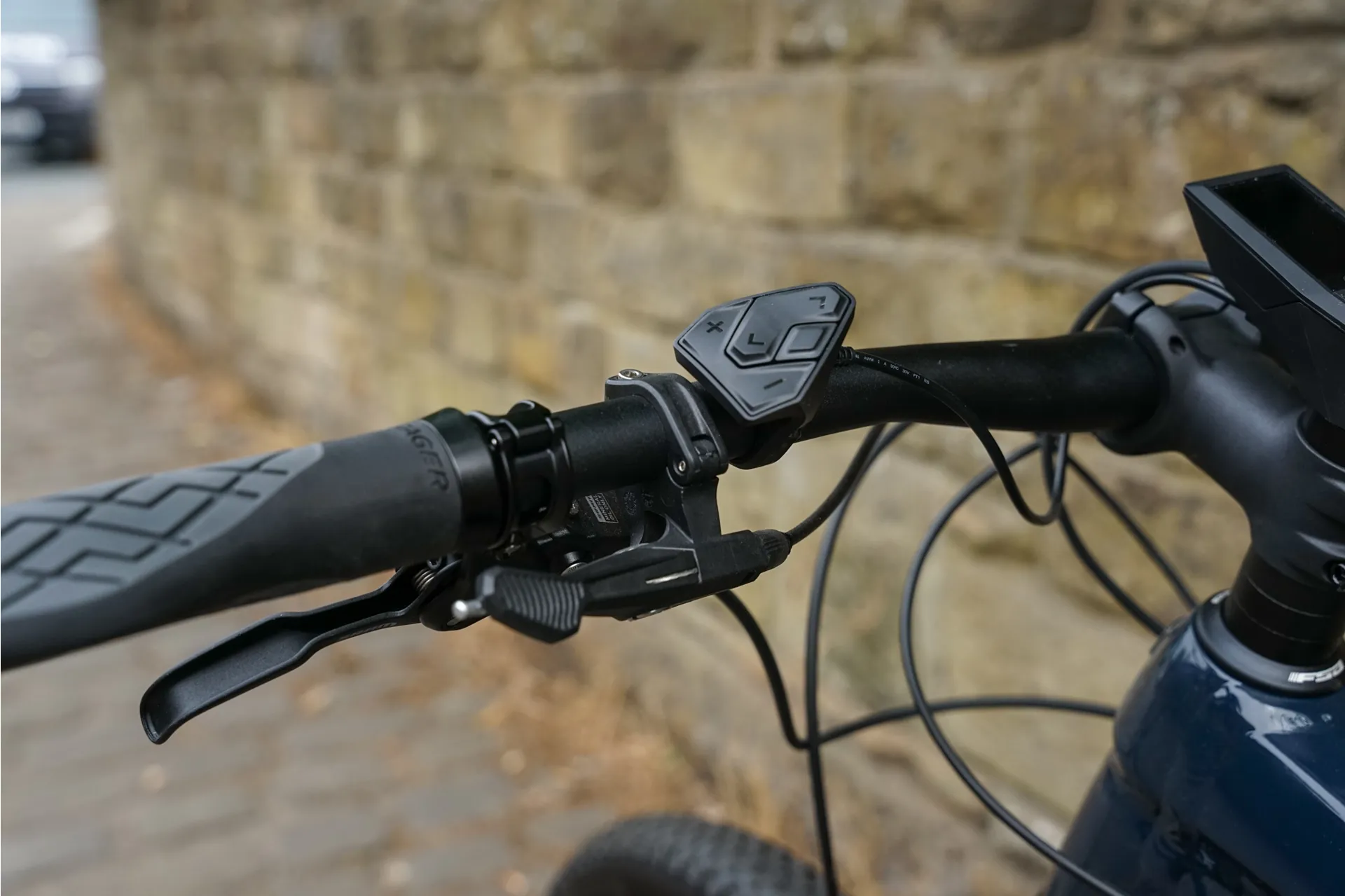

Shifter
Shimano SLX M7100, 12-speed

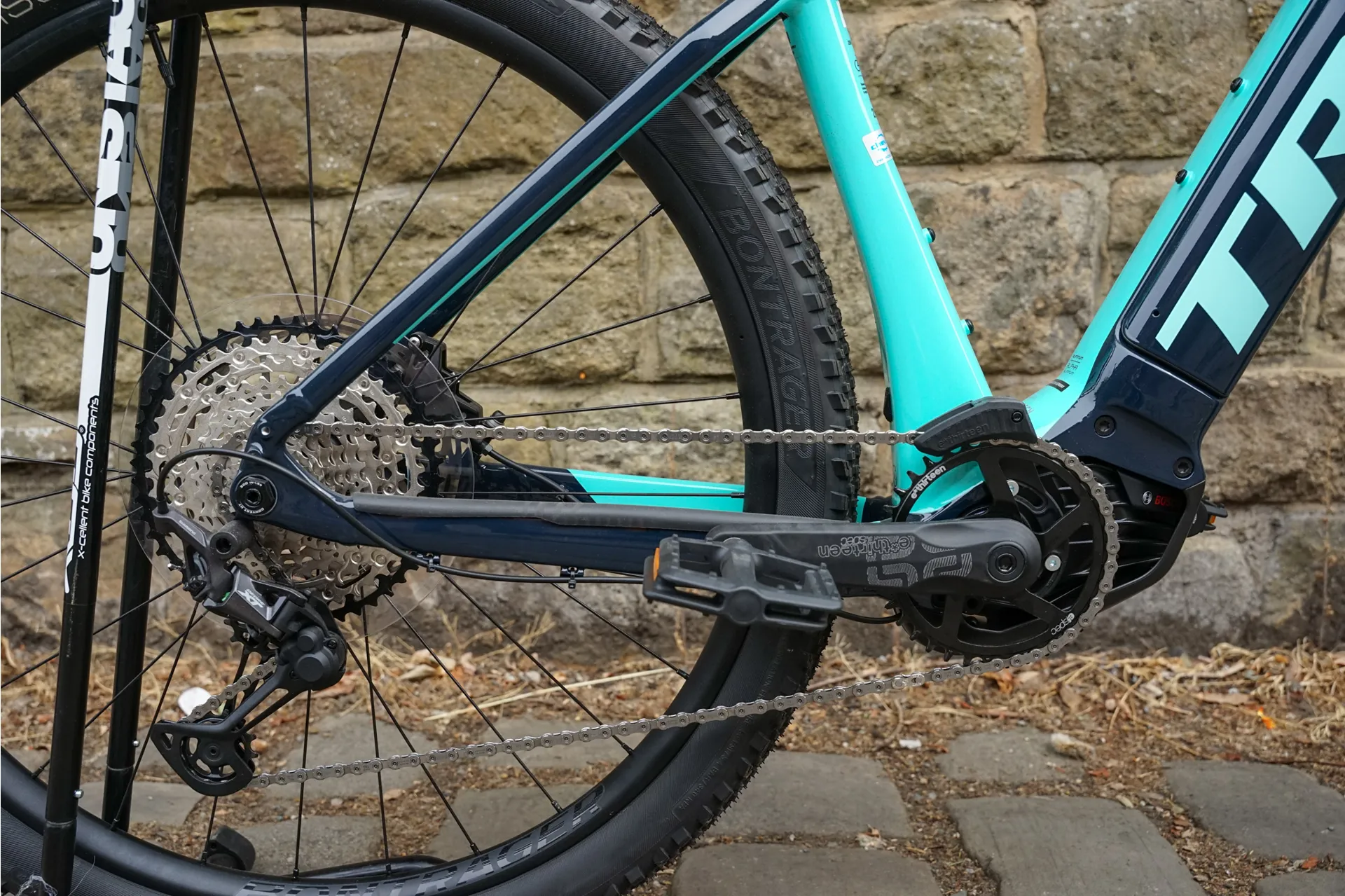

Rear derailleur
Shimano XT M8100, long cage
Crank
E*thirteen E*spec Plus, 165 mm length
Chainring
E*thirteen, 36T, steel
Cassette
Shimano SLX M7100, 10-51, 12-speed
Chain
Shimano SLX M7100, 12-speed
Pedal
VP-536 nylon platform
Max. chainring size
38T
Saddle
Bontrager Commuter Comp
Seatpost
Size:XS , S
TranzX JD-YSP18, 100 mm travel, internal routing, 31.6 mm, 361 mm length
Size:M , L , XL
TranzX JD-YSP18, 130mm travel, internal routing, 31.6 mm, 425 mm length
Handlebar
Size:XS , S
Bontrager alloy, 31.8 mm, 15 mm rise, 720 mm width
Size:M , L , XL
Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width
Grips
Bontrager XR Endurance Elite, lock-on, ergonomic
Stem
Size:XS
Bontrager Rhythm Comp, 31.8 mm, Knock Block, 0-degree, 50 mm length
Size:S , M
Bontrager Rhythm Comp, 31.8mm, Knock Block, 0-degree, 60 mm length
Size:L , XL
Bontrager Rhythm Comp, 31.8 mm, Knock Block, 0-degree, 70 mm length
Head set
FSA IS-2, 1-1/8" top, 1.5" bottom
Brake
Shimano 4-piston hydraulic disc, M6100 lever, M6120 calliper
Brake rotor
Shimano RT66, 6-bolt, 203 mm
Battery
Bosch PowerTube 625
Charger
Bosch standard 4A, 220–240V

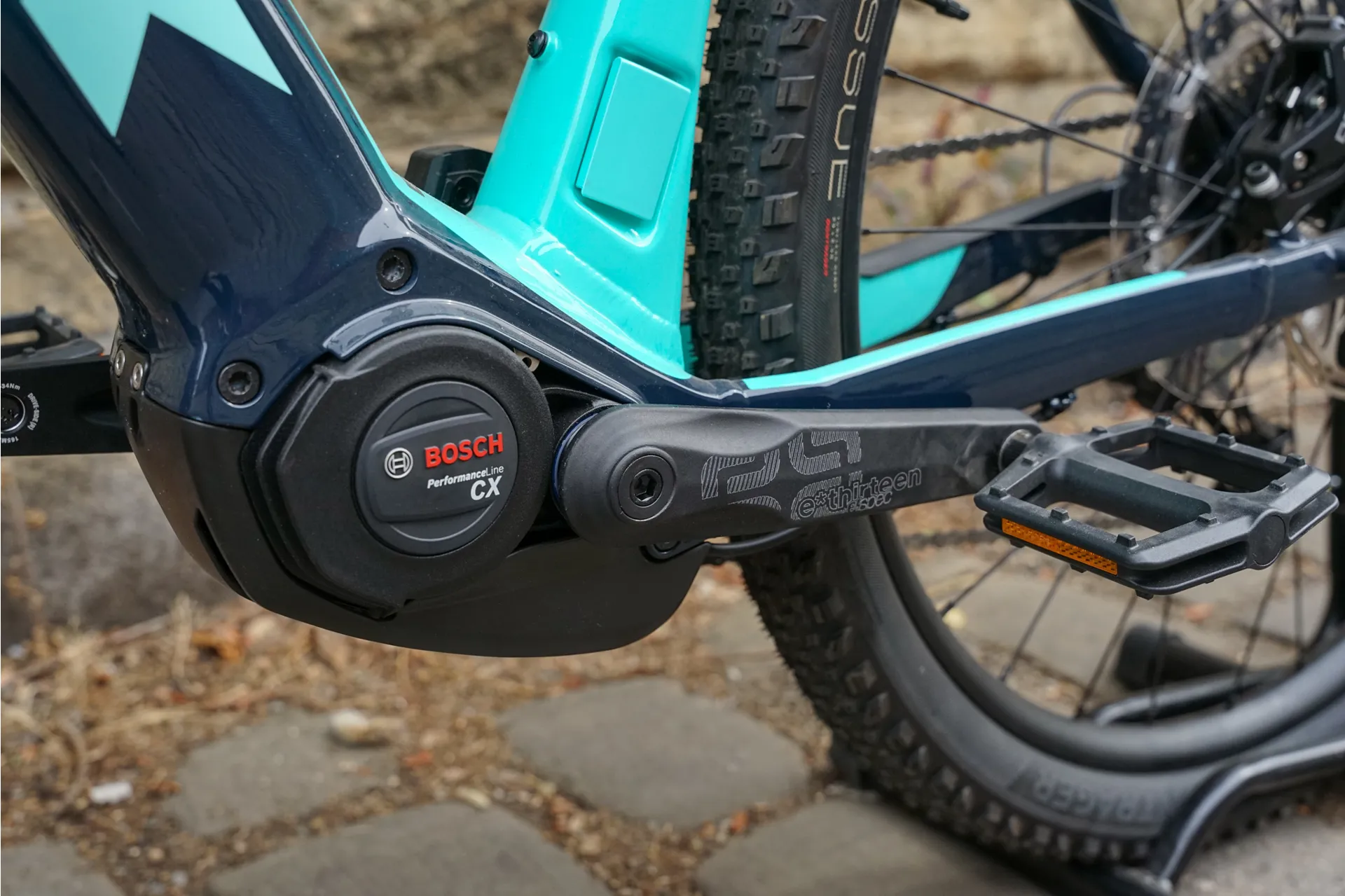

Motor
Bosch Performance CX, magnesium motor body, 250 watt, 85 Nm, 25 km/h (15.5 mph) max assist, 32 km/h for New Zealand

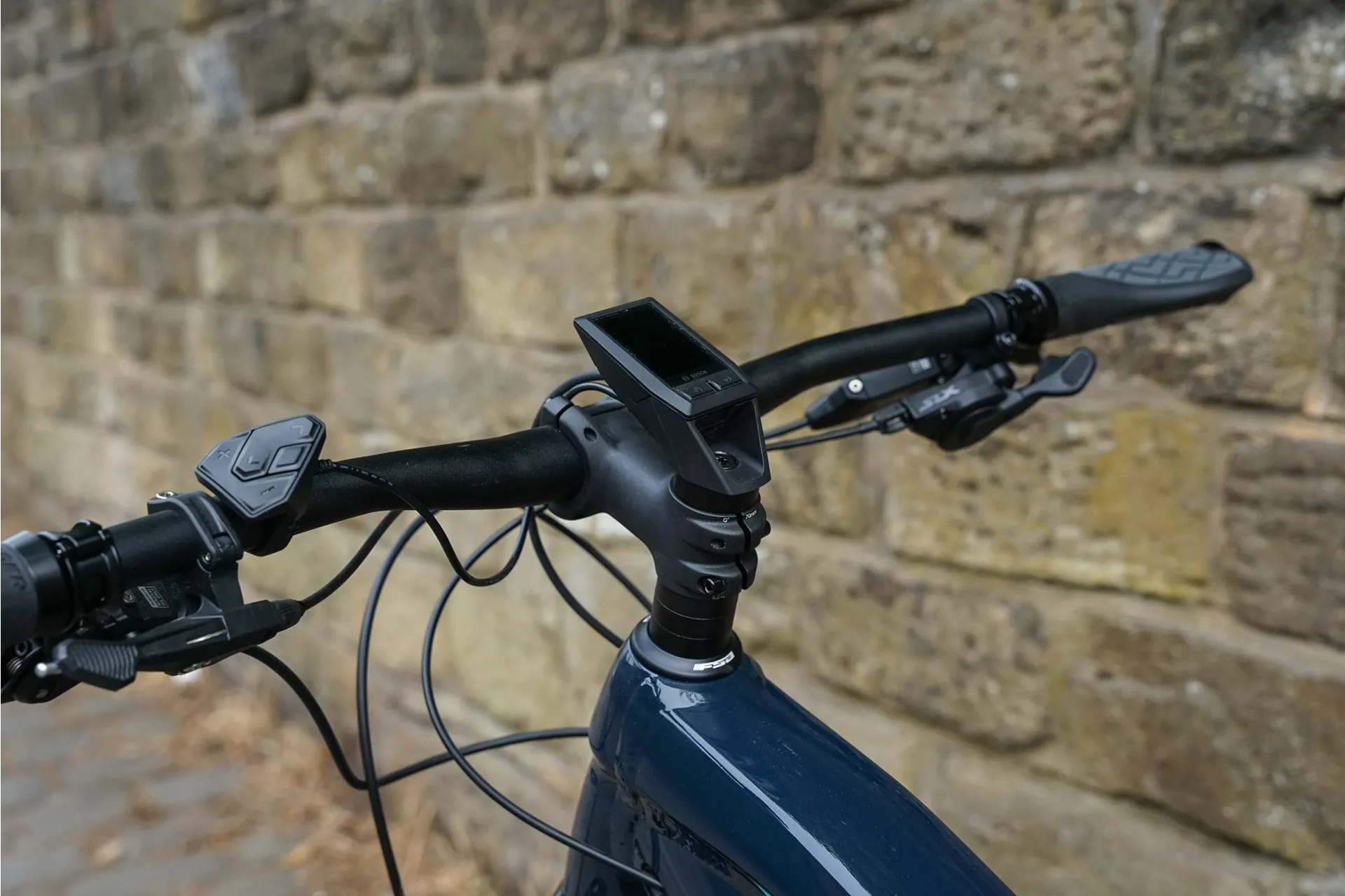

Computer
Bosch Kiox with Anti-theft solution
