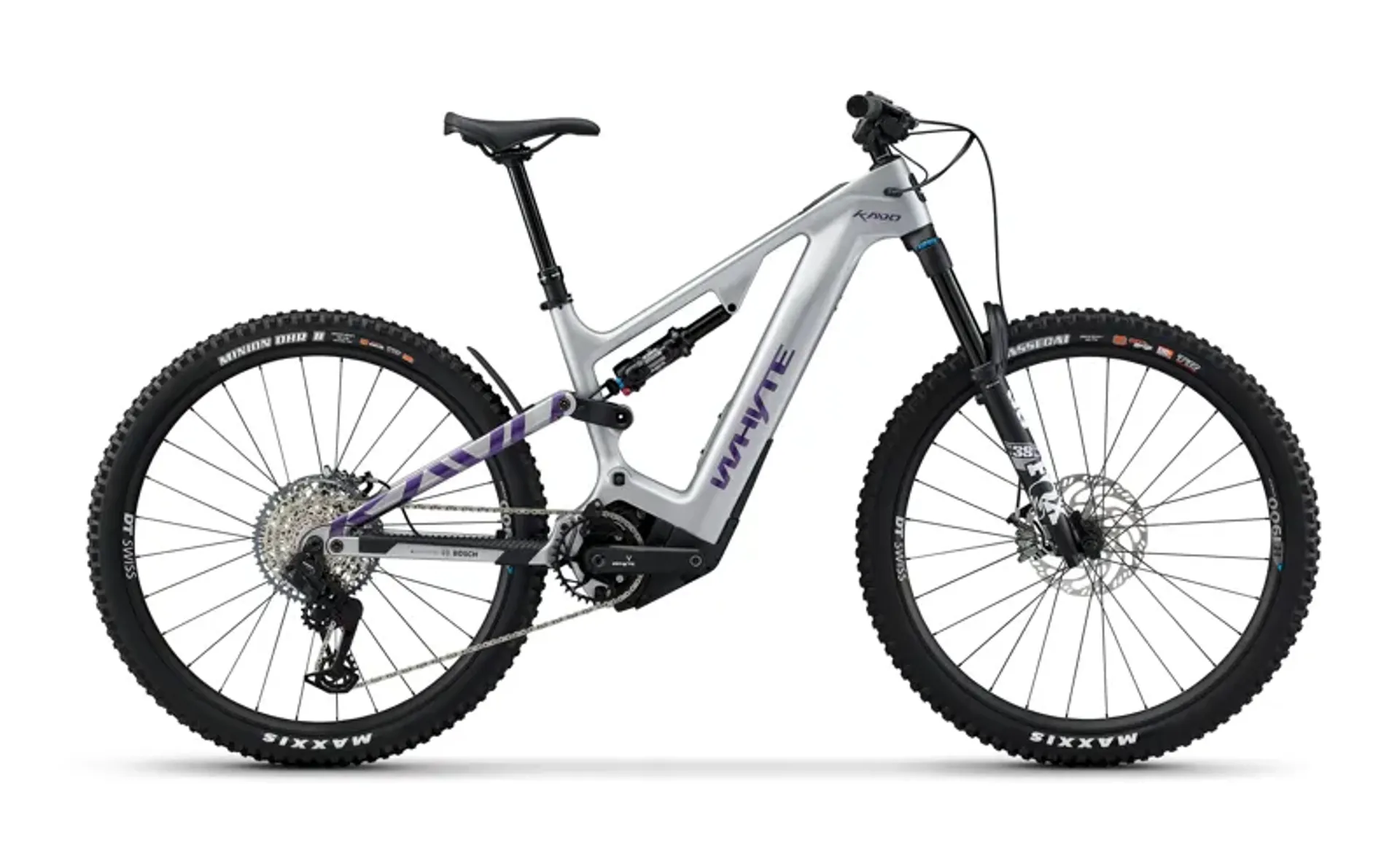

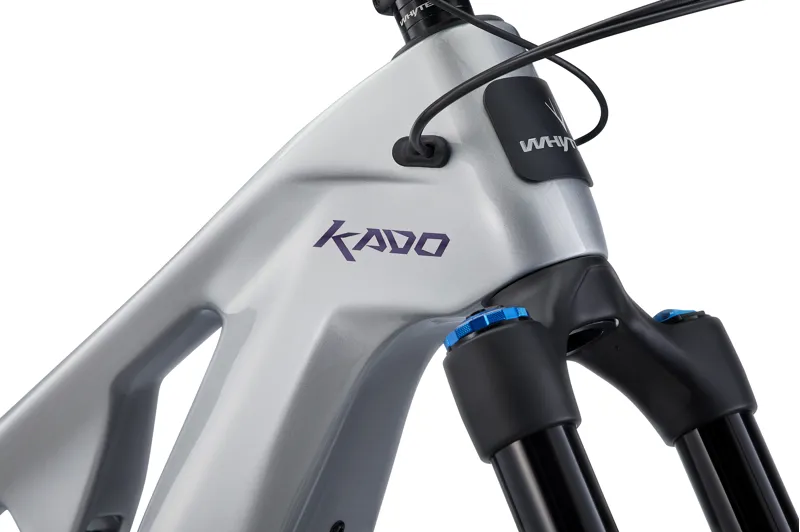

Frame
Uni-directional carbon mainframe and rear triangle, tapered head tube, internal cable routing, Shape.it Link V2 and 12mm x 148mm Boost dropouts
-

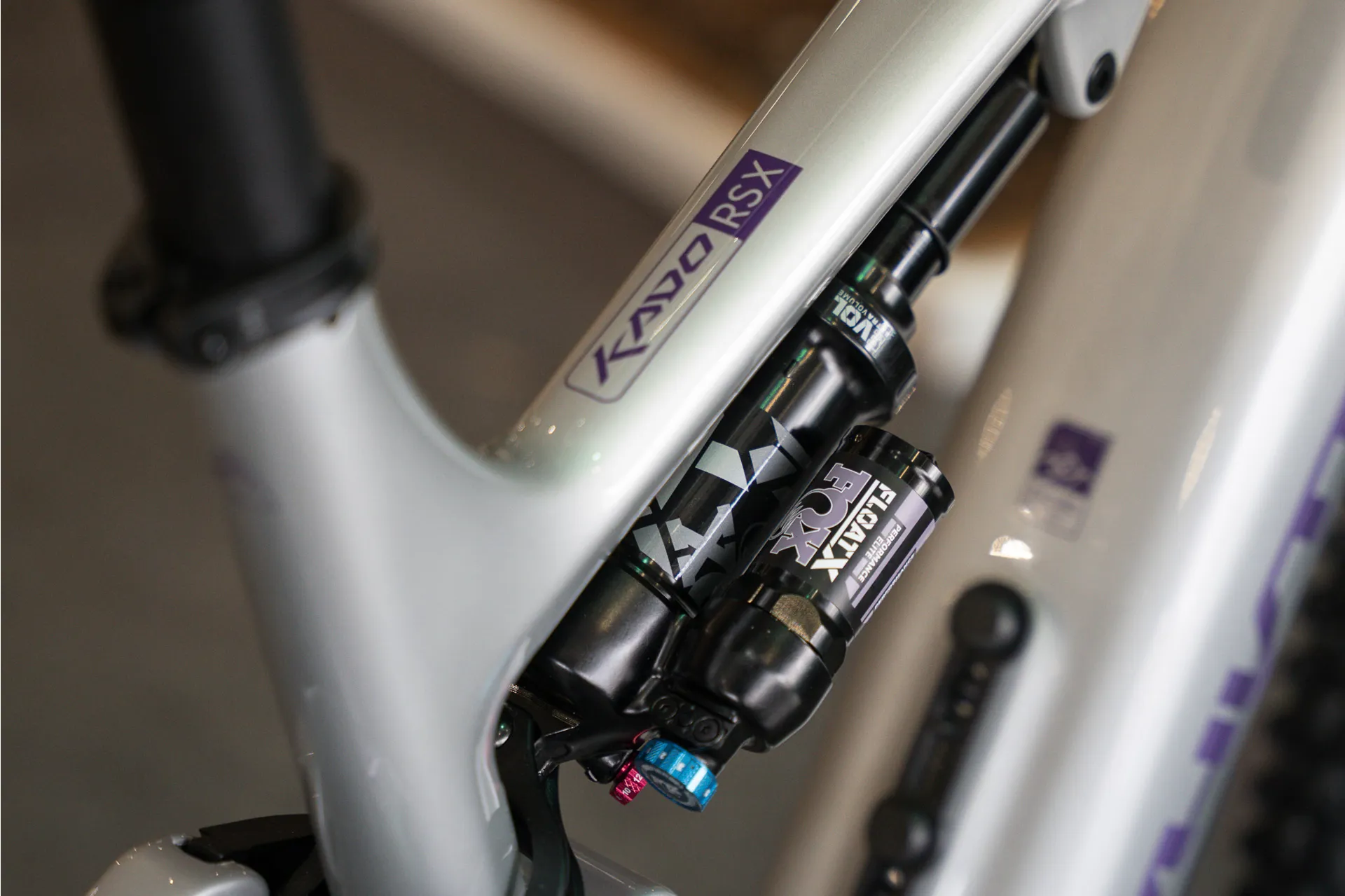

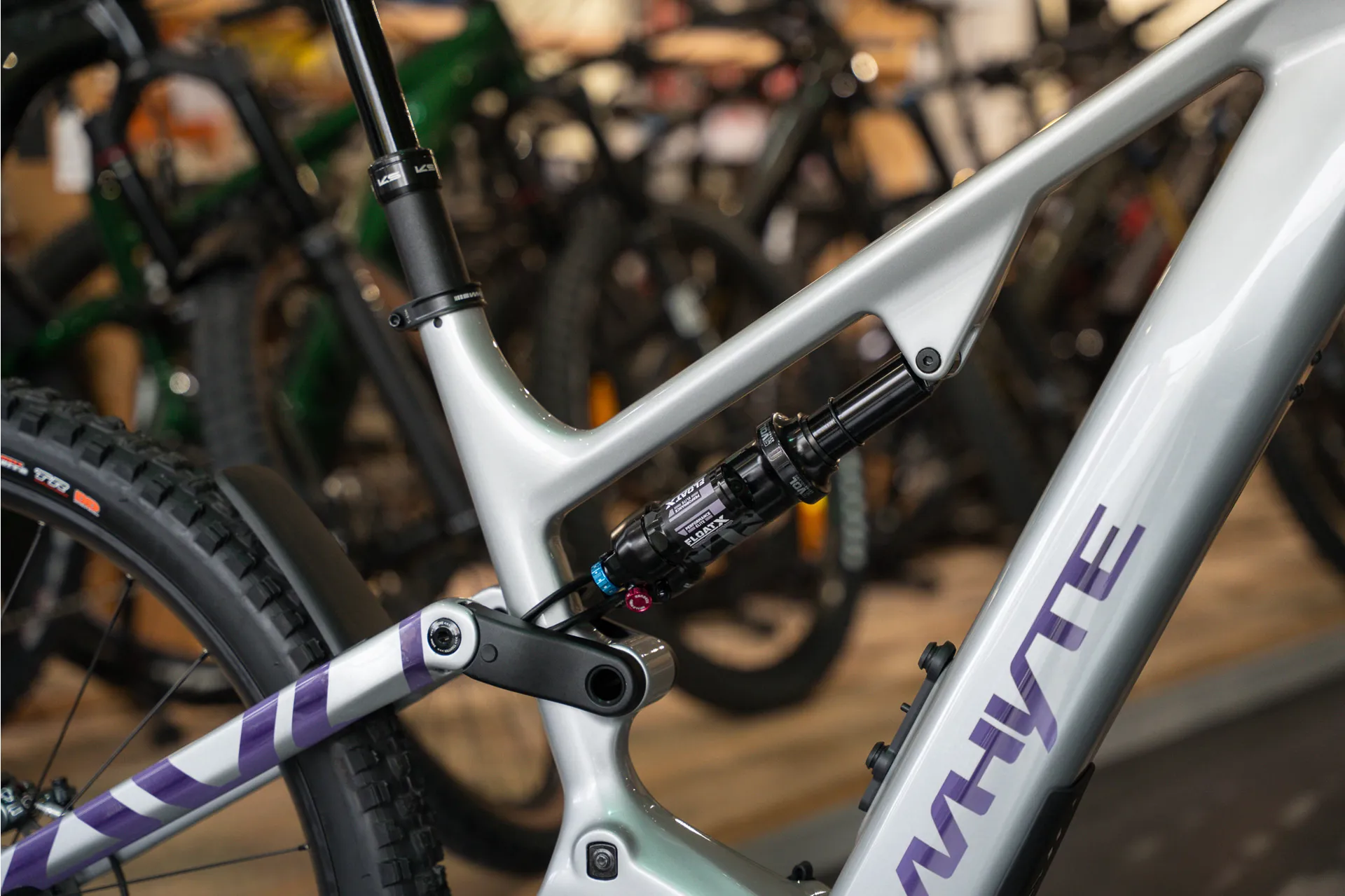

Rear Shock
Fox Float X Performance Elite DPS, EVOL LV, custom tuned for Whyte
-

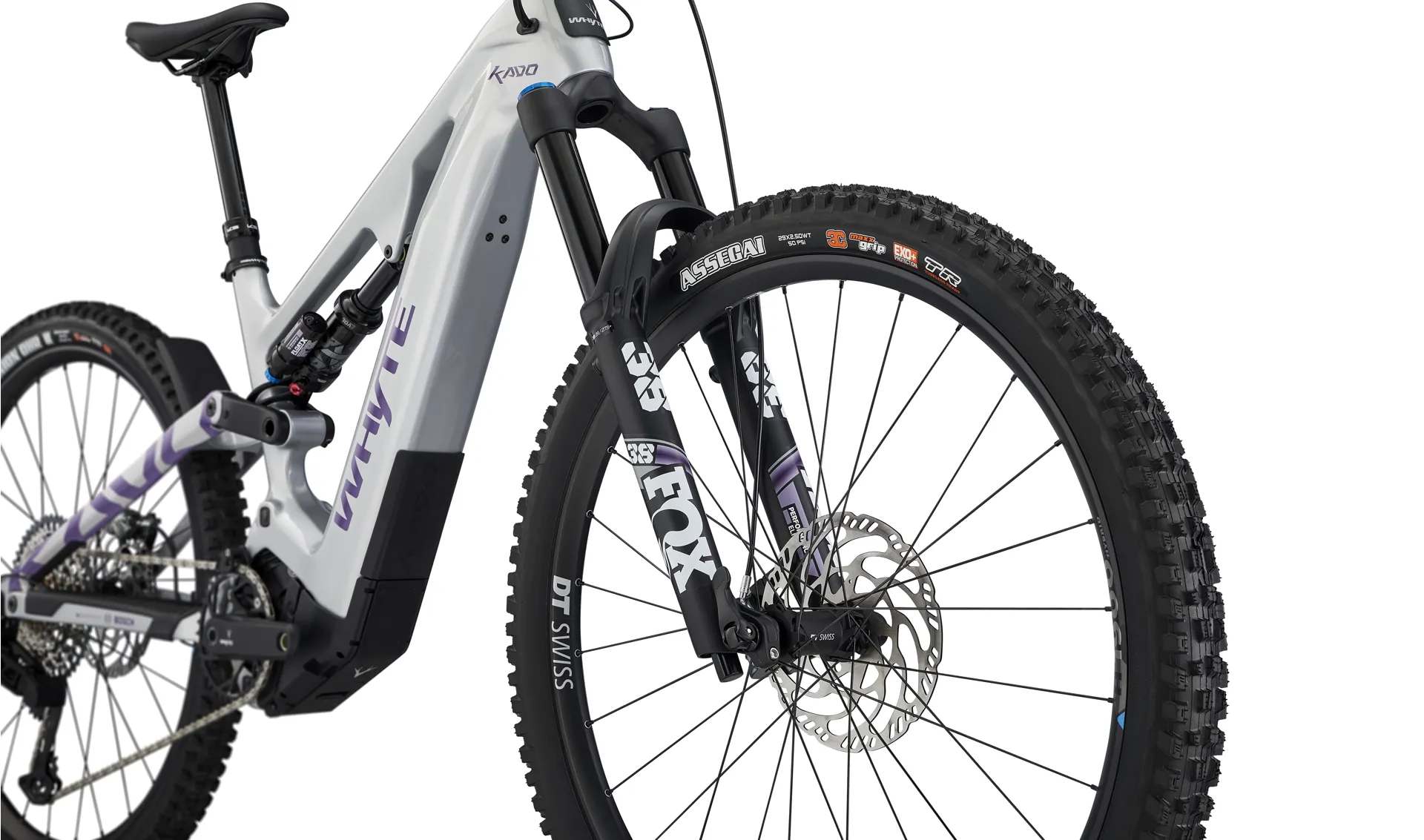

Fork
Fox Float 38 Performance Elite, 160mm travel, 44mm offset with Grip X2 damper, tapered steerer, 110mm x 15mm Boost, E-thru-axle
-
Headset
FSA No. 69/56/SRS, 1-1/8in upper and 1.5in lower with sealed angular contact bearing (ACB) cartridge bearings, with side entry internal routing
-
Stem
Whyte, 35mm Extension, 35mm Bar Bore
-

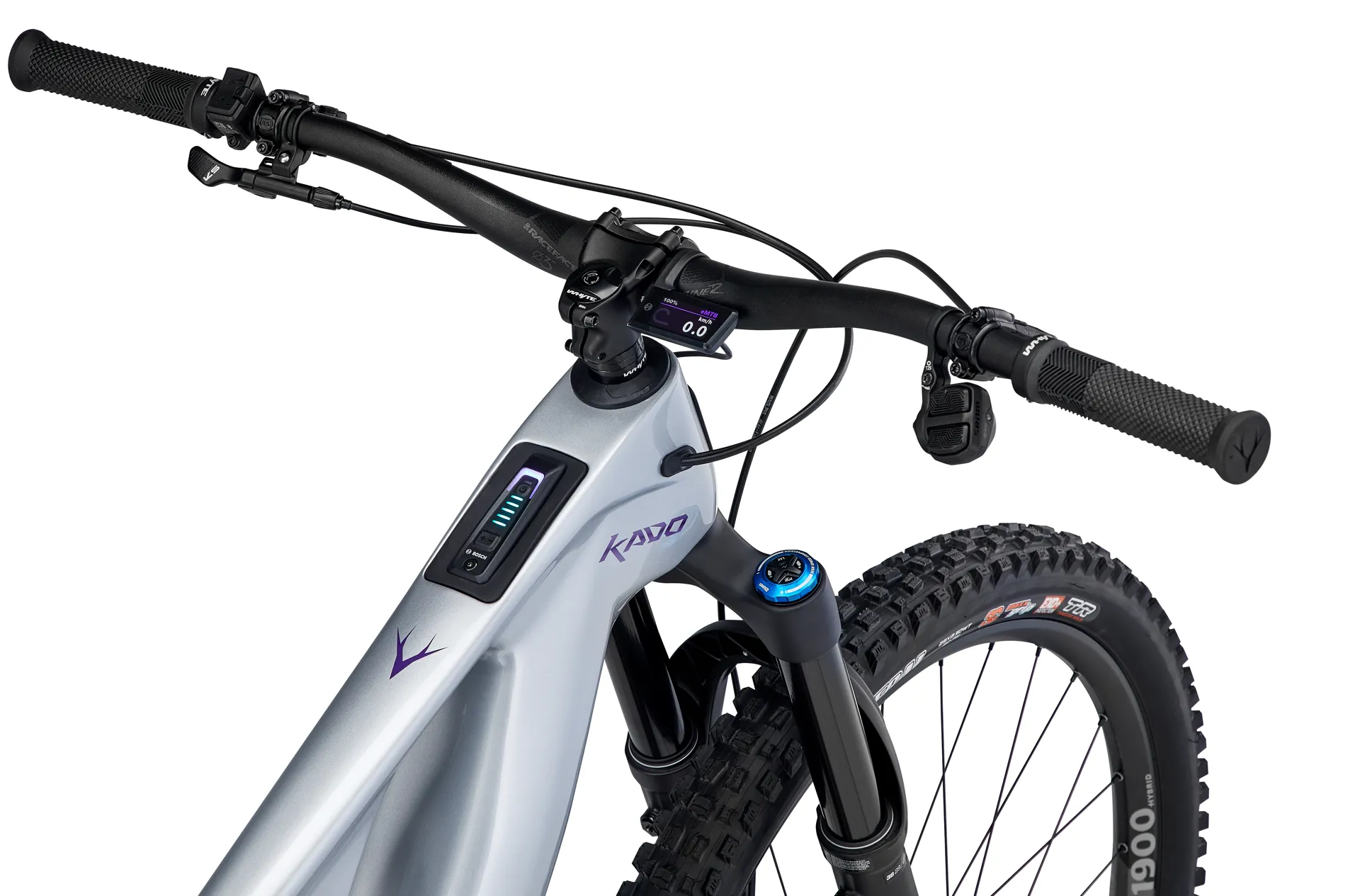

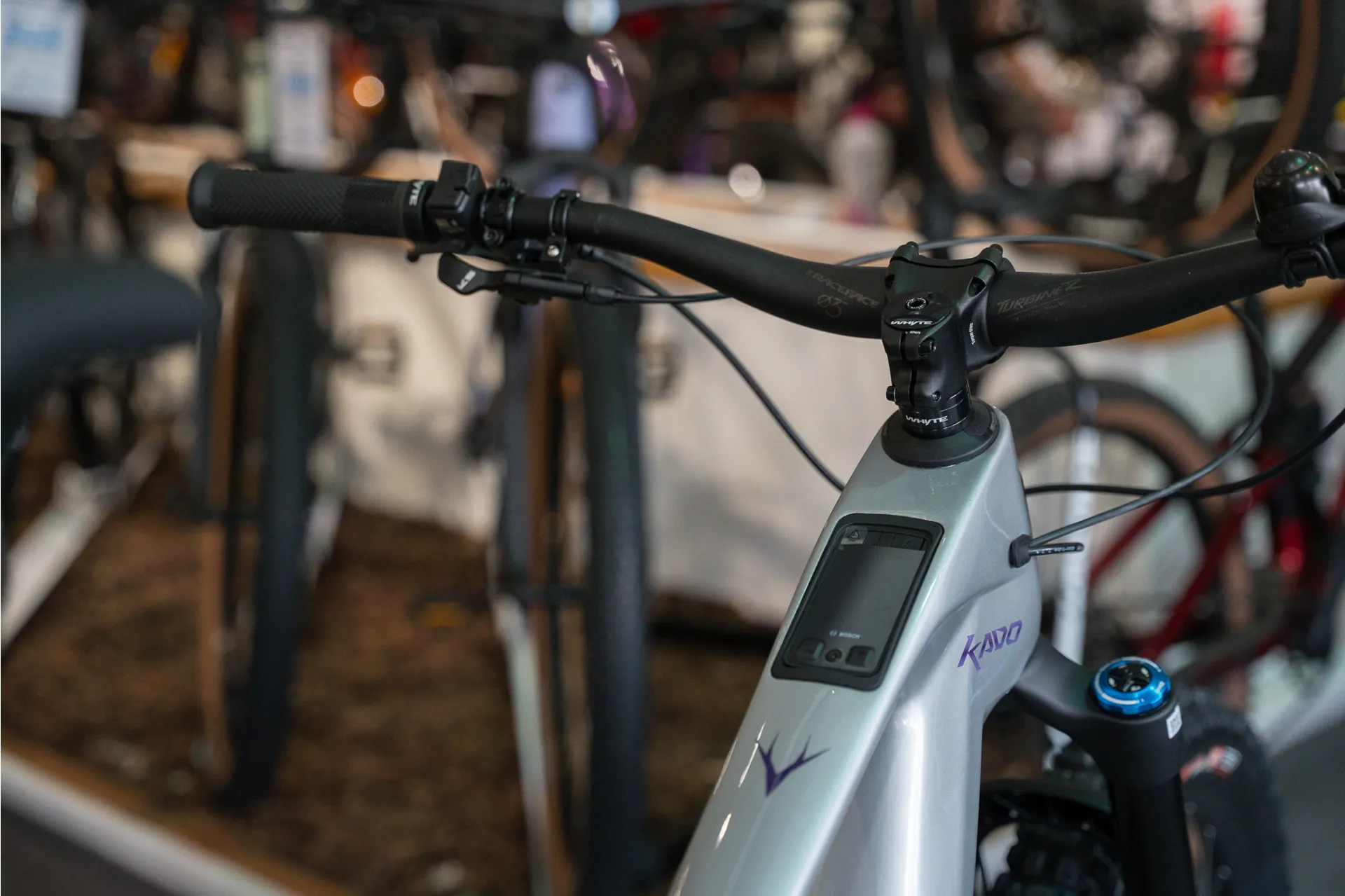

Handlebar
Race Face Turbine Alloy Bar 35mm, 800mm, 35mm rise
-
Bar Tape / Grip
Whyte Enduro lock-on
-
Brake Levers
Magura MT7
-
Brake Calipers
N/A
-
Tyres
Maxxis Assegai WT, TR, 29in x 2.5in 120TPI, EXO+ Sidewall Protection, 3C MaxxGrip, Dual Compound, folding bead, front; Maxxis Minion DHR 2 WT, TR, 29in x 2.4in 120TPI, Double Down Casing, 3C MaxxTerra, Dual Compound, rear
-
Wheels
SRAM S1000 AXS Eagle, 12 speed
-
Front Derailleur
N/A
-

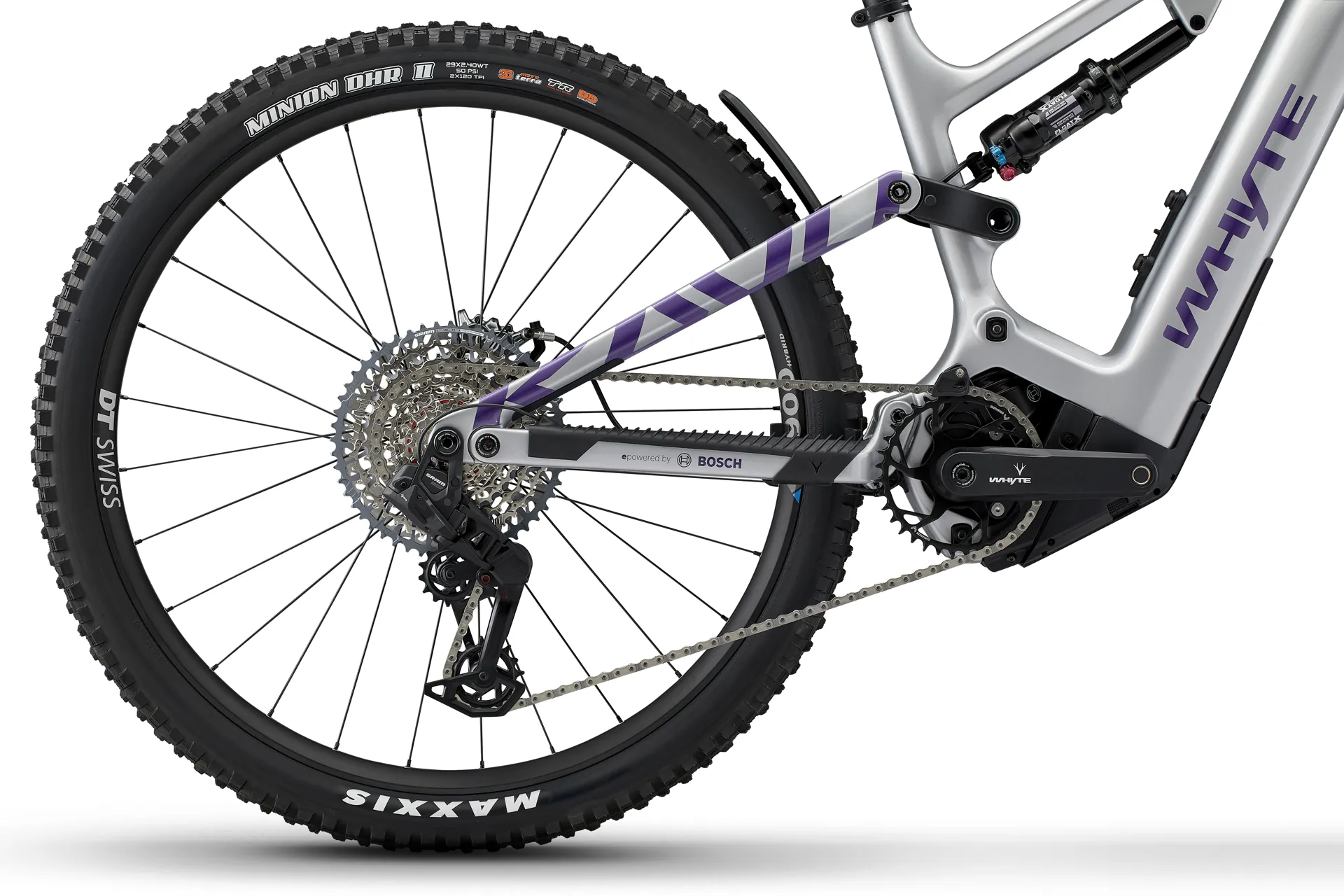

Rear Derailleur
SRAM GX T-Type, 12 speed
-
Shift Levers
SRAM AXS Pod, right, MMX, 12 speed
-
Chain
SRAM XS 1275, T-Type, 10-52T, 12 speed
-
Cassette
N/A
-
Chainset
N/A
-
Bottom Bracket
N/A
-
Pedals
Fibre reinforced composite platform
-
Saddle
Whyte Custom
-
Seatpost
KS Vantage, 34.9mm, external 30mm adjustment, with Southpaw remote lever (150 drop (S), 170mm drop (M), 200mm drop (L&XL))
