Colour:
HSD Blue
Shake Polish
Wheel Size:
20" wheels
Speeds:
8/9 spd manual
Weight:
26.7 kg (58.7 lb)
Folding Size:
163 x 40.5 x 86 cm (64" x 15.9" x 34")
Folding Time:
5 sec
Frame Sizes:
One size
Gear Inches:
29" - 111" (2.34 - 8.89 m)
Distance: Seatpost To Handlebar:
Min: 490 mm (19.3"); Max: 590 mm (22")
Distance: Saddle To Pedal:
Min: 690 mm (27.2") Max: 1050 mm (41.3")
Suggested Rider Height:
150 - 195 cm (4'11" - 6'5")
Max Gross Vehicle Weight:
170 kg (374 lbs)
Max Rider Weight:
120 kg. (264 lbs.)
Frame:
Tern HSD, 6061-AL, patented design, Tern sliding dropouts, EFBE Tri-Test approved: 170 kg

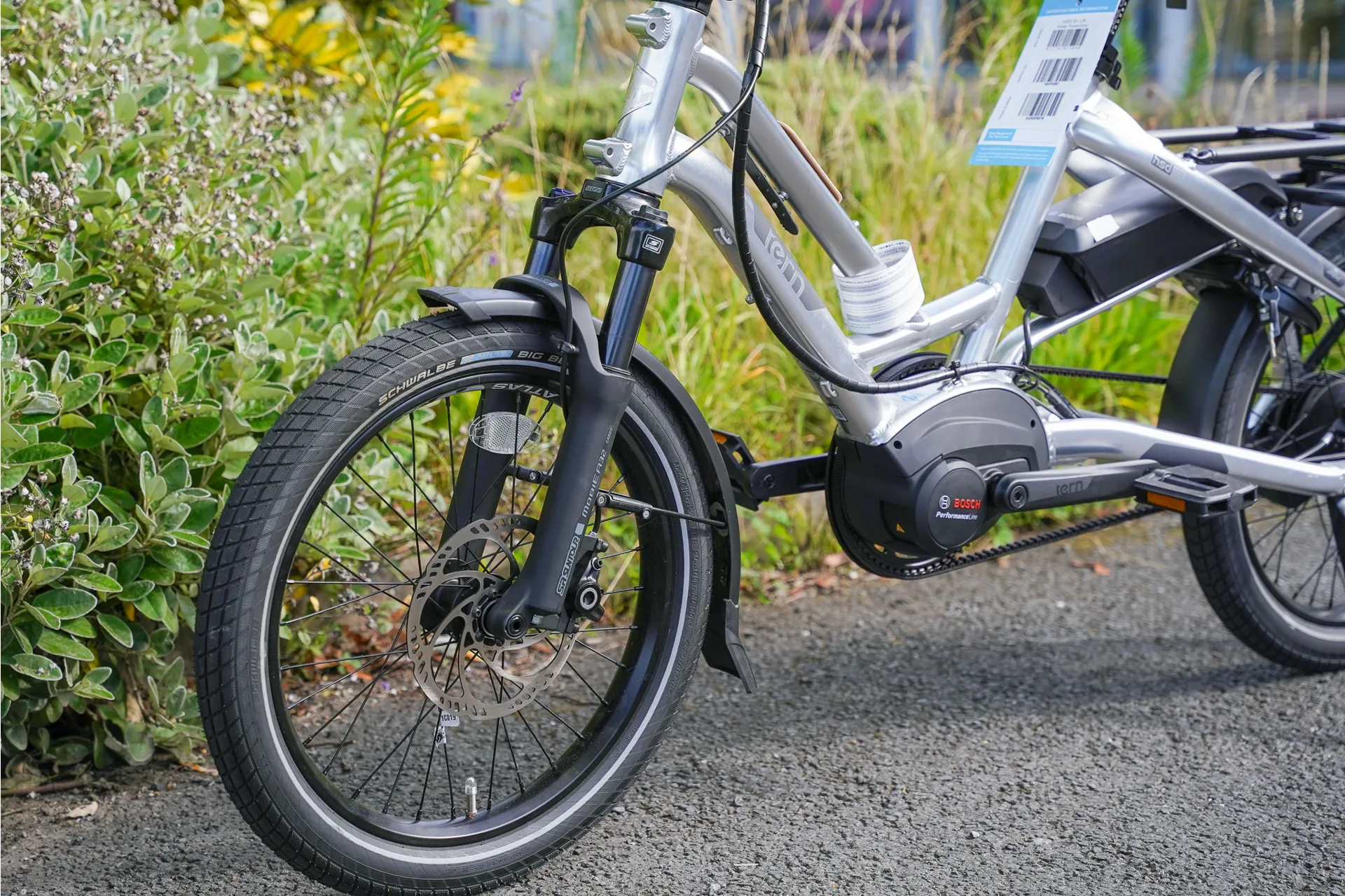

Fork:
Suntour custom for Tern, 1.5" tapered Chromoly steerer, 32 mm stanchions, Thru-axle, 70 mm travel, EFBE tested for 170 kg
Handlepost:
Tern Physis 3D (G2), 3D forged, 5 patented technologies, 12°, 290 mm
Stem:
Tern Andros (G2), adjustable, forged construction, patented technology
Headset:
Tern Flux Pro Taper, 1.5", angular contact bearings, Physis integrated
Handlebar:
Tern Sweep, 6061-AL, Tern Andros adapted
Grips/Bar Tape:
Ergon
Saddle:
Tern HSD
Seatpost:
Cane Creek Thudbuster ST, Tern Telescope, 34.9/30.9 mm
Seatpost Clamp:
Tern Collar, 6061-AL, 2pc
Front Brake:
Magura MT4, hydraulic disc, 180 mm rotor
Rear Brake:
Magura MT4, hydraulic disc, 160 mm rotor
Brake Levers:
Magura, hydraulic
Brake Cable & Housing:
Magura, hydraulic
Front Wheel:
Tern Atlas H, cargo wheel
Rear Wheel:
Tern Atlas H, cargo wheel
Front Hub:
Novatec, Thru-axle, sealed bearings
Rear Hub:
Integrated automatic shifting (more info soon)
Spokes And Nipples:
Stainless steel, double-butted
Rims:
Tern Atlas H, wide 35 mm
Tires:
Schwalbe Big Ben, 55-406, RaceGuard puncture protection, ECE-R75 ebike certification
Shifter(s):
Enviolo AUTOMATiQ
Crankset:
Tern HSD custom, Gates CDX CNC machined beltring
Cassette/Freewheel:
Gates CDX, precision CNC machined cog
Bottom Bracket:
Motor integrated
Chain:
Gates Carbon Drive CDX belt
Pedals:
Urban with non-slip surface, sealed bearings

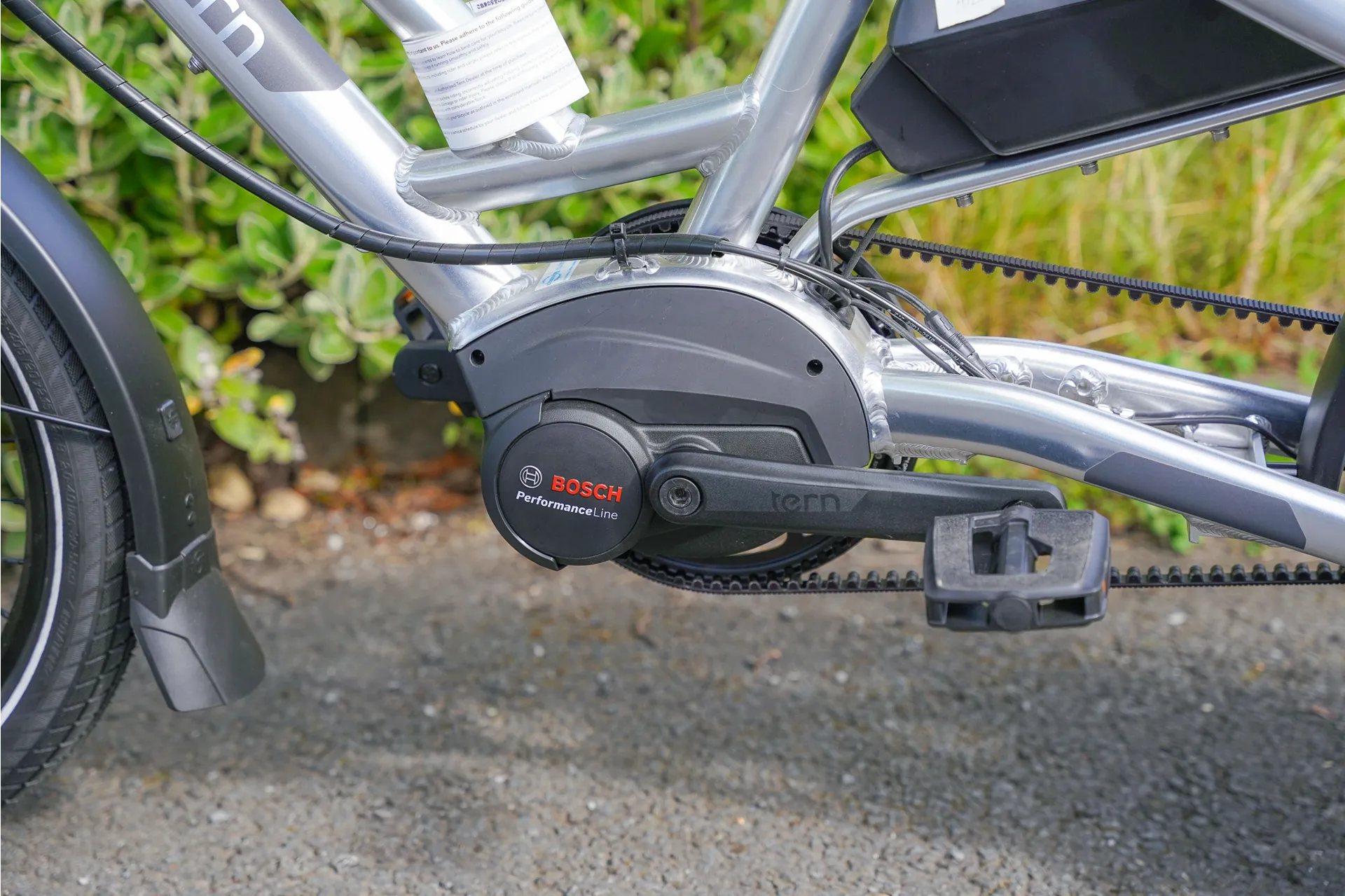

Motor:
Bosch Performance (Gen 3), max speed 25 kph (EU); max speed 20 mph (US)
Battery:
Bosch PowerPack 500
Display:
Bosch Intuvia, 4 mode selectable, walk assist, integrated auto/manual shifting
Range:
51-118 km (32-74 mi)
Charger:
Bosch Standard Charger
Bell:
Aluminum
Chainguard:
Gates integrated
Kickstand:
Ursus, rear mount
Luggage Socket:
Combo Mount
Front Light:
Tern Valo Direct, 45 lux/190 lumens
Rear Light:
Herrmans H-Trace, for eBike
Fenders:
SKS, stainless hardware

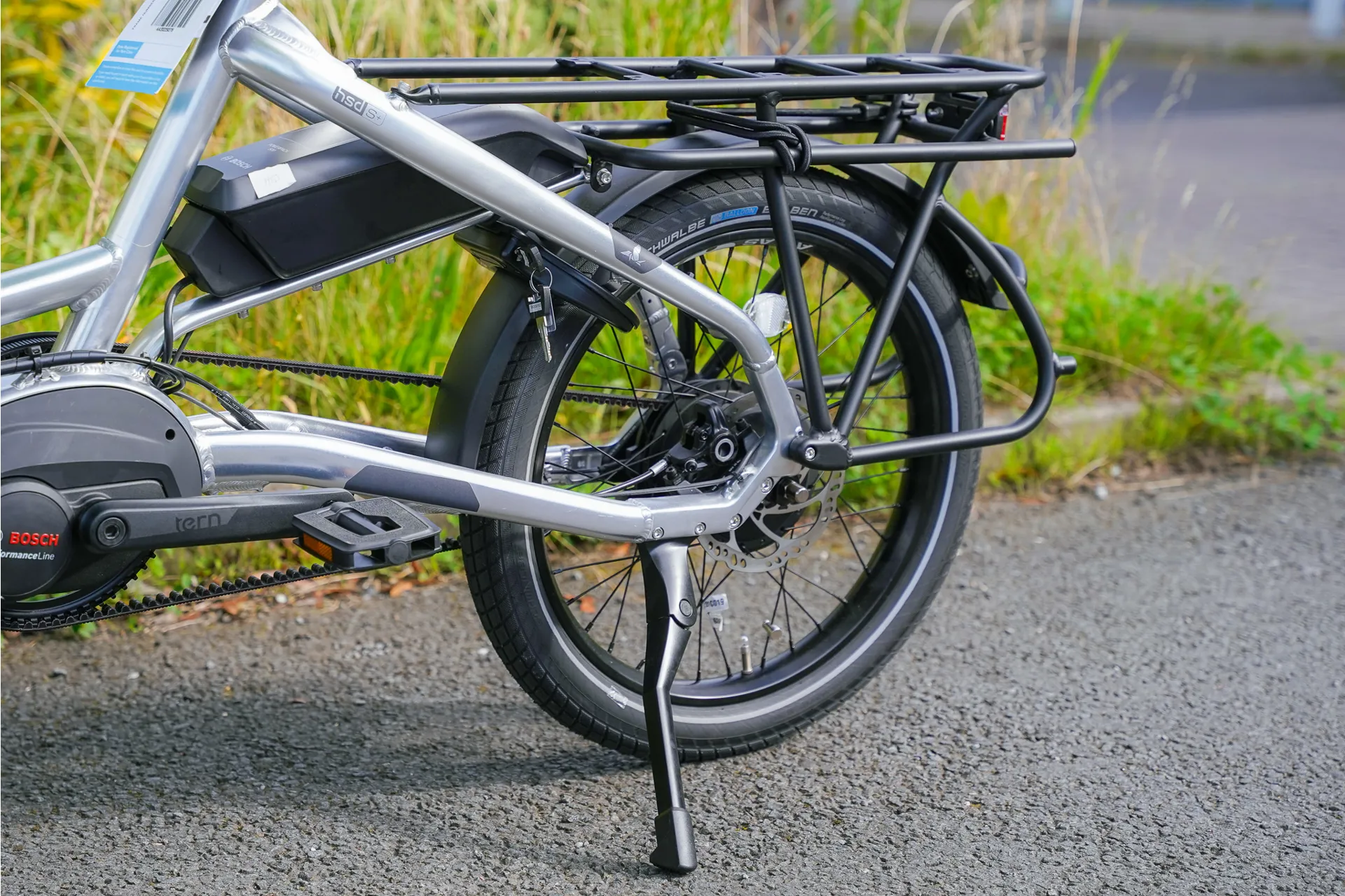

Rack(s):
Atlas H rack, Atlas Rack Mount, 6 point mounting, max load capacity 60 kg (132 lb)
Accessory:
ABUS 5650L, keyed-alike with Bosch battery
