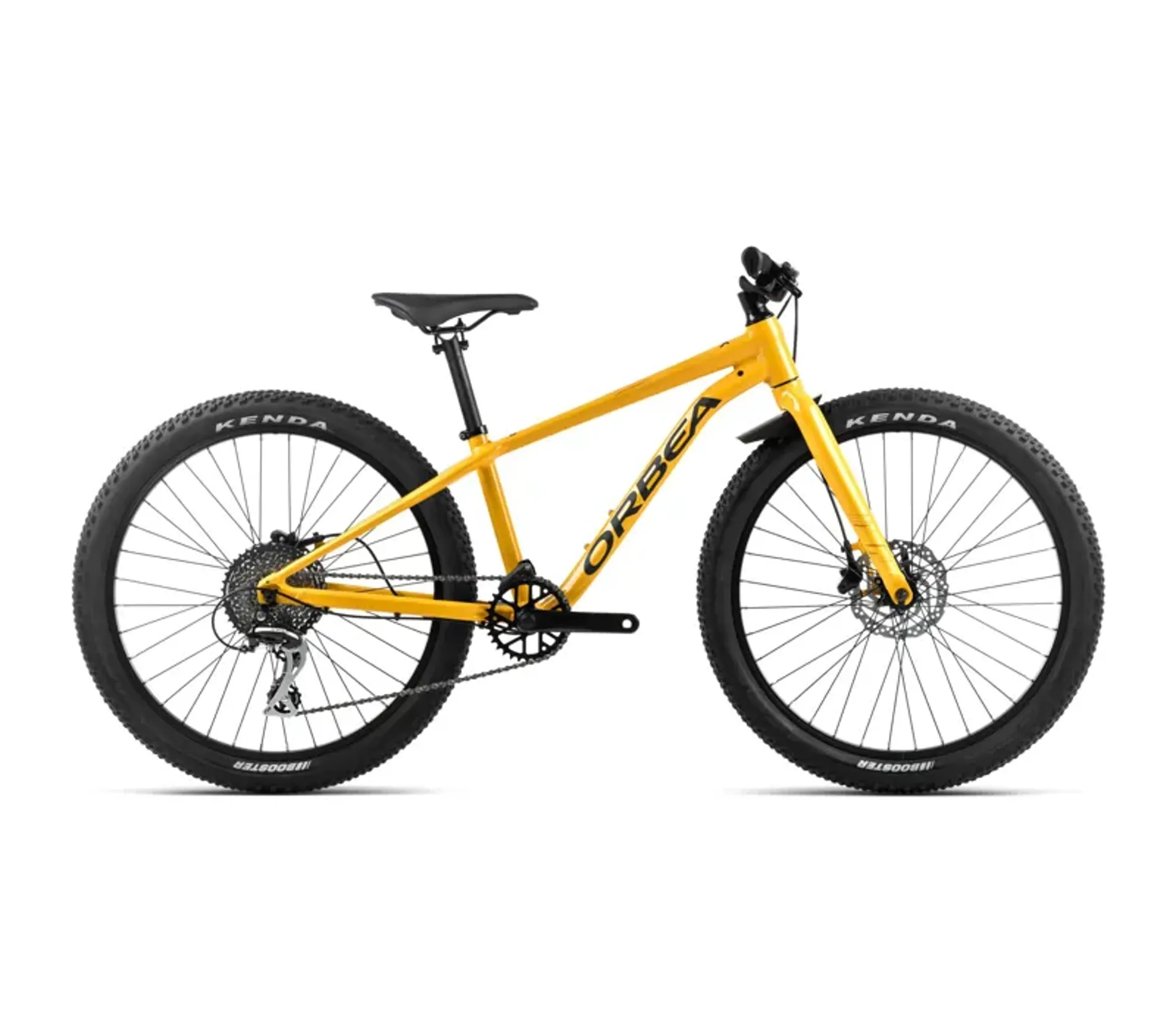

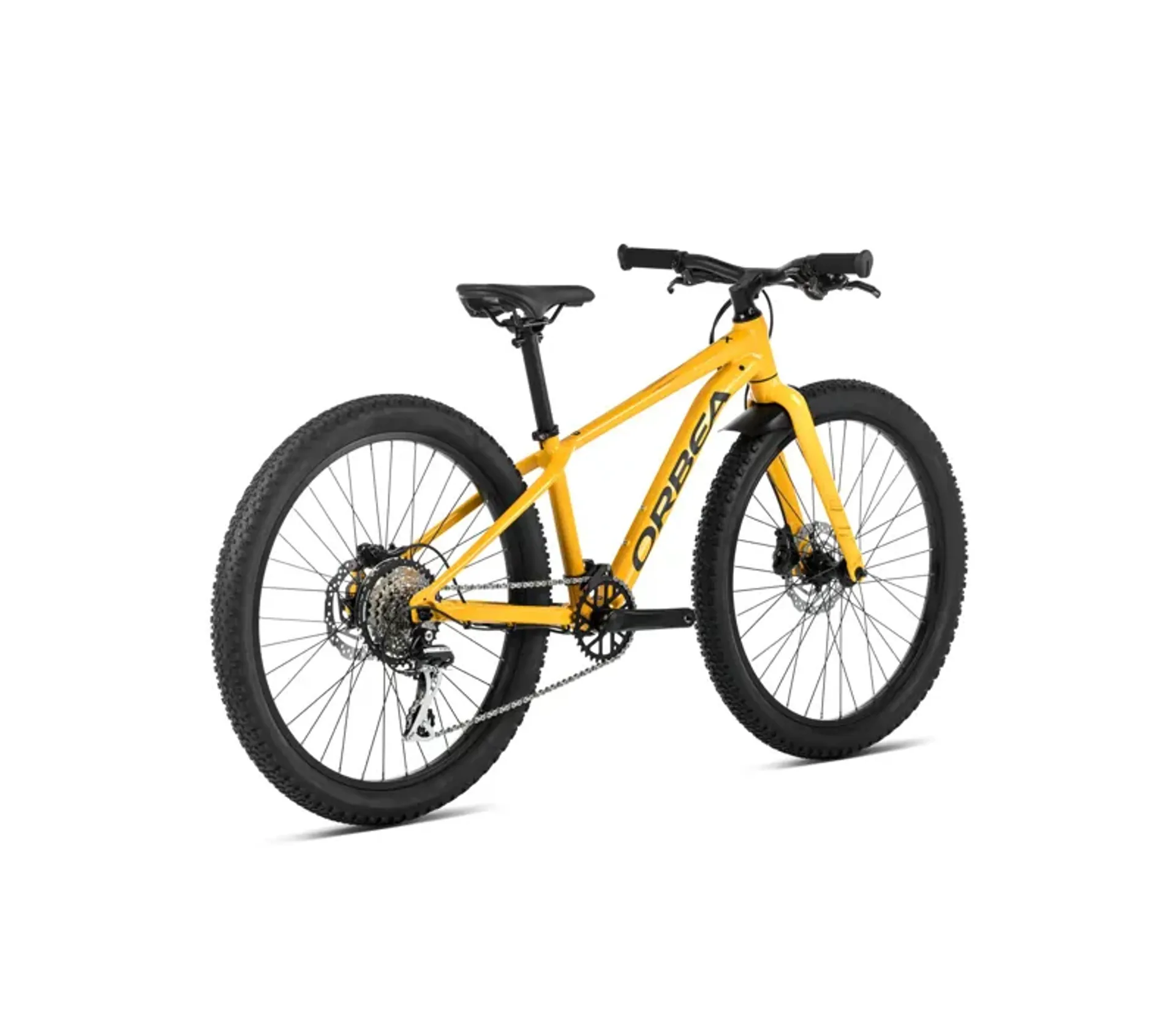

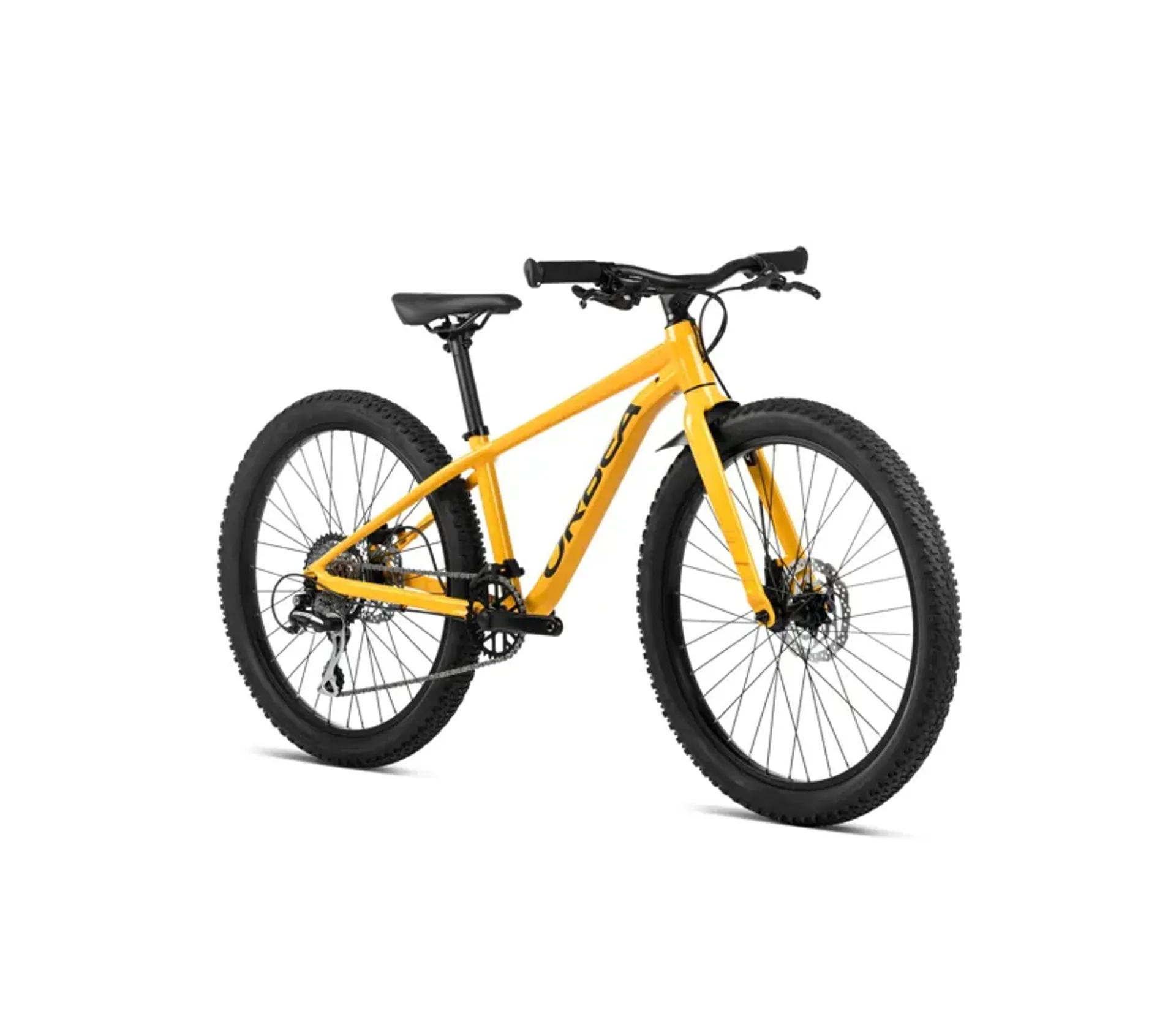

Orbea Mx 24 Team Disc Junior Bike In Mango/Black

Season:2024

Brand:Orbea

Code:R00624KK

Very Serious Fun

Technologically speaking, MX bikes are especially innovative. Below, we’ll explain the technological concepts and details behind Orbea’s MX line. They’re real fun machines.

Features:

  • Hydraulic Brakes - MX only uses hydraulic disc brake systems because of their power, reliability and low maintenance. Better lever feel and increased stopping power will make your rides safer and more fun.
  • Compatibility - MX is compatible with your riding style. The patented Orbea Digit quick-adjust seat post fits perfectly, and mounting points for racks make increasing carrying capacity a breeze.
  • Durable, Solid, Reliable - MX is loaded with features that help ensure longer life: Sealed headset and BB bearings, a replaceable derailleur hanger, painted and assembled in the EU, all with the Orbea Lifetime Warranty.
  • Internal Cable Routing - Internal Cable Routing not only gives a cleaner appearance, it takes advantage of full-length cable housing for great performance with lower maintenance.
  • Orbea Tube Shaping - The AL6061 frame tubing of the MX is carefully shaped and manipulated to put strength where it’s needed without unnecessary weight.



Technical Information
  • Frame
    Orbea MX 24 6061 Aluminum 2024, 135x9 QR, Disc Mount, 27,2 Seat Post, Internal Cable Routing, Central kickstand compatible, removable hanger, Fender and Carrier ready.
  • Fork
    Orbea MX 24 6061 Aluminum 2024, 100x9 QR, Disc, Mini + Long Fender ready
  • Headset
    VP-Z104PD 1-1/8" Semi-Cartridge
  • Crankset
    Extra light 32t, 152mm, w/Chainguard
  • Shifters
    Shimano SL-M315
  • Cassette
    Shimano CS-HG400 11-40t 8-Speed
  • Rear derailleur
    Shimano Acera M3020
  • Chain
    KMC X8
  • Chainguide
    Orbea Junior Chainguide
  • Handlebar
    Orbea Alu integrated cockpit 540mm
  • Brakes
    Clarks M2 Hydraulic Disc w/Kids Lever
  • Wheels
    Alloy, 24", 36H
  • Tyres
    Kenda Booster K1277 24x2.20" 30TPI
  • Pedals
    VP-229 Black with reflectors
  • Mudguard
    Orbea Custom fork
  • Seatpost
    Alloy 27.2x300mm Offset 0
  • Saddle
    Ddk D2405 256x138mm
Sizing Information
Mountain/Leisure Bikes

Rider Height (ft/in)Rider Height (cm)Orbea Mountain Bike Size
4'11" - 5'3"150 - 160 cmXS
5'3" - 5'6"160 - 168 cmS
5'6" - 5'9"168 - 175 cmM
5'9" - 6'0"175 - 183 cmL
6'0" - 6'3"183 - 191 cmXL
6'3" - 6'7"191 - 200 cmXXL

Road/Gravel Bikes

Rider Height (ft/in)Rider Height (cm)Orbea Road Bike Size
4'10" - 5'1"147 - 155 cm47-49cm
5'1" - 5'4"155 - 163 cm49-51cm
5'4" - 5'7"163 - 170 cm51-53cm
5'7" - 5'9"170 - 175 cm53-55cm
5'9" - 6'0"175 - 183 cm55-57cm
6'0" - 6'2"183 - 188 cm57-59cm
6'2" - 6'5"188 - 196 cm59-61cm
6'5" - 6'8"196 - 203 cm61-63cm


Please note that this is a general guideline, and you should always refer to the specific bike's geometry chart to ensure a proper fit. Please visit Orbea for more information
