Fuel EX 9.7 is our most affordable full suspension carbon trail bike.
Fuel EX 9.7 is our most affordable full suspension carbon trail bike.
Trek

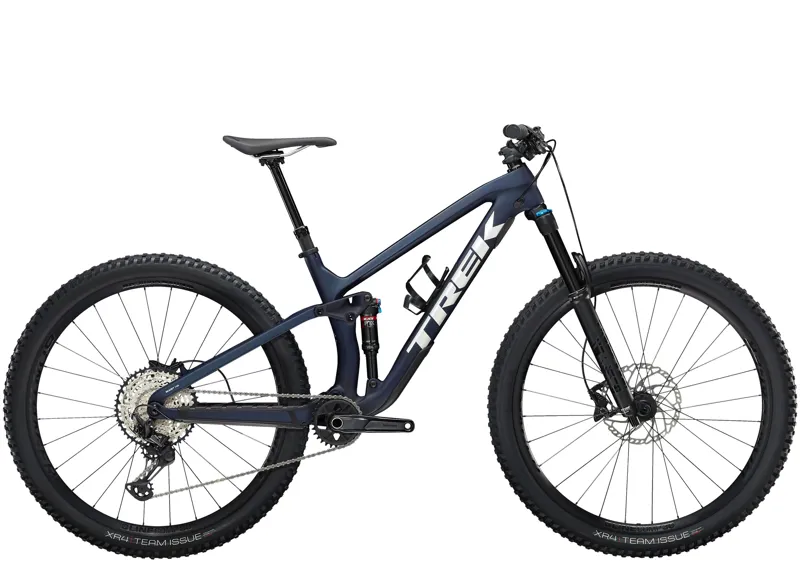

2022 Trek Fuel EX 9.7 Mountain Bike in Carbon Blue Smoke

£3,150.00
Size Guide
Earn
in Customer Rewards when you buy this item today
Sign Up
Sign In
2022 Trek Fuel EX 9.7 Mountain Bike in Raw Carbon
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

2022 Trek Fuel EX 9.7 Mountain Bike in Carbon Blue Smoke

Season:2022

Brand:Trek

Code:35050MATCBNBLUSMK

Fuel EX 9.7 is our most affordable full suspension carbon trail bike.

It pairs a lightweight, smooth-riding frame with a beefy 140 mm FOX 36 fork, Shimano SLX/XT drivetrain and powerful 4-piston brakes for a fast, fun mountain bike that's a ripper now, and ripe for upgrades later.

Features:

  • Don't confuse the Fuel EX 9.7 with other value carbon models on the market – this bike provides an outstanding frame and suspension, with a workhorse drivetrain and wheels
  • A sleek internal storage compartment gives you a handy spot to stow flat fixing supplies or gear
  • Bigger, stiffer 36 mm fork stanchions won't flex, so you can push harder with more precise, confident steering that helps you stay on your line
  • RE:aktiv is smarter, more efficient suspension. It gives you firm pedalling support that instantly gives way over bumps
  • We expanded our size range to ensure a better fit for all riders. And, you get the fastest wheel that fits your frame: XS frames get 27.5" wheels, S frames get to choose between 27.5" or 29" and sizes M to XL get 29" wheels
Technical Information
  • Fork
    Fox Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44 mm offset, Boost110, 15 mm Kabolt axle, 140 mm travel
  • Shock
    Size: XS/S, Fox Performance Float EVOL, 3-position RE:aktiv damper, tuned by Trek Suspension Lab, 210 mm x 52.5 mm
    Size: S/M/ML/L/XL, Fox Performance Float EVOL, 3-position RE:aktiv damper, tuned by Trek Suspension Lab, 210 mm x 55 mm
  • Max compatible fork travel
    150mm (561mm axle-to-crown)
  • Hub front
    Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle
  • Hub rear
    Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru axle
  • Rim
    Bontrager Line Comp 30, Tubeless Ready, 28-hole, Presta valve
  • Tyre
    Size: XS/S, Bontrager XR5 Team Issue, Tubeless Ready, aramid bead, 120 tpi, 27.5x2.50"
    Size: S/M/ML/L/XL, Bontrager XR5 Team Issue, Tubeless Ready, aramid bead, 120 tpi, 29x2.50"
  • Tyre part
    Size: XS/S/M/ML/L/XL, Bontrager TLR sealant, 180 ml/6 oz
    Size: XS/S/M/ML/L/XL, Bontrager TLR valve, 50 mm
  • Rim strip
    Bontrager TLR
  • Max tyre size
    Frame: 29x2.60" Fork: See manufacturer
  • Shifter
    Shimano SLX M7100, 12-speed
  • Rear derailleur
    Shimano XT M8100, long cage, 51T max cog
  • Crank
    Size: XS/S/M/ML/L, Shimano MT611, 30T steel ring, alloy spider, Boost, 170 mm length
    Size: XL, Shimano MT611, 30T steel ring, alloy spider, Boost, 175 mm length
  • Bottom bracket
    Shimano MT500, 92 mm, PressFit
  • Cassette
    Shimano SLX M7100, 10-51, 12-speed
  • Chain
    Shimano SLX M7100, 12-speed
  • Max. chainring size
    34T
  • Saddle
    Bontrager Arvada, hollow chromoly rails, 138 mm width
  • Seatpost
    Size: XS/S, Bontrager Line Dropper, 100 mm travel, internal routing, 31.6 mm, 345 mm length
    Size: M/ML/L/XL, Bontrager Line Dropper, 150mm travel, internal routing, 31.6 mm, 440mm length
  • Handlebar
    Size: XS/S, Bontrager Line, alloy, 35 mm, 27.5 mm rise, 750 mm width
    Size: M/ML/L/XL, Bontrager Line, alloy, 35 mm, 27.5 mm rise, 780 mm width
  • Grips
    Bontrager XR Trail Elite, nylon lock-on
  • Stem
    Size: XS/S, Bontrager Elite, 35 mm, 0-degree, 35 mm length
    Size: M/ML/L/XL, Bontrager Elite, 35 mm, 0-degree, 45 mm length
  • Brake
    Shimano 4-piston hydraulic disc, M6100 lever, M6120 calliper
  • Brake rotor
    Size: XS/S/M/ML/L/XL, Shimano RT66, 6-bolt, 180mm
    Size: M/ML/L/XL, Shimano RT66, 6-bolt, 203 mm
  • Bag
    Bontrager BITS Internal Frame Storage Bag
  • Weight
    M - 30.09 lb / 13.65 kg (with TLR sealant, no tubes)
  • Weight limit
    This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
Sizing Information

Road & Gravel

SizeRider HeightInseam
49156 - 163 cm
(5'1" - 5'4")		74 - 77 cm
(29" - 30")
52163 - 168 cm
(5'4" - 5'6")		76 - 79 cm
(30" - 31")
54168 - 174 cm
(5'6" - 5'9")		78 - 82 cm
(31" - 32")
56174 - 180 cm
(5'9" - 5'11")		81 - 85 cm
(32" - 33")
58180 - 185 cm
(5'11" - 6'1")		84 - 87 cm
(33" - 34")
61185 - 191 cm
(6'1" - 6'3")		86 - 90 cm
(34" - 35")


Mountain & City

SizeRider HeightInseam
XS145 - 155 cm69 - 73 cm
S155 - 165 cm74 - 78 cm
M165 - 176 cm79 - 83 cm
M/L173 - 180 cm81 - 86 cm
L177 - 188 cm84 - 89 cm
XL188 - 195 cm89 - 91 cm

Please note that this is a general guide, and the best way to determine the correct size for a specific model is to consult Trek's website for that particular model. Additionally, factors such as inseam length, riding style, and personal preference may also affect the ideal size for a given rider.
