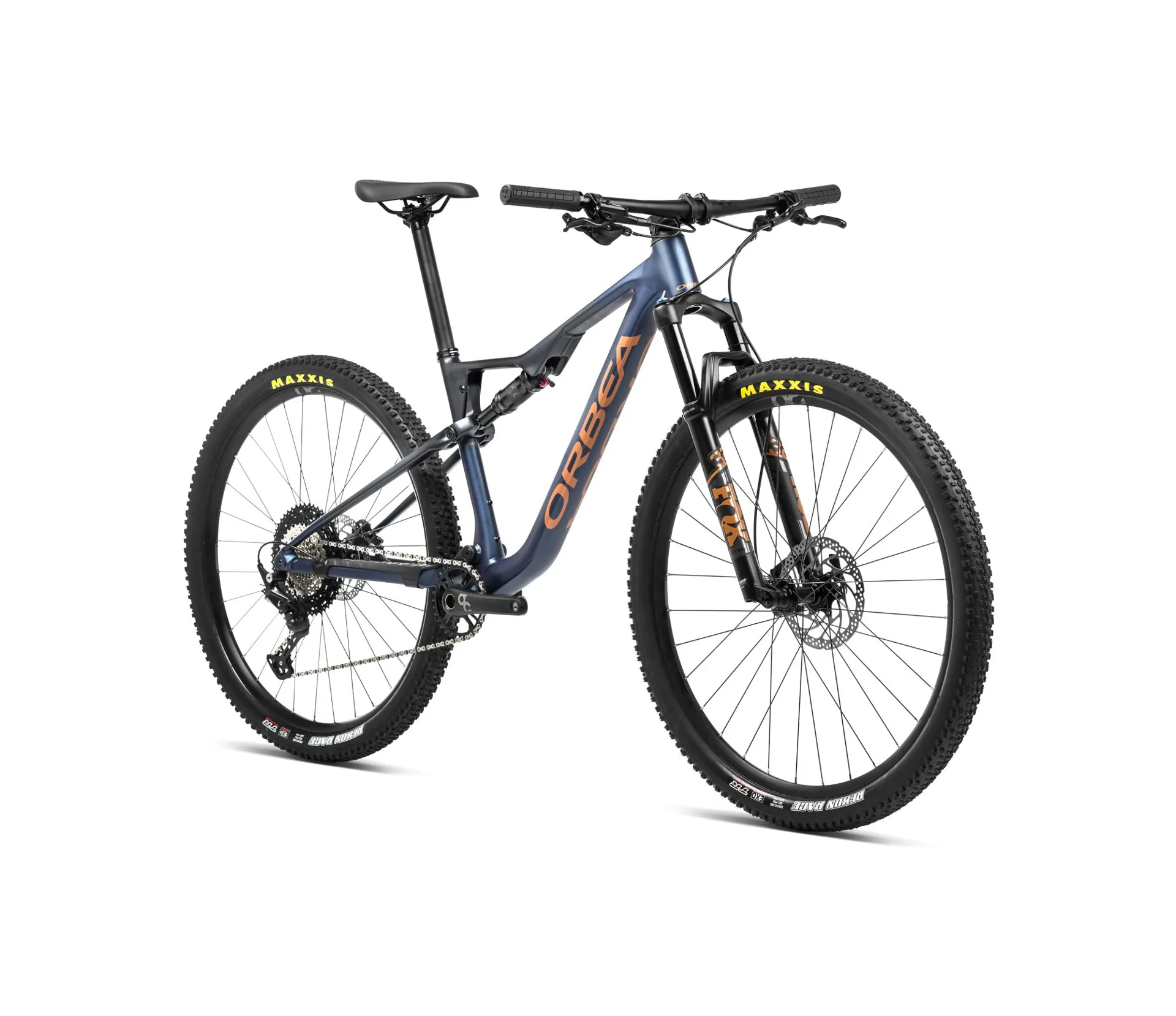

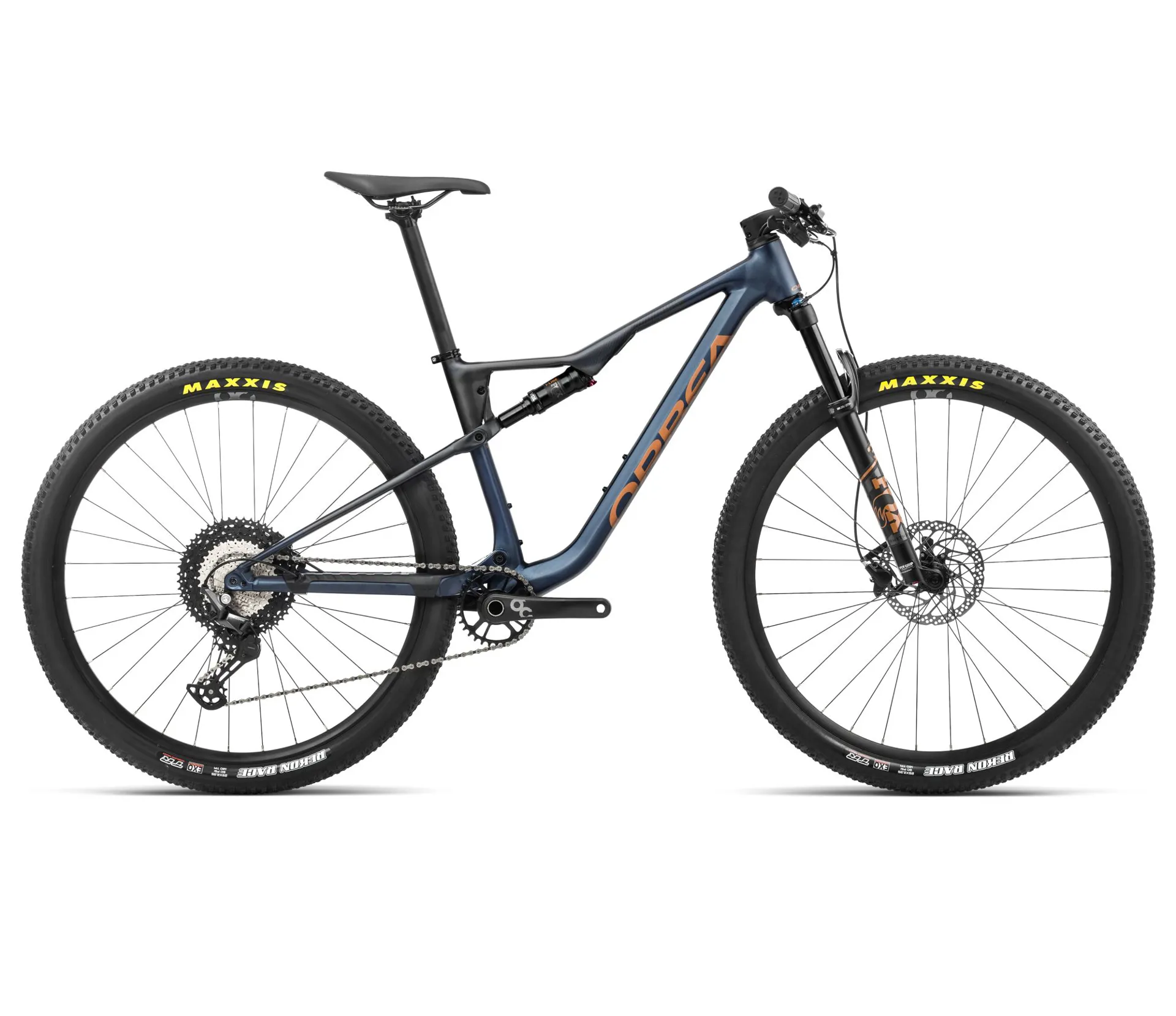

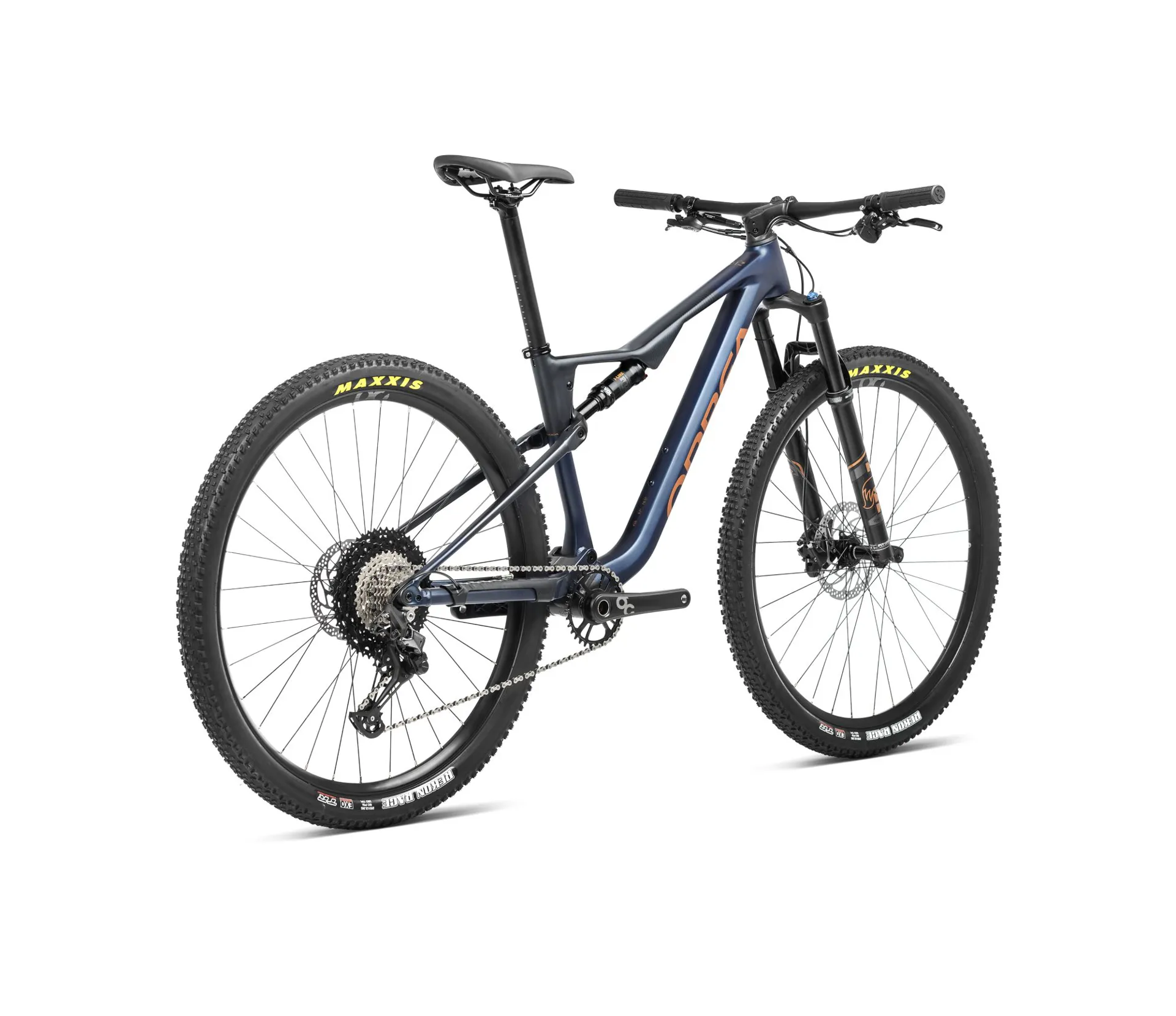

Orbea Oiz H30 Mountain Bike In Moondust Blue/Leo Orange

Season:2024

Brand:Orbea

Code:R230TTCCN3

Built to fly - take control. Don't accept compromises.

Oiz isn't down-country or trail; this is a 120mm XC race machine that looks as good as it rides. Modern geometry and clever suspension, designed from the start around 120mm, bring extra fun to every ride without compromising weight or efficiency. Simply put, oiz is the fastest XC bike to leave our factory in over 180 years.

Features:
  • 120mm of uncompromised travel -Historically choosing between 100mm and 120mm required a compromise; the control of 120mm or the weight and efficiency of 100mm. Oiz refuses to accept that compromise, designed from the start around longer travel but lighter and more efficient than ever.
  • Sic system -Our SIC system routes the cables along the best path through the headset, through internal guides and invisibly from the front to rear triangle via our Cable Pass.
  • I-line -Our patented I-line is simply the sleekest, most integrated shock lock-out on the market.
  • You can't beat simple -Removing anything which is superfluous and only adding features which enhance the ride means that at 1740g Oiz is one of the lightest XC frames out there. Light weight is key for a fast XC bike and relentlessly pursuing the simplest solutions means Oiz doesn’t need compromise anywhere else to achieve this.
Technical Information
  • Frame
    Orbea Oiz Hydro High Polished, Alloy link, Boost, BSA, SIC, UFO, I-Line shock
  • Shock
    Fox Float SL Performance 120mm Remote Push-lock Evol custom tune190x45mm
  • Fork
    Fox 32 Float Rhythm 120 Remote Push to Lock QR15x110
  • Headset
    FSA 1-1/2" Integrated Aluminium Cup
  • Crankset
    Forged alloy, 32t, Boost
  • Shifters
    Shimano Deore M6100
  • Cassette
    Sun Race 11-51t 12-Speed
  • Rear derailleur
    Shimano Deore M6100 SGS Shadow Plus
  • Chain
    KMC X12
  • Handlebar
    Alloy, 31.8mm, Flat, 740mm, Sweep 9 OC MC20 Alu SL, Rise 20, 800mm (bar) + MC20, 0º, 40mm (stem) £ +35 OC MC20 Alu SL, Rise 20, 800mm (bar) + MC20, 0º, 50mm (stem) £ +35
  • Stem
    OC Mountain Performance MP21, -6º
  • Brakes
    Shimano MT201 Hydraulic Disc
  • Brakes Configuration
    Left Road £ +0
  • Wheels
    Alloy, Tubeless, 25c, 32H
  • Tyres
    Maxxis Rekon Race 2.35" 120 TPI Exo TLR
  • Seatpost
    Alloy, 31.6mm, Setback 0 OC Mountain Control MC21, 31.6mm, Dropper, Travel 125mm £ +89 OC Mountain Control MC21, 31.6mm, Dropper, Travel 150mm £ +89
  • Saddle
    Fortune QF-3091 Women Kit: OC Grips 29mm & Selle Italia SLR Boost SuperFlow £ +55
  • Grips
    OC Lock On
  • Remote lockout
    Fox Lockout, 2 Position, Dual
Sizing Information
Mountain/Leisure Bikes

Rider Height (ft/in)Rider Height (cm)Orbea Mountain Bike Size
4'11" - 5'3"150 - 160 cmXS
5'3" - 5'6"160 - 168 cmS
5'6" - 5'9"168 - 175 cmM
5'9" - 6'0"175 - 183 cmL
6'0" - 6'3"183 - 191 cmXL
6'3" - 6'7"191 - 200 cmXXL

Road/Gravel Bikes

Rider Height (ft/in)Rider Height (cm)Orbea Road Bike Size
4'10" - 5'1"147 - 155 cm47-49cm
5'1" - 5'4"155 - 163 cm49-51cm
5'4" - 5'7"163 - 170 cm51-53cm
5'7" - 5'9"170 - 175 cm53-55cm
5'9" - 6'0"175 - 183 cm55-57cm
6'0" - 6'2"183 - 188 cm57-59cm
6'2" - 6'5"188 - 196 cm59-61cm
6'5" - 6'8"196 - 203 cm61-63cm


Please note that this is a general guideline, and you should always refer to the specific bike's geometry chart to ensure a proper fit. Please visit Orbea for more information
