The Many Faces Of Joy -Rider and bike working in perfect synergy, you are breathing hard and your heart is pumping but you are in control and having fun.
The Many Faces Of Joy -Rider and bike working in perfect synergy, you are breathing hard and your heart is pumping but you are in control and having fun.
Orbea

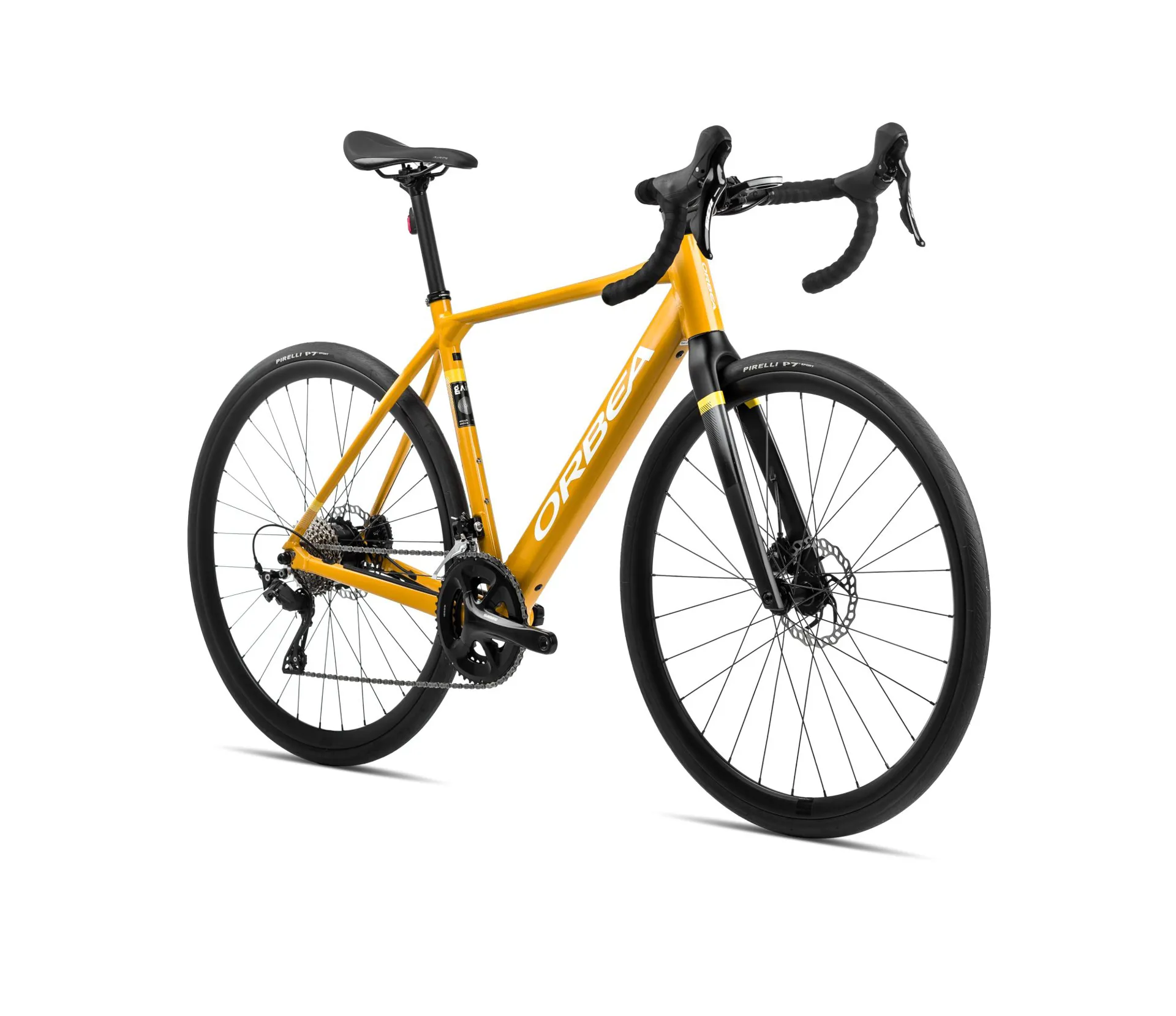

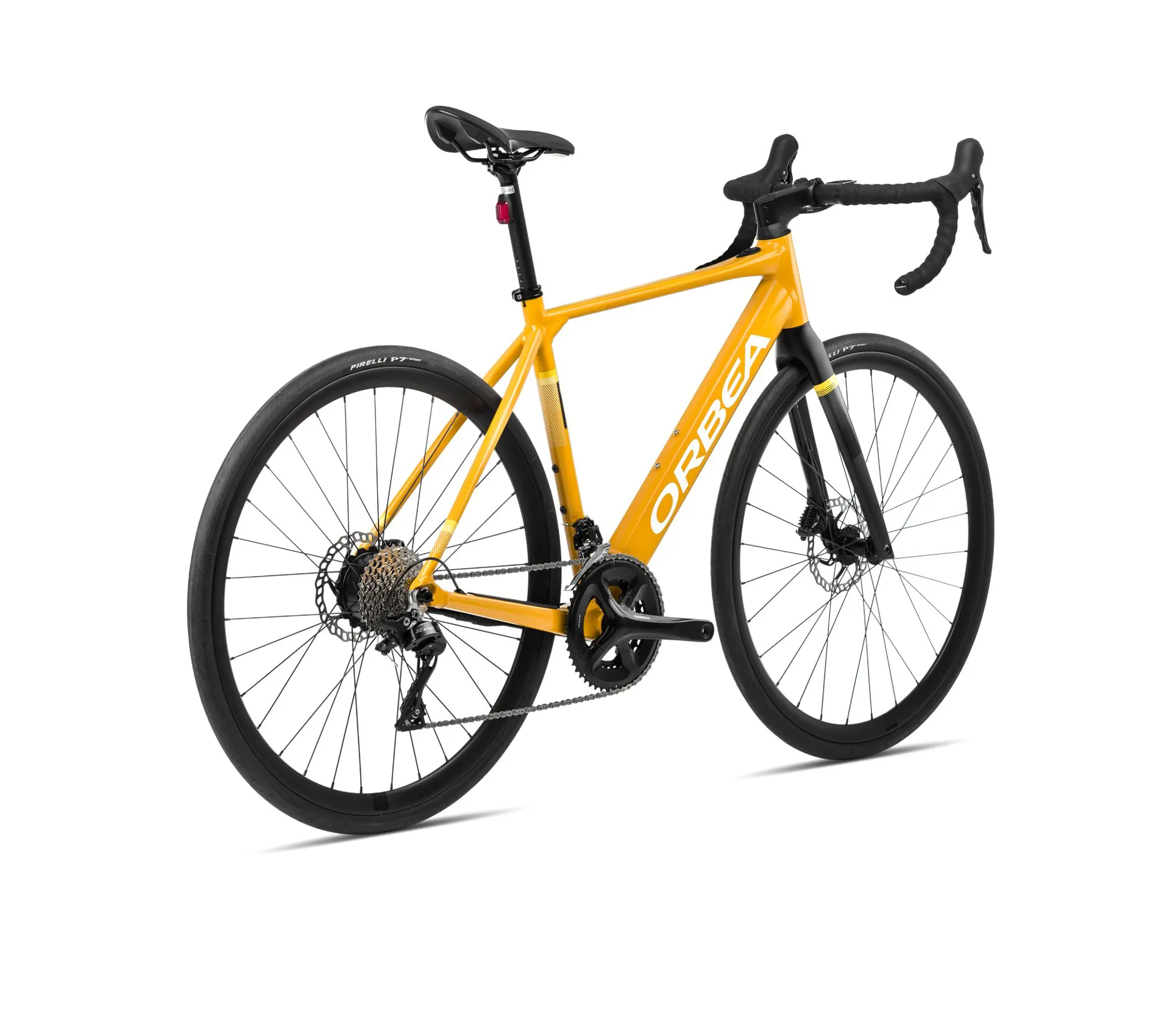

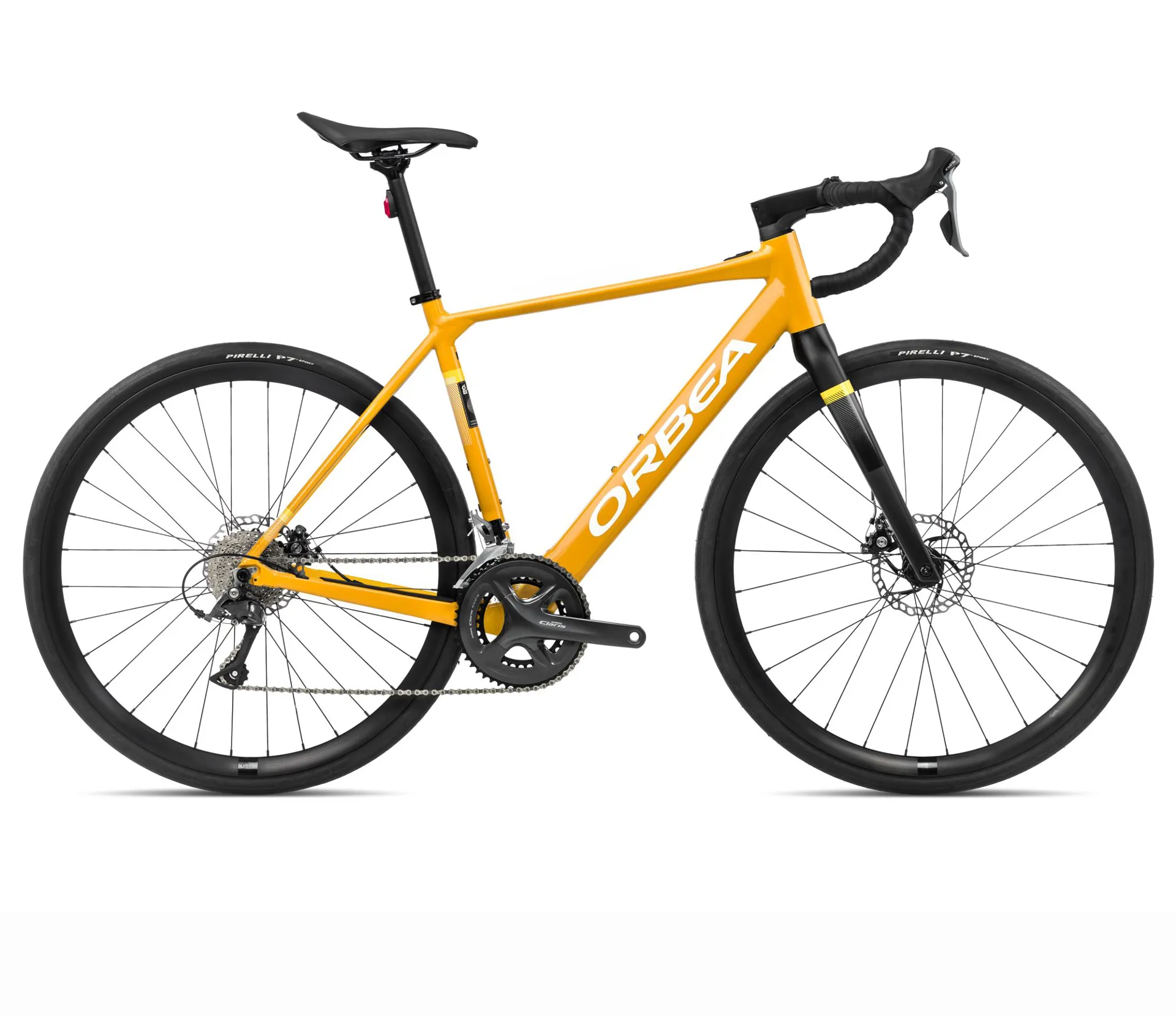

Orbea Gain D50 Electric Road Bike in Mango/Black

£2,899.00
Size Guide
Earn
in Customer Rewards when you buy this item today
Sign Up
Sign In
Orbea Gain D50 Electric Road Bike in Borealis Blue/Black
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Orbea Gain D50 Electric Road Bike in Mango/Black

Season:2024

Brand:Orbea

Code:R311TTCCD1

The Many Faces Of Joy -Rider and bike working in perfect synergy, you are breathing hard and your heart is pumping but you are in control and having fun.

This isn’t about riding faster, it isn’t even about riding further, this is just about having more fun each and every time you ride.

Features:
  • 250Wh Downtube -Gain Aluminium uses the 250Wh downtube design, providing you with enough battery power for most rides. The range extender fits neatly in the frame´s water bottle and offers an additional 208Wh, which means a 70% boost in range.
  • More Capable Than Ever -Clearance for 35mm tyres means that Gain matches your vision of e-road, even if that goes further than tarmac and onto some gravel.
  • ICR Plus -Cables are carefully guided along the best path under the stem and through the head tube, with no rub or rattle, and are optimized for both traditional and electronic shifting systems.
Technical Information
  • Frame
    Orbea Gain Hydro 6061 Hydroform Aluminum 2021, ICR cable routing, Forged BB, safety screw, 135x9 QR, Flat Mount disc mount, 700x40 maximun tyre, 1" 1/2 semiintegrated head set, 41x86,5 Pressfit botton bracket.
  • Fork
    Gain Hydro carbon fork, full carbon, 1-1/8" - 1.5" tappered head tube compatible, 700x40 maximun tyre, flat mount disc mount, Thru axle 12x100mm
  • Headset
    Acros Alloy 1-1/2" Internal Cable Routing
  • Crankset
    Shimano Claris R2000 34x50t
  • Shifters
    Shimano Claris ST-R2000
  • Cassette
    Shimano HG50 11-32t 8-Speed
  • Rear derailleur
    Shimano Claris RD-R2000-GS
  • Front derailleur
    Shimano Claris FD-R2000-F
  • Chain
    KMC X8
  • Handlebar
    OC Road Performance RP31, Reach 80, Drop 125
  • Stem
    OC Road Performance RP21, -6º
  • Brakes
    Shimano BR-RS305 Mechanical Disc
  • Brakes Configuration
    Left Road £ +0
  • Wheels
    Alloy, Tubeless, 700c, 21c, 32H
  • Tyres
    Pirelli P7™ Sport 700x32c
  • Front Wheel Axle
    Orbea Thru Axle 12x100mm M12x2 P1 Hollow
  • Seatpost
    Alloy, 27.2mm, Setback 0, for integrated light
  • Saddle
    Fizik Aliante R5
  • Front light
    Front position light, on display holder, COB Led, On/Off, 60 Lumen, ECE50.
  • Rear light
    Lezyne FENDER STVZO seatpost mounting 11 lumens
  • Handlebar Tape
    Orbea Eva
  • Motor
    Mahle motor hub X35 Plus 25kmh
  • Battery
    Mahle 36V/6.9A 248Wh ANT+
  • RANGE EXTENDER
    N/A Mahle Range Extender 5.8Ax36V = 208Wh (Extra external) £ +509
  • Display
    Mahle Pulsar One monochrome ANT+ LEV
  • CHARGER
    Mahle X35
  • Remote
    Mahle iWoc ONE
Sizing Information
Mountain/Leisure Bikes

Rider Height (ft/in)Rider Height (cm)Orbea Mountain Bike Size
4'11" - 5'3"150 - 160 cmXS
5'3" - 5'6"160 - 168 cmS
5'6" - 5'9"168 - 175 cmM
5'9" - 6'0"175 - 183 cmL
6'0" - 6'3"183 - 191 cmXL
6'3" - 6'7"191 - 200 cmXXL

Road/Gravel Bikes

Rider Height (ft/in)Rider Height (cm)Orbea Road Bike Size
4'10" - 5'1"147 - 155 cm47-49cm
5'1" - 5'4"155 - 163 cm49-51cm
5'4" - 5'7"163 - 170 cm51-53cm
5'7" - 5'9"170 - 175 cm53-55cm
5'9" - 6'0"175 - 183 cm55-57cm
6'0" - 6'2"183 - 188 cm57-59cm
6'2" - 6'5"188 - 196 cm59-61cm
6'5" - 6'8"196 - 203 cm61-63cm


Please note that this is a general guideline, and you should always refer to the specific bike's geometry chart to ensure a proper fit. Please visit Orbea for more information
