Our all-new lightweight eMTB range blends the very best natural mountain bike handling and ride feel with the power and capability of‘full-fat’ eMTBs.
Our all-new lightweight eMTB range blends the very best natural mountain bike handling and ride feel with the power and capability of‘full-fat’ eMTBs.
Whyte Bikes

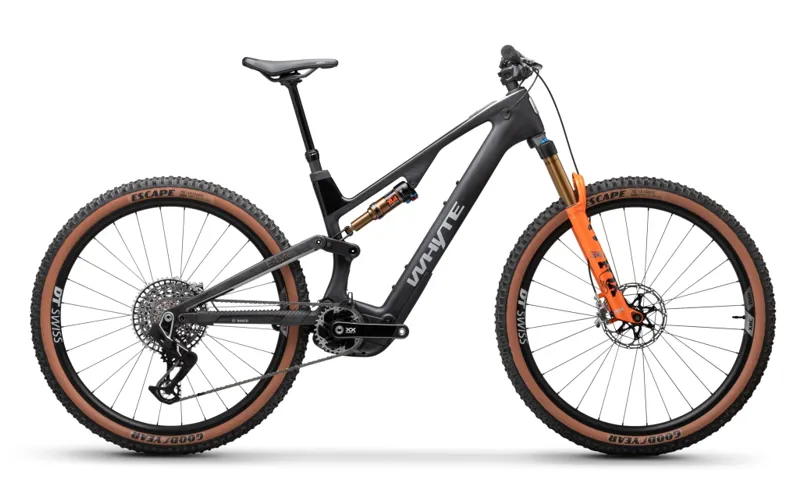

Whyte E-Lyte 140 Works Matt UD Carbon/Black

£10,999.00
Size Guide
Earn
in Customer Rewards when you buy this item today
Sign Up
Sign In
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Whyte E-Lyte 140 Works Matt UD Carbon/Black

Season:2024

Brand:Whyte Bikes

Code:EL140WMATUDCBNGLSBLK

Engineered for riders who want a lighter and more familiar ‘mountain bike’ rideexperience than full-fat eMTBs offer, E-Lyte is designed to deliver zerocompromises wherever your trail takes you:the singletrack, the all-day epic, thehome trail hot laps, the drop-ins, the descents, the tech and the climbs back out.

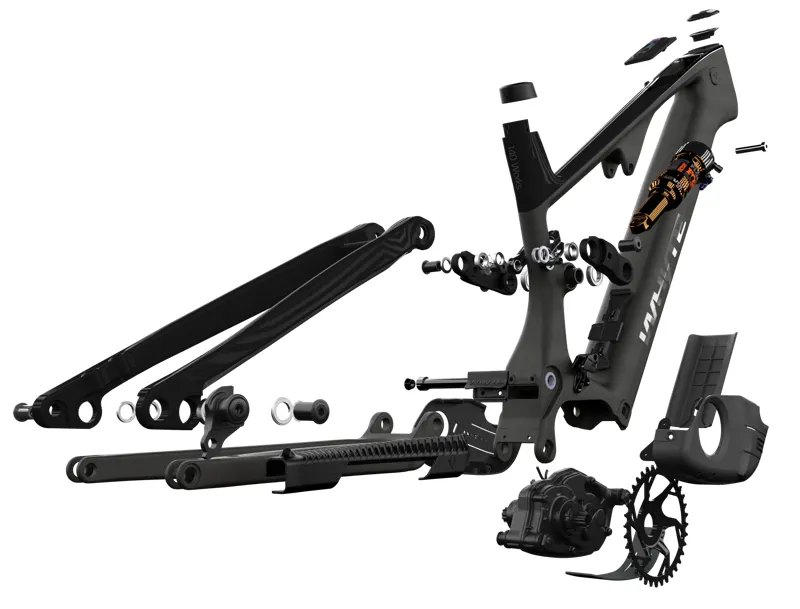

All-new frame

The beating heart ofeveryE-Lyte is an all-new, lightweight yet strong carbonfibre chassis that carefully packages Bosch's light and powerful PerformanceLine SX mid-torque (55Nm), full power (600W) motorand 400Wh internal batteryseamlessly soyoucan fly under the radar as stealthily asyou’llfly down the trails.
Technical Information

Bike motor

Bosch Performance Line SX drive unit, 55Nm maximum torque,

600W peak power. Features four power settings including Tour+,

that allows riders to focus on riding whilst being economic on

power usage, and e-MTB mode which automatically adjusts

eBike display

Bosch System controller mounted in the top tube, paired with

bar-mounted Mini Remote

eBike battery

Bosch Compact PowerTube 400Wh, integrated within the

downtube as the lowest point for stability and control

eBike battery charger

Charger 4A (230V)

Range extender

PowerMore 250Wh

Weight

16.4kg

Colour

Matt uni-directional (UD) carbon with gloss black

Frame

Uni-directional carbon mainframe and seatstays, tapered head tube,

ISCG 2 Guide mounts, internal cable routing, Shape.it Link V2 and 12mm x

148mm Boost dropouts

Fork

Fox Float 34 Factory 29in, 140mm travel, 44mm offset, FIT4 damper,

tapered steerer, 110mm x 15mm Boost E-thru-axle

Rear shock

Fox Float Factory, Evol LV, adjustable rebound and three position

compression

Headset

FSA No.69/SRS 1-1/8in/1.5in ACB - with 15mm top cover - side entry

internal routing

Rear hub

DT SWISS 240, straight pull, six bolt, 12 x 148mm, XD

Front hub

DT SWISS 240, straight pull, six bolt, 15 x 110mm

Spokes

DT SWISS Competition spokes straight pull (SP)

Rims

DT SWISS XRC 1501 Spline

Tyres

Good Year Escape tubeless ready tan wall 29in x 2.4in, 800g front and

rear

Shift levers

SRAM AXS Pod, right, MMX

Front derailleur

N/A

Rear derailleur

SRAM XX SL T-Type AXS

Cassette

SRAM XS 1297, T-Type, 10-52T

Chain

SRAM XX T-Type, 12 speed

Crankset

SRAM XX Isis Carbon, 165mm arms, XX Gen4 Direct Mount 32T, T-Type

Light eMTB

Bottom bracket

N/A

Seatpost

KS Lev Ci, 30.9mm - 175mm drop, with Southpaw remote

Seat

Terra Aidon X1, 145mm, fibre reinforced nylon with Wingflex, Carbon

7x7mm rail

Bar

Race Face NEXT R Carbon, 20mm rise, 35mm bar bore, 800mm wide

Stem

Whyte Trail Full CNC, 40mm Extension, 35 Bar bore

Grips

Whyte Lock-on Enduro

Front brakes

SRAM Level Ultimate Stealth, four Piston, 180mm disc

Rear brakes

SRAM Level Ultimate Stealth, four Piston, 180mm disc

Brake levers

SRAM Level Ultimate Stealth

Pedals

Fibre reinforced composite platform
