Orbea

Orbea 2023 Orca M30 51 Gray

£2,699.00
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

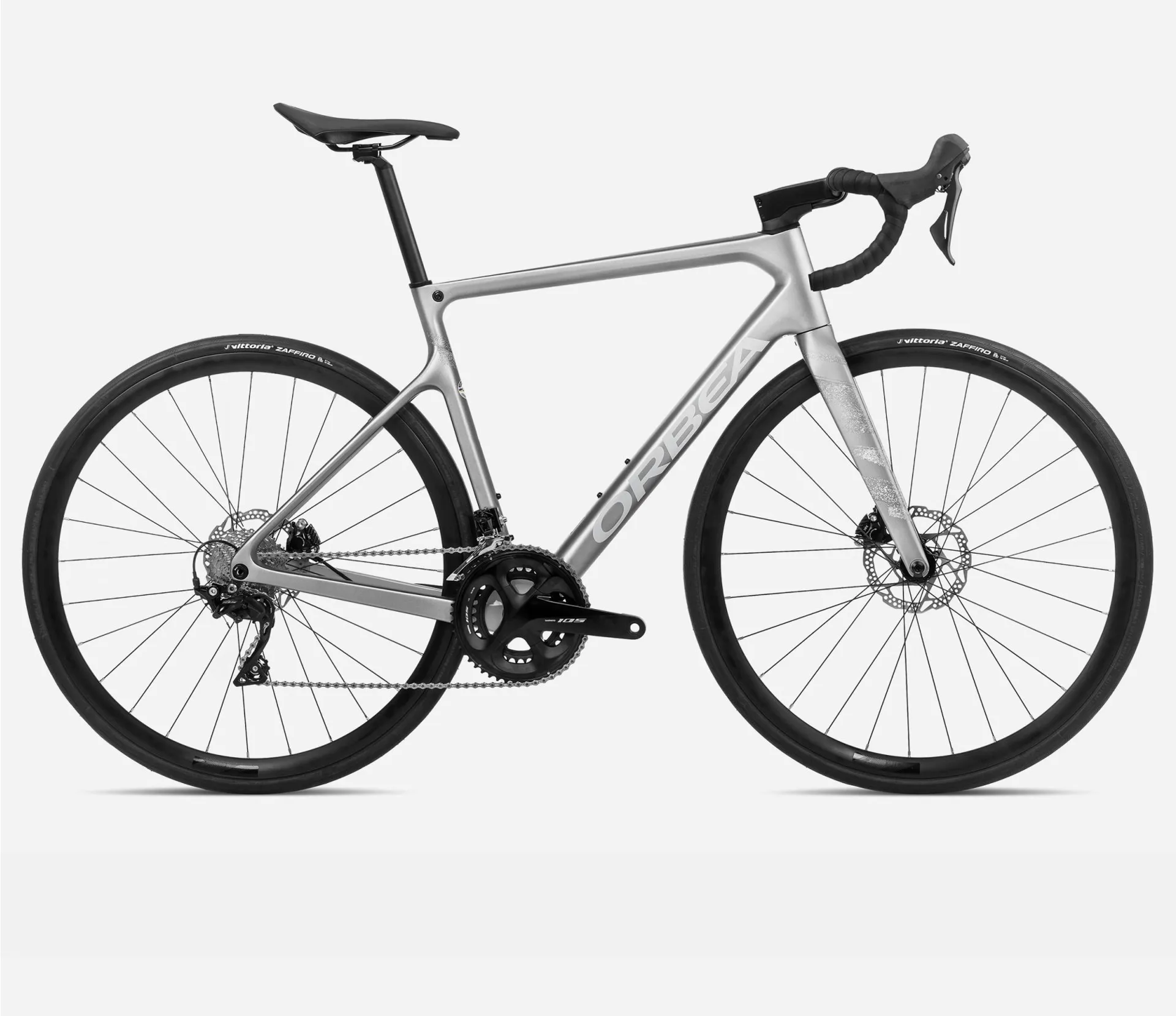

Orbea 2023 Orca M30 51 Gray

Brand:Orbea

Code:N10751A1

SPECIFICATIONS

FRAMES

FRAME

Orbea Gain Carbon OMR monocoque structure, Integrated Seat clamp with STVZO light, ICR cable routing, Thru Axle 12x142mm rear, thread M12x2 P1, Flat Mount disc, 700x35 max tyre, BB386 EVO, Mahle X20 AMC plug.

FORK

Gain OMR carbon fork, 700x35 maximun tyre, flat mount disc mount, 12x100mm Thru Axle

HEADSET

FSA 1-1/2" Integrated Aluminium Cup

DRIVETRAIN

CRANKSET

Shimano 105 R7000 34x50t

SHIFTERS

Shimano ST-7020

CASSETTE

Shimano 105 R7000 11-32t 11-Speed

REAR DERAILLEUR

Shimano 105 R7000 GS

FRONT DERAILLEUR

Shimano 105 R7000

CHAIN

KMC X11

COCKPIT

HANDLEBAR

OC Road Performance RP20 Alu SL, Reach 80, Drop 125

STEM

OC Road Performance RP10, -8º

BRAKES

BRAKES

Shimano R7070 Hydraulic Disc

BRAKES CONFIGURATION

WHEELS

WHEELS

Alloy, Tubeless, 700c, 21c

TYRES

Pirelli P ZERO™ Race TLR 700x30c

FRONT WHEEL AXLE

Orbea Thru Axle 12x100mm M12x2 P1 Lite

REAR WHEEL AXLE

Orbea Thru Axle 12x142mm M12x2 P1 Lite

COMPONENTS

SEATPOST

Carbon, 27.2mm, Setback 20

SADDLE

Fizik Aliante R5

ACCESSORIES

FRONT LIGHT

Rear position light, on saddle clamp, COB Led, On/Off, 12 Lumen. STVZO

HANDLEBAR TAPE

Orbea Anti-Slippery/Shock Proof

EBIKE

MOTOR

Mahle motor hub X20, ALC

BATTERY

Mahle iX350 36V 353Wh

RANGE EXTENDER

N/A

DISPLAY

Mahle Pulsar One monochrome ANT+ LEV

CHARGER

Mahle Active Charger up to 4A

REMOTE

Mahle ONE Head Unit (BT/ANT+)

Sizing Information
Mountain/Leisure Bikes

Rider Height (ft/in)Rider Height (cm)Orbea Mountain Bike Size
4'11" - 5'3"150 - 160 cmXS
5'3" - 5'6"160 - 168 cmS
5'6" - 5'9"168 - 175 cmM
5'9" - 6'0"175 - 183 cmL
6'0" - 6'3"183 - 191 cmXL
6'3" - 6'7"191 - 200 cmXXL

Road/Gravel Bikes

Rider Height (ft/in)Rider Height (cm)Orbea Road Bike Size
4'10" - 5'1"147 - 155 cm47-49cm
5'1" - 5'4"155 - 163 cm49-51cm
5'4" - 5'7"163 - 170 cm51-53cm
5'7" - 5'9"170 - 175 cm53-55cm
5'9" - 6'0"175 - 183 cm55-57cm
6'0" - 6'2"183 - 188 cm57-59cm
6'2" - 6'5"188 - 196 cm59-61cm
6'5" - 6'8"196 - 203 cm61-63cm


Please note that this is a general guideline, and you should always refer to the specific bike's geometry chart to ensure a proper fit. Please visit Orbea for more information
