The Checkpoint SL 6 AXS Gen 3 is a carbon gravel bike ready for far-out adventures.
The Checkpoint SL 6 AXS Gen 3 is a carbon gravel bike ready for far-out adventures.
Trek

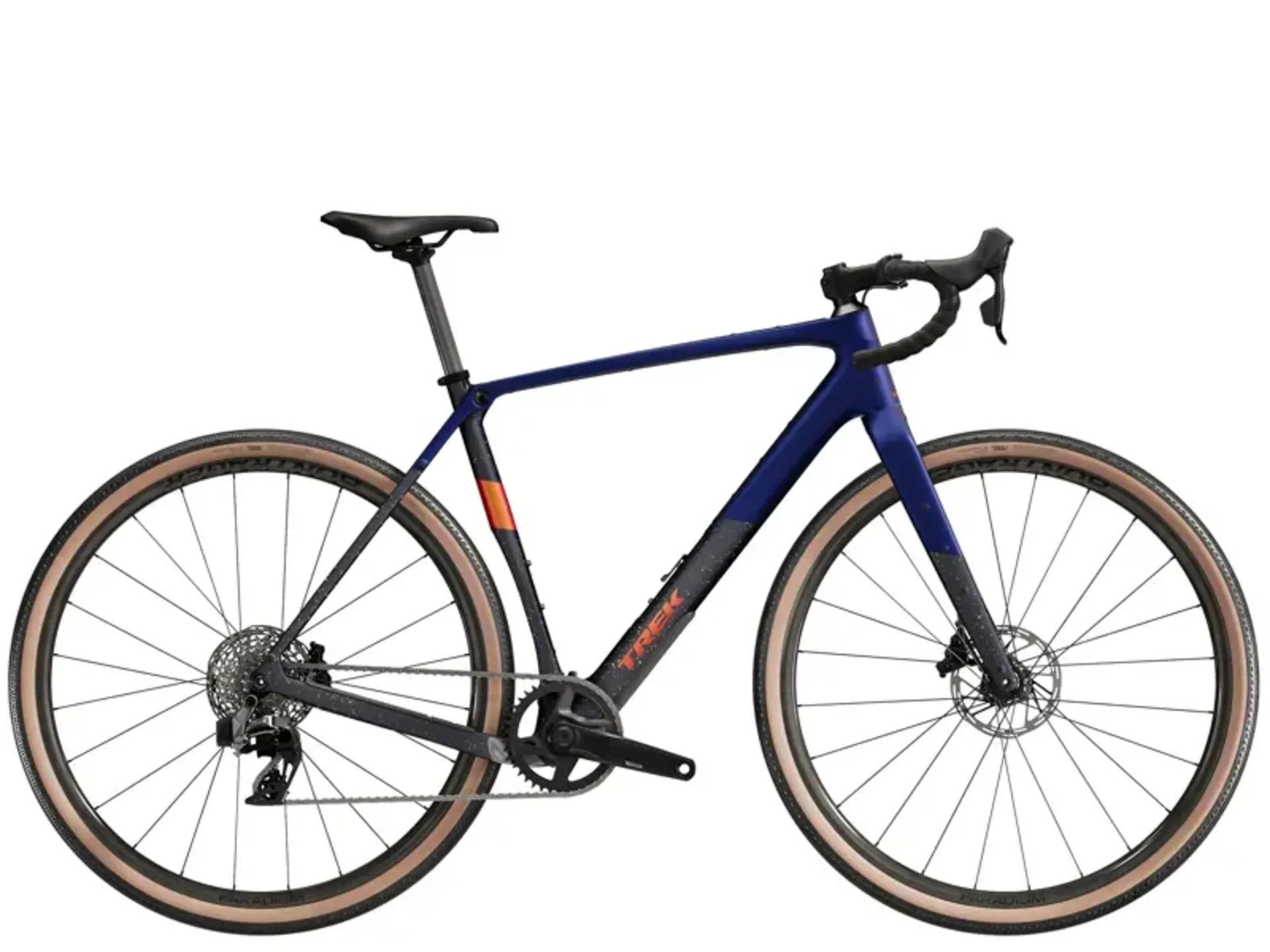

Trek Checkpoint SL 6 AXS Gen 3 Gravel Bike In Matte Hex Blue/Marianas Blue

£4,500.00
Size Guide
Earn
in Customer Rewards when you buy this item today
Sign Up
Sign In
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Trek Checkpoint SL 6 AXS Gen 3 Gravel Bike In Matte Hex Blue/Marianas Blue

Season:2025

Brand:Trek

Code:47072BLU

The Checkpoint SL 6 AXS Gen 3 is a carbon gravel bike ready for far-out adventures.

Its lightweight carbon frame is designed with comfort-focused Gravel Endurance geometry, clearance for beefy 50 mm tyres (as measured), and plenty of frame and fork mounts. Plus, IsoSpeed frame technology helps to soak up jarring road vibrations, helping you float over chatter and potholes. It's ready to cut loose with a SRAM Rival AXS wireless 12-speed group set.

It's right for you if...You're itching for adventure and want a bike that's up for taking the road less travelled. You want IsoSpeed comfort tech to help you stay comfortable on the hardest miles, an upgraded drivetrain that can hang tough when the gravel gets deep and plenty of mounts to carry your gear and hydration packs.

The tech you get - A 500 Series OCLV Carbon frame with a carbon fork, internal downtube storage, frame and fork mounts, and clearance for 50 mm tyres (as measured). A 12-speed 1x SRAM Rival AXS fully wireless drivetrain, hydraulic disc brakes, carbon seat post and Tubeless Ready Bontrager Paradigm Comp wheels with 42 mm tyres.

The final word - The Checkpoint SL 6 AXS Gen 3 is made to explore, with the chatter-smoothing benefit of IsoSpeed, a lightweight carbon frame, and upgraded components where they matter most, like the SRAM Rival AXS wireless shifting.

Features:
  • The Checkpoint's Gravel Endurance geometry lets you sit higher up and features a shorter reach to keep you comfortable on all-day gravel adventures, light singletrack, bike-packing trips and more
  • Road-smoothing IsoSpeed comfort tech soaks up vibration from rough surfaces to keep you feeling fresher for longer
  • You get crisp and clean shifts from the upgraded SRAM Rival AXS wireless electronic 12-speed drivetrain
  • Clearance for 50 mm tyres (as measured) means that you can add extra traction and cushion for rowdy gravel roads
  • You can haul it all with large internal frame storage and mounts galore on the frame and fork for hydration, front and rear racks, mudguards and Adventure Bags that were designed to perfectly fit the Checkpoint
  • Dropper post and suspension fork compatible (except size XS)
Technical Information
  • Frame
    500 Series OCLV Carbon, IsoSpeed, downtube storage door, hidden mudguard mounts, rack mounts, integrated frame bag mounts, invisible cable routing, T47, flat-mount disc, integrated chainkeeper, removable FD hanger, UDH, 142x12 mm chamfered thru axle
  • Fork
    Checkpoint full carbon, tapered carbon steerer, fender mounts, triple rack mounts, flat mount disc, 12x100mm chamfered thru axle
  • Max Compatible Fork Travel
    40 mm (XS: compatible with rigid fork only)
  • Wheel Front
    Bontrager Paradigm Comp 25, Tubeless Ready, 25 mm rim width, 100x12 mm thru axle
  • Wheel Rear
    Bontrager Paradigm Comp 25, Tubeless Ready, 25mm rim width, SRAM XD-R 12-speed freehub, 142x12 thru axle
  • Skewer Front
    Bontrager Switch chamfered thru axle, removable lever
  • Skewer Rear
    Bontrager Switch chamfered thru axle, removable lever
  • Tyre
    Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42 mm
  • Tyre Part
    Bontrager TLR sealant, 180 ml/6 oz
  • Rim Strip
    Bontrager TLR
  • Max Tyre Size
    50 mm without mudguards, 42 mm with mudguards
  • Battery
    SRAM eTap battery pack (with charger)
  • Shifter
    Size: XS, S, M, ML, L, XL - SRAM Rival eTap AXS, 12-speed
  • Rear Derailleur
    SRAM Rival XPLR eTap AXS, 44T max cog
  • Crank
    Size: XS, S - SRAM Rival, 40T, DUB Wide, 165 mm length; Size: M - SRAM Rival, 40T, DUB Wide, 170 mm length; Size: ML, L - SRAM Rival, 40T, DUB Wide, 172.5 mm length; Size: XL - SRAM Rival, 40T, DUB Wide, 175 mm length
  • Bottom Bracket
    SRAM DUB, T47 threaded, internal bearing
  • Cassette
    SRAM XG-1251, 10-44, 12-speed
  • Max Chainring Size
    1x:44 2x: 46/30
  • Saddle
    Size: XS, S - Verse Short Comp, steel rails, 155 mm width; Size: M, ML, L, XL - Verse Short Comp, steel rails, 145 mm width
  • Seatpost
    Bontrager carbon, 27.2 mm, 8 mm offset, 330 mm length
  • Handlebar
    Size: XS - Bontrager Elite Gravel, alloy, 40 cm width; Size: S, M - Bontrager Elite Gravel, alloy, 42 cm width; Size: ML, L - Bontrager Elite Gravel, alloy, 44 cm width; Size: XL - Bontrager Elite Gravel, alloy, 46 cm width
  • Handlebar Tape
    Bontrager Supertack Perf tape
  • Stem
    Size: XS - Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 60 mm length; Size: S - Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length; Size: M, ML - Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length; Size: L - Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length; Size: XL - Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length
  • Brake Rotor
    SRAM Paceline, rounded, CentreLock, 160 mm
  • Rotor Size
    Max brake rotor sizes: 180mm front and rear
  • Weight
    ML - 9.40 kg / 20.73 lbs (with TLR sealant, no tubes)
  • Weight Limit
    This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb)
Sizing Information

Road & Gravel

SizeRider HeightInseam
49156 - 163 cm
(5'1" - 5'4")		74 - 77 cm
(29" - 30")
52163 - 168 cm
(5'4" - 5'6")		76 - 79 cm
(30" - 31")
54168 - 174 cm
(5'6" - 5'9")		78 - 82 cm
(31" - 32")
56174 - 180 cm
(5'9" - 5'11")		81 - 85 cm
(32" - 33")
58180 - 185 cm
(5'11" - 6'1")		84 - 87 cm
(33" - 34")
61185 - 191 cm
(6'1" - 6'3")		86 - 90 cm
(34" - 35")


Mountain & City

SizeRider HeightInseam
XS145 - 155 cm69 - 73 cm
S155 - 165 cm74 - 78 cm
M165 - 176 cm79 - 83 cm
M/L173 - 180 cm81 - 86 cm
L177 - 188 cm84 - 89 cm
XL188 - 195 cm89 - 91 cm

Please note that this is a general guide, and the best way to determine the correct size for a specific model is to consult Trek's website for that particular model. Additionally, factors such as inseam length, riding style, and personal preference may also affect the ideal size for a given rider.
