The Checkpoint SL 7 AXS pairs a light OCLV Carbon gravel frame with IsoSpeed and high-tech parts picked for performance and incredible ride quality on the toughest and roughest gravel adventures.
The Checkpoint SL 7 AXS pairs a light OCLV Carbon gravel frame with IsoSpeed and high-tech parts picked for performance and incredible ride quality on the toughest and roughest gravel adventures.
Trek

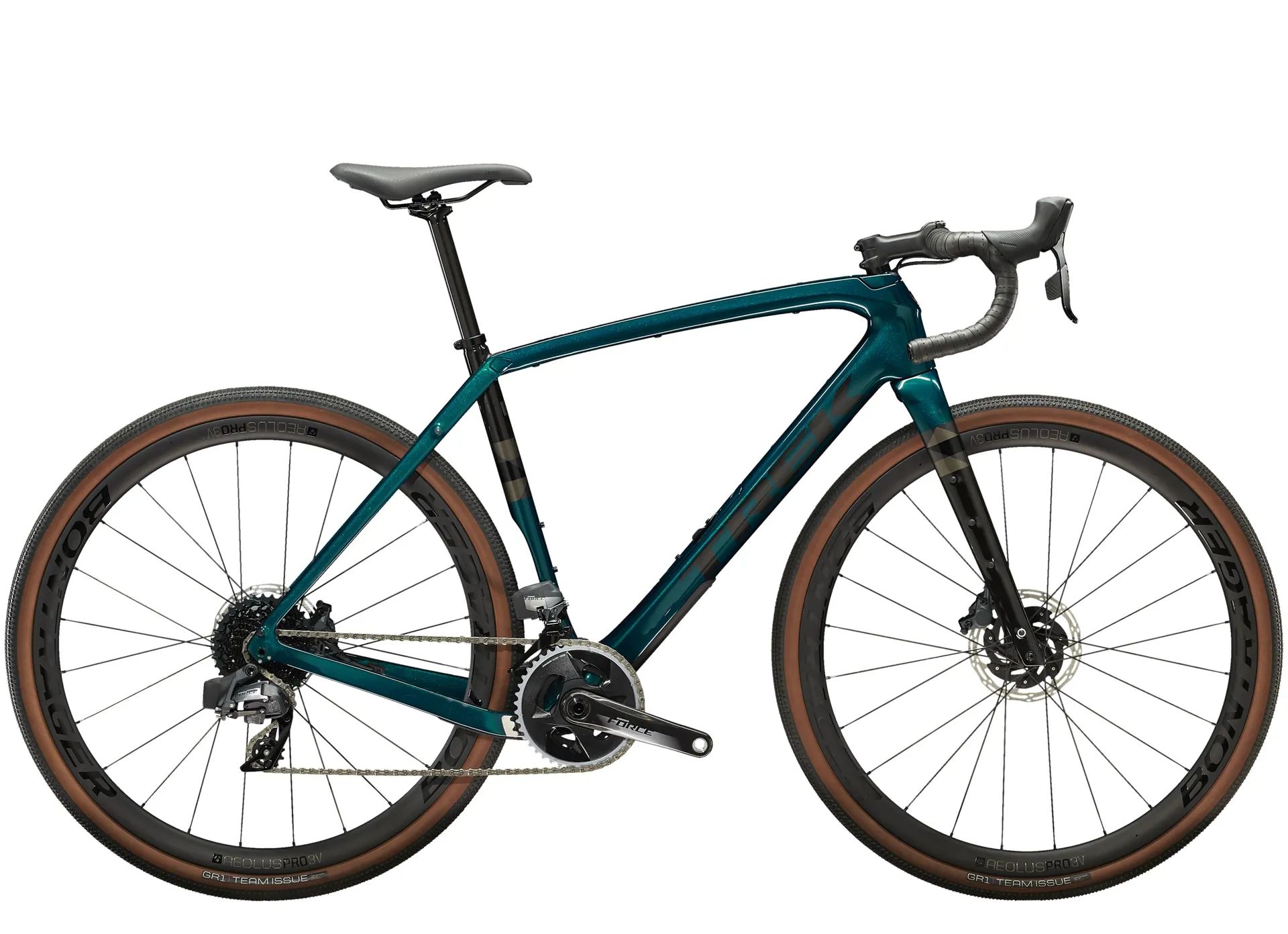

Trek Checkpoint SL 7 eTap Gravel Bike in Aquatic/CarbonSmoke

£6,400.00
Size Guide
Earn
in Customer Rewards when you buy this item today
Sign Up
Sign In
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Trek Checkpoint SL 7 eTap Gravel Bike in Aquatic/CarbonSmoke

Season:2023

Brand:Trek

Code:35171AQUticCBNSMK

The Checkpoint SL 7 AXS pairs a light OCLV Carbon gravel frame with IsoSpeed and high-tech parts picked for performance and incredible ride quality on the toughest and roughest gravel adventures.

A nimble-yet-stable progressive geometry, a smart and smooth SRAM wireless electronic drivetrain, carbon wheels and internal storage give you the comfort and capability you need to tackle your next all-road excursion.
Technical Information
  • Frame
    500 Series OCLV Carbon, IsoSpeed, internal cable routing, downtube storage door, 3S chain keeper, T47 BB, rack and mudguard mounts, integrated frame bag mounts, flat-mount disc, dropper post compatible, 142x12 mm thru axle
  • Fork
    Trek Checkpoint, full carbon, tapered carbon steerer, rack mounts, fender mounts, flat mount disc, 12x100mm thru axle
  • Frame fit
    Gravel
  • Wheels
  • Skewer front
    Bontrager Switch thru axle, removable lever
  • Skewer rear
    Bontrager Switch thru-axle, removable lever
  • Tyre
    Bontrager GR1 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 120 tpi, 700 x 40 c
  • Tyre part
    Bontrager TLR sealant, 180 ml/6 oz
  • Rim strip
    Bontrager TLR
  • Max tyre size
    700x45c / 650x2.1" Bontrager tyres
  • Drivetrain
  • Shifter
    SRAM Force eTap AXS, 12-speed
  • Front derailleur
    SRAM Force eTap AXS, wide, braze-on
  • Rear derailleur
    SRAM Force eTap AXS, 36T max cog
  • Crank
  • Size:49
    SRAM Force, 43/30, DUB Wide, 165 mm length
  • Size:52
    SRAM Force, 43/30, DUB Wide, 170 mm length
  • Size:54, 56
    SRAM Force, 43/30, DUB Wide, 172.5 mm length
  • Size:58, 61
    SRAM Force, 43/30, DUB Wide, 175 mm length
  • Bottom bracket
    SRAM DUB, T47 threaded, internal bearing
  • Cassette
    SRAM XG-1270, 10-36, 12-speed
  • Chain
    SRAM Force, 12 speed
  • Max. chainring size
    1x: 46T, 2x: 50/37 (Shimano: 36)
  • Saddle
  • Size:49, 52
    Bontrager Verse Comp, steel rails, 155 mm width
  • Size:54, 56, 58, 61
    Bontrager Verse Comp, steel rails, 145 mm width
  • Seatpost
    Bontrager carbon, 27.2 mm, 8 mm offset, 330 mm length
  • Handlebar
  • Size:49
    Bontrager Elite Gravel, 38 cm width
  • Size:52
    Bontrager Elite Gravel, 40 cm width
  • Size:54, 56
    Bontrager Elite Gravel, 42 cm width
  • Size:58, 61
    Bontrager Elite Gravel, 44 cm width
  • Handlebar tape
    Bontrager Supertack Perf tape
  • Stem
  • Size:49
    Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length
  • Size:52, 54
    Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length
  • Size:56, 58
    Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length
  • Size:61
    Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length
  • Brake
    SRAM Force eTap AXS hydraulic disc
  • Brake rotor
    SRAM CentreLine X, CentreLock, round edge, 160 mm
  • Rotor size
    Max brake rotor sizes: 160 mm front and rear
  • Battery
    SRAM eTap battery pack (with charger)
  • Bag
    Bontrager BITS Internal Frame Storage Bag
Sizing Information

Road & Gravel

SizeRider HeightInseam
49156 - 163 cm
(5'1" - 5'4")		74 - 77 cm
(29" - 30")
52163 - 168 cm
(5'4" - 5'6")		76 - 79 cm
(30" - 31")
54168 - 174 cm
(5'6" - 5'9")		78 - 82 cm
(31" - 32")
56174 - 180 cm
(5'9" - 5'11")		81 - 85 cm
(32" - 33")
58180 - 185 cm
(5'11" - 6'1")		84 - 87 cm
(33" - 34")
61185 - 191 cm
(6'1" - 6'3")		86 - 90 cm
(34" - 35")


Mountain & City

SizeRider HeightInseam
XS145 - 155 cm69 - 73 cm
S155 - 165 cm74 - 78 cm
M165 - 176 cm79 - 83 cm
M/L173 - 180 cm81 - 86 cm
L177 - 188 cm84 - 89 cm
XL188 - 195 cm89 - 91 cm

Please note that this is a general guide, and the best way to determine the correct size for a specific model is to consult Trek's website for that particular model. Additionally, factors such as inseam length, riding style, and personal preference may also affect the ideal size for a given rider.
