The Madone SLR 6 AXS is a road-racing machine that's serious about speed from the second it hits the tarmac.
The Madone SLR 6 AXS is a road-racing machine that's serious about speed from the second it hits the tarmac.
Trek

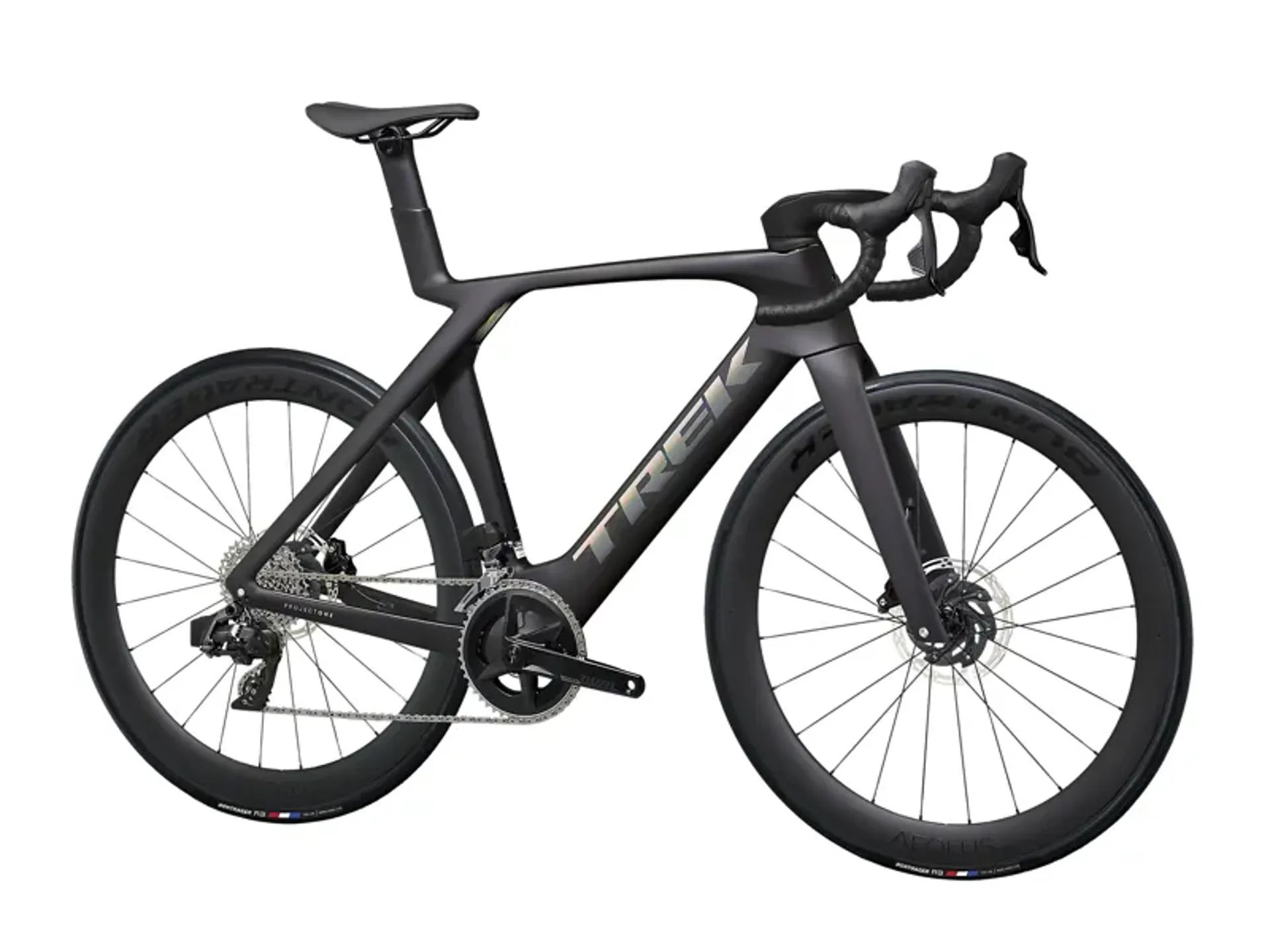

Trek Madone SLR 6 AXS Road Race Bike in Smoke

£8,250.00
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Trek Madone SLR 6 AXS Road Race Bike in Smoke

Season:2024

Brand:Trek

Code:37417BLK

The Madone SLR 6 AXS is a road-racing machine that's serious about speed from the second it hits the tarmac.

An 800 Series OCLV Carbon frame with exclusive IsoFlow technology adds an aerodynamic advantage, cuts weight and smooths the road ahead. The Madone SLR is built from the ground up with workhorse components, like SRAM's wireless electronic Rival AXS 12-speed drivetrain with power meter, that know how to handle race day and won't quit when the going gets tough. Plus, it features upgrades that matter, like carbon wheels with a deep rim for even more aerodynamic gains.

Features:

  • The Madone SLR Gen 7 builds on our legacy of superbikes, taking aero race to the next level with game changing IsoFlow technology that shaves weight and absorbs chatter, next-gen Kammtail aerodynamic shapes and a flared handlebar/stem that reduces cockpit and rider drag
  • IsoFlow technology helps the seat mast and saddle flex for a more comfortable ride while also improving frame aerodynamics and shaving weight
  • SRAM's wireless Rival AXS electronic group set keeps your cockpit clean and minimalist and offers precise shifting
  • The 800 Series OCLV Carbon is intensely light and meticulously crafted for next-level performance
  • A new ergonomic and aerodynamic cockpit put in a faster, more comfortable, position for power
Technical Information
  • *Frame:
    • Size: 47, 50, 52, 54, 56, 58, 60, 62 - 800 Series OCLV Carbon, KVF (Ka mmtail Virtual Foil) tube shape, IsoFlow seat tube, invisible cable routing, 3S aero chain keeper, T47 BB, flat mount disc, 142x12 mm thru axle
    • Size: 47, 50, 52, 54, 56, 58, 60, 62 - 800 Series OCLV Carbon, KVF (Kammtail Virtual Foil) tube shape, IsoFlow seat tube, invisible cable routing, 3S aero chain keeper, T47 BB, flat mount disc, 142x12mm thru axle
  • *Fork:
    • Size: 47, 50, 52, 54, 56, 58, 60, 62 - Madone KVF full carbon, tapered carbon steerer, internal brake routing, flat mount disc, carbon dropouts, 12x100mm thru axle
    • Size: 47, 50, 52, 54, 56, 58, 60, 62 - Madone KVF full carbon, tapered carbon steerer, internal brake routing, flat mount disc, carbon dropouts, 12x100 mm thru axle
  • Frame fit: H1.5 Race
  • Weight:56 - 8.03 kg / 17.71 lb
  • Weight limit:This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).
  • Battery:SRAM eTap battery pack (with charger)
  • Shifter:SRAM Rival eTap AXS, 12-speed
  • Front derailleur:SRAM Rival eTap AXS, braze-on
  • Rear derailleur:SRAM Rival eTap AXS
  • *Crank:
    • Size: 47 - SRAM Rival AXS w/ power meter, 48/35, DUB, 165 mm length
    • Size: 50, 52 - SRAM Rival AXS w/ power meter, 48/35, DUB, 170 mm length
    • Size: 54, 56, 58 - SRAM Rival AXS w/ power meter, 48/35, DUB, 172.5 mm length
    • Size: 60, 62 - SRAM Rival AXS w/ power meter, 48/35, DUB, 175 mm length
  • Bottom bracket:SRAM DUB, T47 threaded, internal bearing
  • Cassette:SRAM XG-1250, 10-36, 12 speed
  • Chain:SRAM Rival, 12-speed
  • Max. chainring size:1x: 50T, 2x: 54/40
  • Wheel front:Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, 100x12 mm thru axle
  • Wheel rear:Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, SRAM XD-R driver, 142x12 mm thru axle
  • Skewer front:Bontrager Switch thru-axle, removable lever
  • Skewer rear:Bontrager Switch thru-axle, removable lever
  • Tyre:Bontrager R3 Hard-Case Lite, aramid bead, 120 tpi, 700x25 mm
  • Max tyre size:32mm (as measured, see manual for details)
  • *Saddle:
    • Size: 47, 50, 52 - Bontrager Aeolus P2 Elite, 155 mm width
    • Size: 54, 56, 58, 60, 62 - Bontrager Aeolus Elite, austenite rails, 145 mm width
  • *Seatpost:
    • Size: 47, 50, 52, 54 - Madone aero carbon internal seat mast cap, integrated light mount, 0 mm offset, short length
    • Size: 47, 50, 52, 54 - Madone aero carbon seat post, integrated light mount, 0 mm offset, long length
    • Size: 56, 58, 60, 62 - Madone aero carbon internal seat mast cap, integrated light mount, 0 mm offset, tall length
    • Size: 56, 58, 60, 62 - Madone aero carbon seatpost, integrated light mount, 0mm offset, long length
  • *Handlebar/stem (integrated):
    • Size: 47 - Madone Integrated handlebar/stem, OCLV Carbon, 380 mm width, 80 mm stem length
    • Size: 50, 52 - Madone Integrated handlebar/stem, OCLV Carbon, 400 mm width, 90 mm stem length
    • Size: 54 - Madone Integrated handlebar/stem, OCLV Carbon, 420 mm width, 90 mm stem length
    • Size: 56, 58 - Madone Integrated handlebar/stem, OCLV Carbon, 420 mm width, 100 mm stem length
    • Size: 60, 62 - Madone Integrated handlebar/stem, OCLV Carbon, 440 mm width, 110 mm stem length
  • Handlebar tape:Bontrager Supertack Perf tape
  • Brake:SRAM Rival hydraulic disc
  • Brake rotor:SRAM Paceline, rounded, CentreLock, 160 mm
  • Rotor size:Max brake rotor sizes: 160mm front & rear
Sizing Information

Road & Gravel

SizeRider HeightInseam
49156 - 163 cm
(5'1" - 5'4")
74 - 77 cm
(29" - 30")
52163 - 168 cm
(5'4" - 5'6")
76 - 79 cm
(30" - 31")
54168 - 174 cm
(5'6" - 5'9")
78 - 82 cm
(31" - 32")
56174 - 180 cm
(5'9" - 5'11")
81 - 85 cm
(32" - 33")
58180 - 185 cm
(5'11" - 6'1")
84 - 87 cm
(33" - 34")
61185 - 191 cm
(6'1" - 6'3")
86 - 90 cm
(34" - 35")


Mountain & City

SizeRider HeightInseam
XS145 - 155 cm69 - 73 cm
S155 - 165 cm74 - 78 cm
M165 - 176 cm79 - 83 cm
M/L173 - 180 cm81 - 86 cm
L177 - 188 cm84 - 89 cm
XL188 - 195 cm89 - 91 cm

Please note that this is a general guide, and the best way to determine the correct size for a specific model is to consult Trek's website for that particular model. Additionally, factors such as inseam length, riding style, and personal preference may also affect the ideal size for a given rider.
