The Madone SLR 9 is ultralight, insanely fast and super smooth. It's the ride you reach for on race day when every watt counts and your eyes are on the top step.
The Madone SLR 9 is ultralight, insanely fast and super smooth. It's the ride you reach for on race day when every watt counts and your eyes are on the top step.
Trek

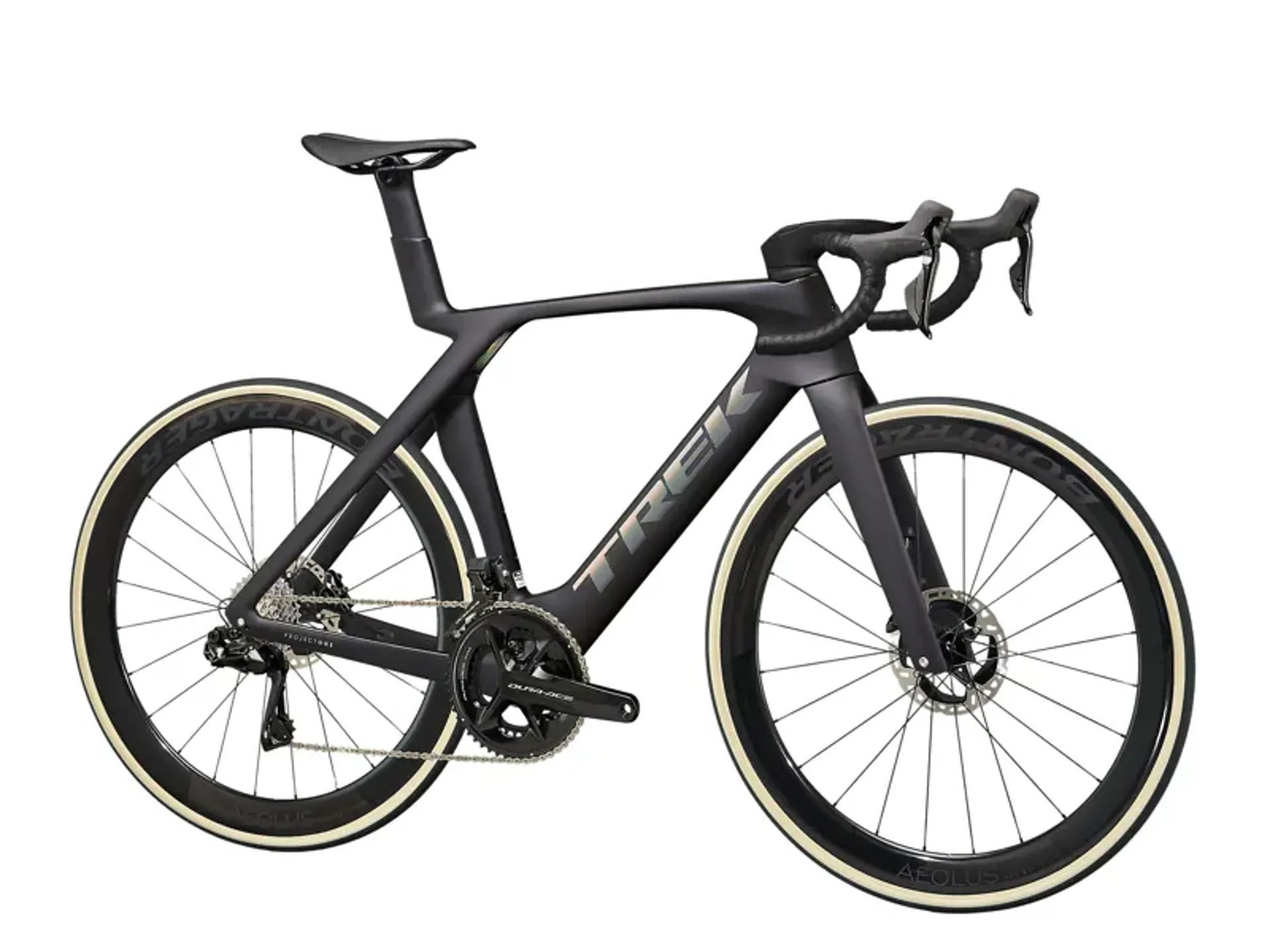

Trek Madone SLR 9 Road Race Bike in Smoke

£13,625.00
Size Guide
Earn
in Customer Rewards when you buy this item today
Sign Up
Sign In
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Trek Madone SLR 9 Road Race Bike in Smoke

Season:2024

Brand:Trek

Code:37419BLK

The Madone SLR 9 is ultralight, insanely fast and super smooth. It's the ride you reach for on race day when every watt counts and your eyes are on the top step.

This road race bike is built with an 800 Series OCLV Carbon frame and new IsoFlow technology that adds an aerodynamic advantage, cuts weight and smooths the road ahead. It's built from the ground up with cream-of-the-crop components for a smooth and light ride, like Shimano's wireless electronic Dura-Ace Di2 drivetrain and carbon wheels with a deep rim for even more aerodynamic gains.

Features:
  • All-new aerodynamic Kammtail frame shapes, bar/stem design and rider position make the Madone SLR our fastest road race bike yet.
  • Never-before-seen IsoFlow technology specifically designed for the seventh-generation Madone SLR shaves weight, improves aerodynamics and smooths your ride.
  • Super lightweight 800 Series OCLV Carbon and a new lightweight design make this our lightest Madone disc ever.
  • A newly optimised bar/stem that’s 3 cm narrower in the hoods than the drops offers a more comfortable and ergonomic riding position for faster racing, improved aerodynamics and ultimate control. Use the same bar/stem size you’re used to – if you normally ride with a 42 cm bar/stem, opt for 42 cm in the drops and 39 cm in the hoods.
  • Every element of this bike is part of a greater whole. It has invisible cable routing, aero cockpit, hidden seat mast and more.
Technical Information
  • Frame
    800 Series OCLV Carbon, KVF (Kammtail Virtual Foil) tube shape, IsoFlow seat tube, invisible cable routing, 3S aero chain keeper, T47 BB, flat mount disc, 142x12mm thru axle
  • Fork
    Madone KVF full carbon, tapered carbon steerer, internal brake routing, flat mount disc, carbon dropouts, 12x100mm thru axle
  • Frame fit
    H1.5 Race
  • Wheel front
    Bontrager Aeolus RSL 51, OCLV Carbon, Tubeless Ready, 51mm rim depth, 100x12mm thru axle
  • Wheel rear
    Bontrager Aeolus RSL 51, OCLV Carbon, Tubeless Ready, 51mm rim depth, Shimano 11/12 freehub, 142x12mm thru axle
  • Skewer rear
    Bontrager Switch thru-axle, removable lever
  • Tyre
    Bontrager R4 320, 700x25c
  • Max tyre size
    28c
  • Shifter
    Shimano Dura-Ace R9270 Di2, 12-speed
  • Front derailleur
    Shimano Dura-Ace R9250 Di2, braze-on, down swing
  • Rear derailleur
    Shimano Dura-Ace R9250 Di2
  • Size:47
    Shimano Dura-Ace R9200, 52/36, 165mm length
  • Size:50, 52
    Shimano Dura-Ace R9200, 52/36, 170mm length
  • Size:54, 56, 58
    Shimano Dura-Ace R9200, 52/36, 172.5mm length
  • Size:60, 62
    Shimano Dura-Ace R9200, 52/36, 175mm length
  • Bottom bracket
    Praxis, T47 threaded, internal bearing
  • Cassette
    Shimano Dura-Ace R9200, 11-30, 12-speed
  • Chain
    Shimano Dura-Ace/XTR M9100, 12-speed
  • Max. chainring size
    1x: 50T, 2x: 54/40
  • Size:47, 50, 52
    Aeolus P2 RSL, carbon rails, 155mm width
  • Size:54, 56, 58, 60, 62
    Aeolus P2 RSL, carbon rails, 145mm width
  • Size:47, 50, 52, 54
    Madone aero carbon internal seat mast cap, integrated light mount, 0 mm offset, short length
  • Size:56, 58, 60, 62
    Madone aero carbon internal seat mast cap, integrated light mount, 0 mm offset, tall length
  • Size:47
    Madone Integrated handlebar/stem, OCLV Carbon, 380mm width, 80mm stem length
  • Size:50, 52
    Madone Integrated handlebar/stem, OCLV Carbon, 400mm width, 90mm stem length
  • Size:54
    Madone Integrated handlebar/stem, OCLV Carbon, 420mm width, 90mm stem length
  • Size:56, 58
    Madone Integrated handlebar/stem, OCLV Carbon, 420mm width, 100mm stem length
  • Size:60, 62
    Madone Integrated handlebar/stem, OCLV Carbon, 440mm width, 110mm stem length
  • Handlebar tape
    Bontrager Supertack Perf tape
  • Brake rotor
    Shimano MT900, CentreLock, 160 mm
  • Rotor size
    Max brake rotor sizes: 160 mm front and rear
  • Charger
    Charging cable included
  • Weight
    54 - 7.10 kg / 15.66 lbs
  • Weight limit
    This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).
Sizing Information

Road & Gravel

SizeRider HeightInseam
49156 - 163 cm
(5'1" - 5'4")		74 - 77 cm
(29" - 30")
52163 - 168 cm
(5'4" - 5'6")		76 - 79 cm
(30" - 31")
54168 - 174 cm
(5'6" - 5'9")		78 - 82 cm
(31" - 32")
56174 - 180 cm
(5'9" - 5'11")		81 - 85 cm
(32" - 33")
58180 - 185 cm
(5'11" - 6'1")		84 - 87 cm
(33" - 34")
61185 - 191 cm
(6'1" - 6'3")		86 - 90 cm
(34" - 35")


Mountain & City

SizeRider HeightInseam
XS145 - 155 cm69 - 73 cm
S155 - 165 cm74 - 78 cm
M165 - 176 cm79 - 83 cm
M/L173 - 180 cm81 - 86 cm
L177 - 188 cm84 - 89 cm
XL188 - 195 cm89 - 91 cm

Please note that this is a general guide, and the best way to determine the correct size for a specific model is to consult Trek's website for that particular model. Additionally, factors such as inseam length, riding style, and personal preference may also affect the ideal size for a given rider.
